Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

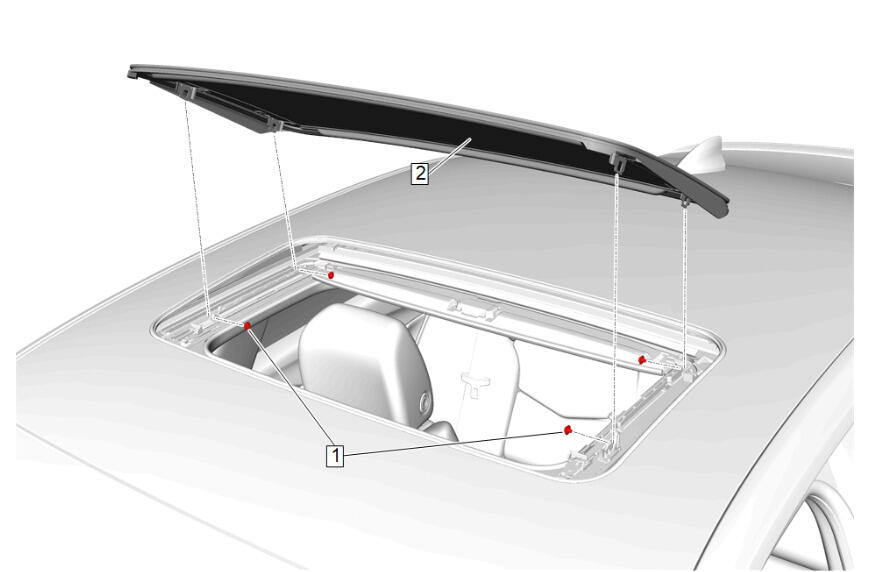

  1. GM5461938Courtesy of GENERAL MOTORS COMPANY

    Sunroof Window (2) - Install

  2. CAUTION:

    Refer to Fastener Caution .

  3. Sunroof Window Bolt (1) - Install and hand tighten [ 4x ]
  4. Ensure the proper sunroof window height and opening fit. Sunroof Window Height and Opening Fit Adjustment

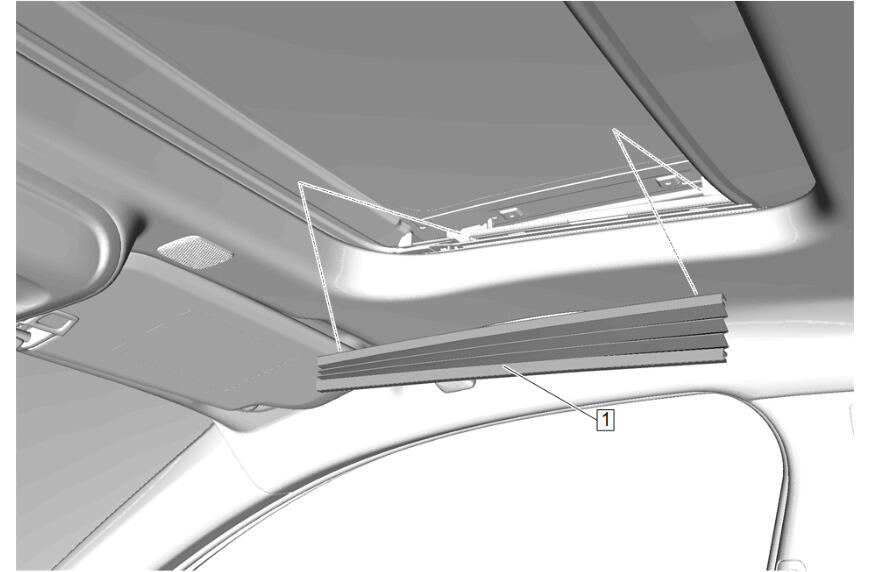

  5. GM5461937Courtesy of GENERAL MOTORS COMPANY

    Sunroof Air Deflector Cover- Right Side (1) - Install

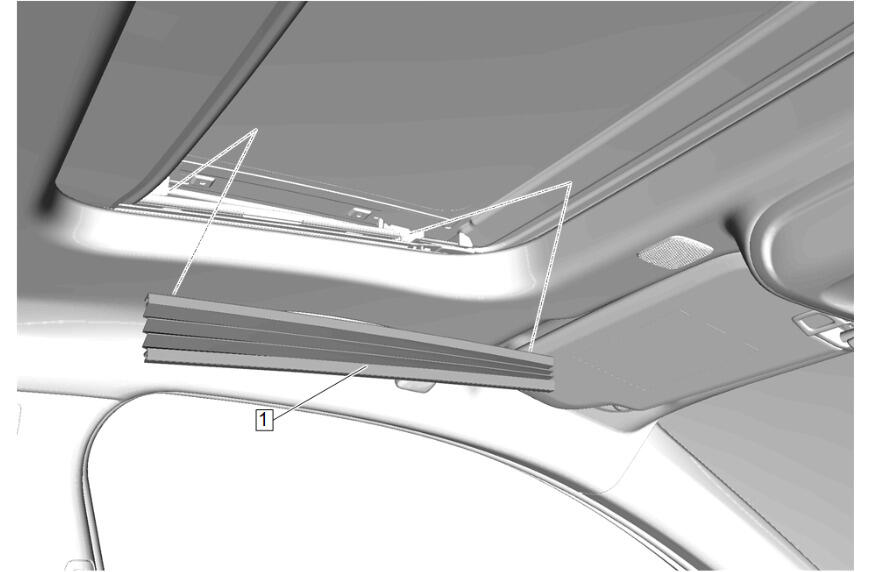

  6. GM5461936Courtesy of GENERAL MOTORS COMPANY

    Sunroof Air Deflector Cover- Left Side (1) - Install

  7. Close the sunroof sunshade.
