Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

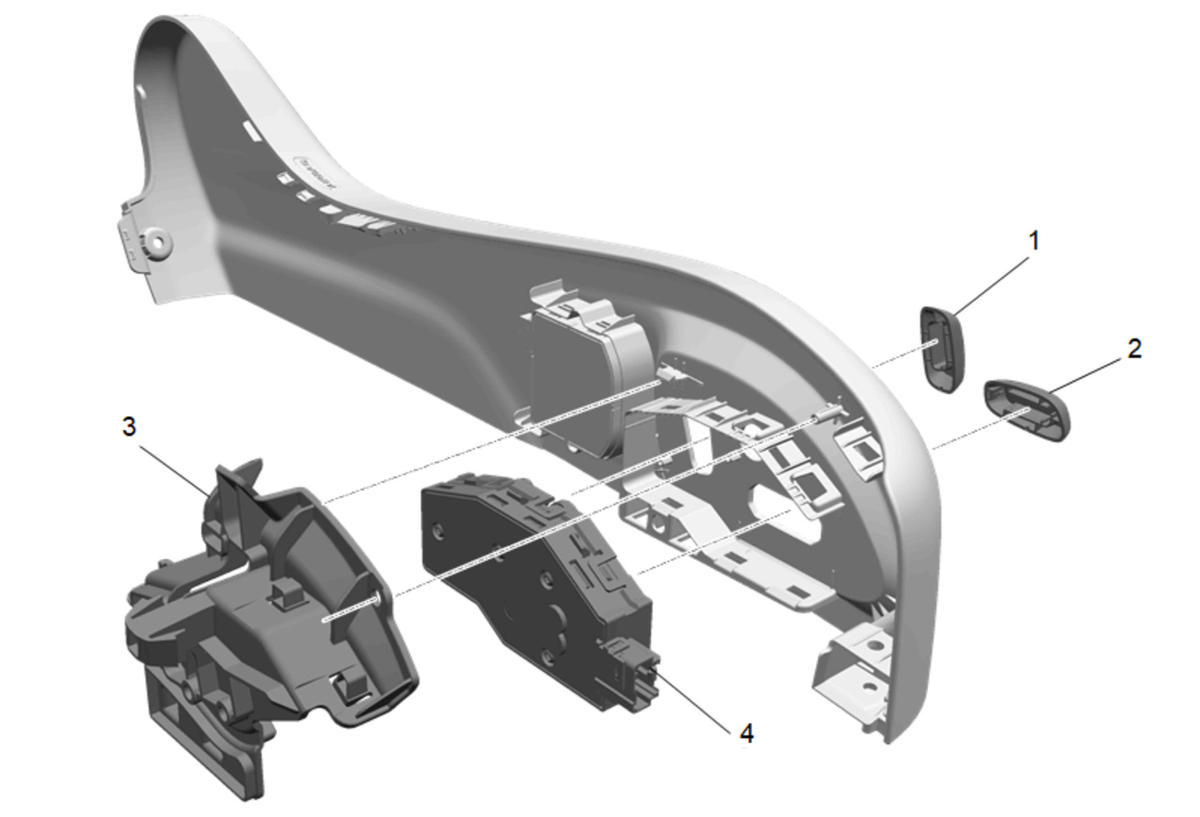

Front Seat Adjuster Switch(4) - Install
- Front Seat Adjuster Finish Cover Retainer(3) - Install
- Front Seat Adjuster Knob(2) - Install
- Front Seat Recliner Knob(1) - Install
Connect the electrical connector.

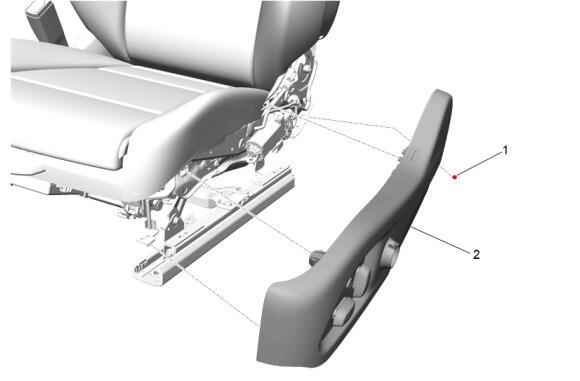

- Front Seat Cushion Outer Finish Cover (2) - Install
- Front Seat Cushion Outer Finish Cover Bolt -Rear (1) - Install and tighten - Fastener Specifications

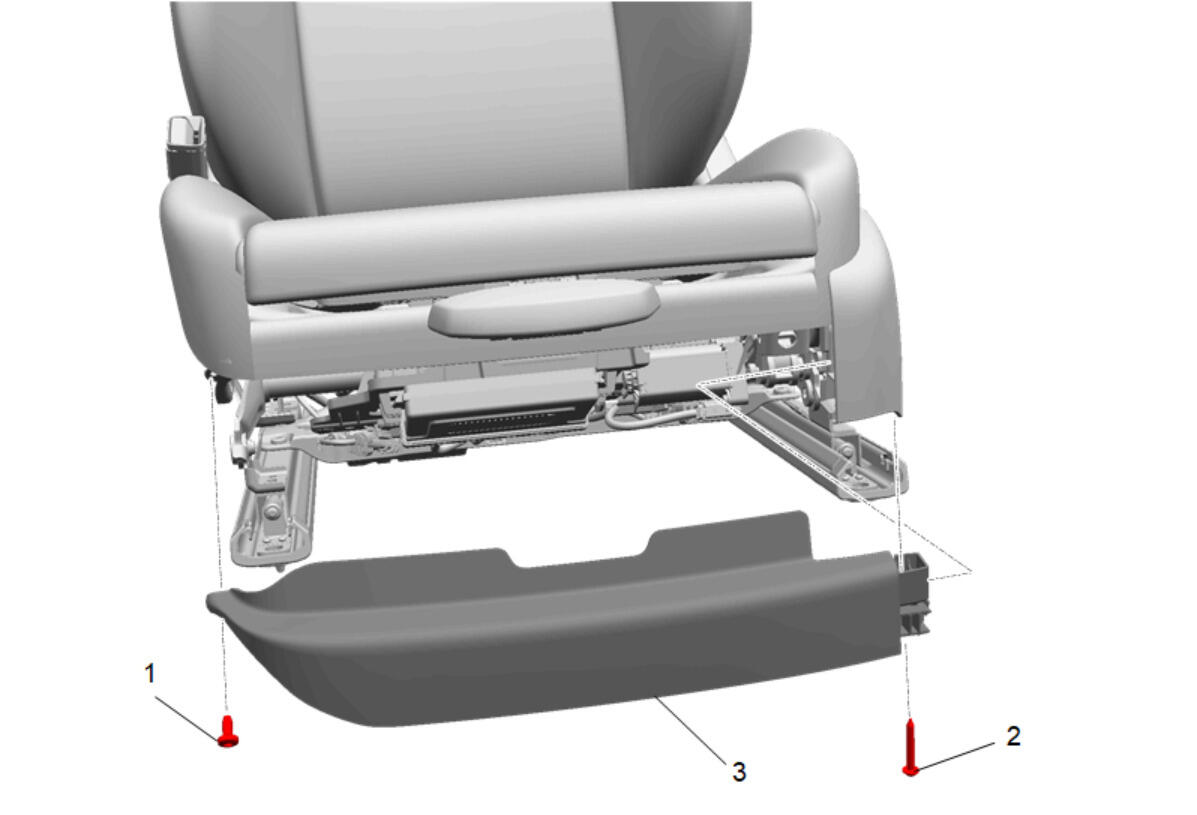

Front Seat Cushion Front Finish Cover (3) - Install
- Front Seat Cushion Outer Finish Cover Bolt -Front (2) - Install and tighten - Fastener Specifications
- Front Seat Cushion Front Finish Cover Bolt (1) - Install and tighten - Fastener Specifications
- Return the seat to the original position.
CAUTION:
Refer to Fastener Caution .
