Power Distributor Fuse Block Cover Replacement
Power Distributor Fuse Block Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

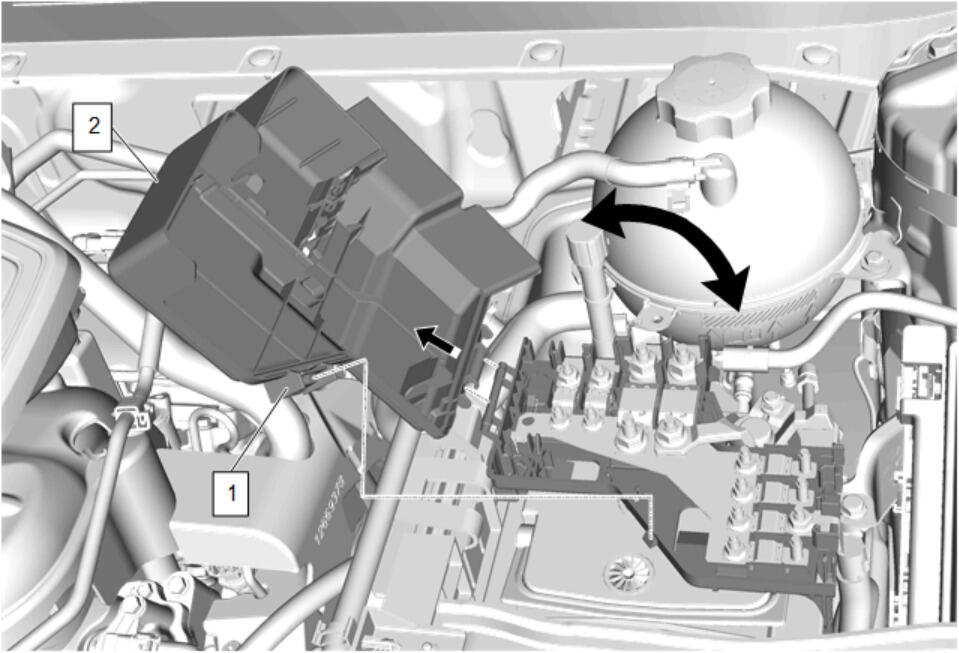

Callout
Component Name
1
Retaining Tab
2
Power Distributor Fuse Block Cover
Procedure
Disengage the retaining tab (1) and swing open the power distributor fuse block cover.
Disengage the power distributor fuse block cover (2) from the power distribution fuse block.
