Removal Procedure

  1. Exhaust Muffler - Remove - Exhaust Muffler Replacement
  2. Rear Bumper Fascia - Remove - Rear Bumper Fascia Removal And Installation

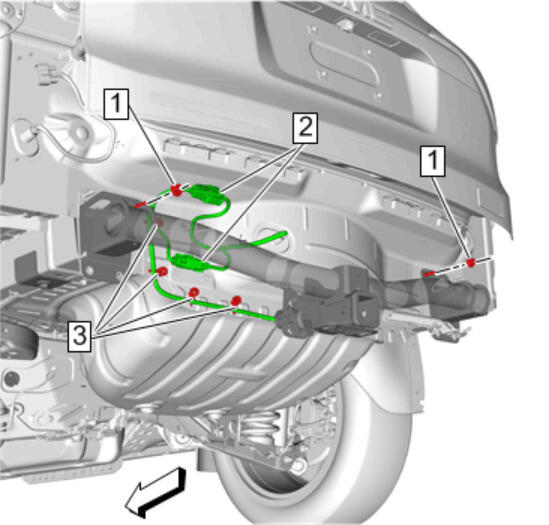

  3. GM4375793Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (2) - Disconnect [ 2x ]

  4. Trailer Hitch Support Bracket Nut (1) - Remove [ 2x ]
  5. Retainer (3) - Disengage [ 4x ]

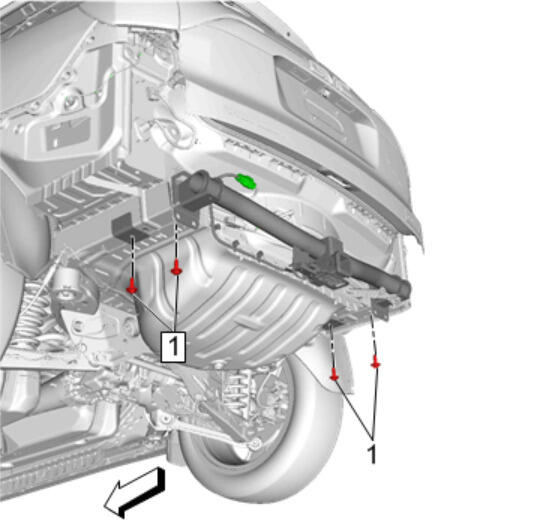

  6. GM4375795Courtesy of GENERAL MOTORS COMPANY

    Trailer Hitch Support Bracket Bolt - Underside (1) - Remove [ 4x ]

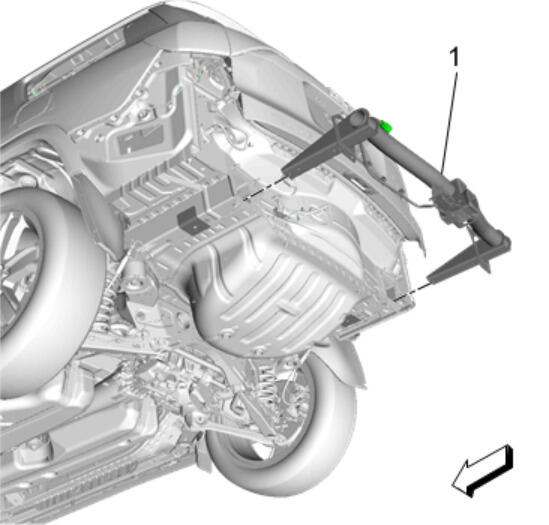

  7. GM4375796Courtesy of GENERAL MOTORS COMPANY

    Trailer Hitch Assembly (1) - Remove
