Installation Procedure

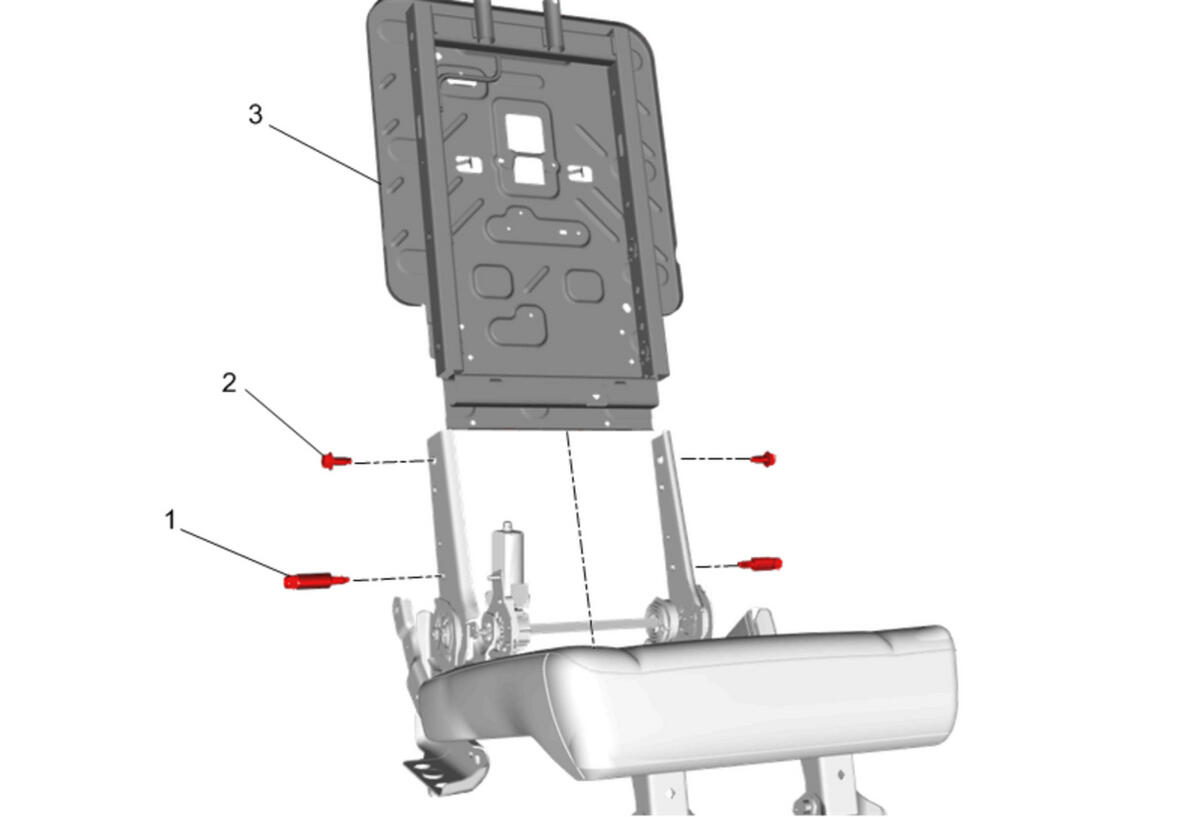

  1. GM4751298Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Frame (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. 3rd Row Seat Back Frame Bolt (2) - Install and tighten [ 2x ] 25 N.m (18 lb ft)
  3. Rear Seat Spacer (1) - Install and tighten [ 2x ] 25 N.m (18 lb ft)

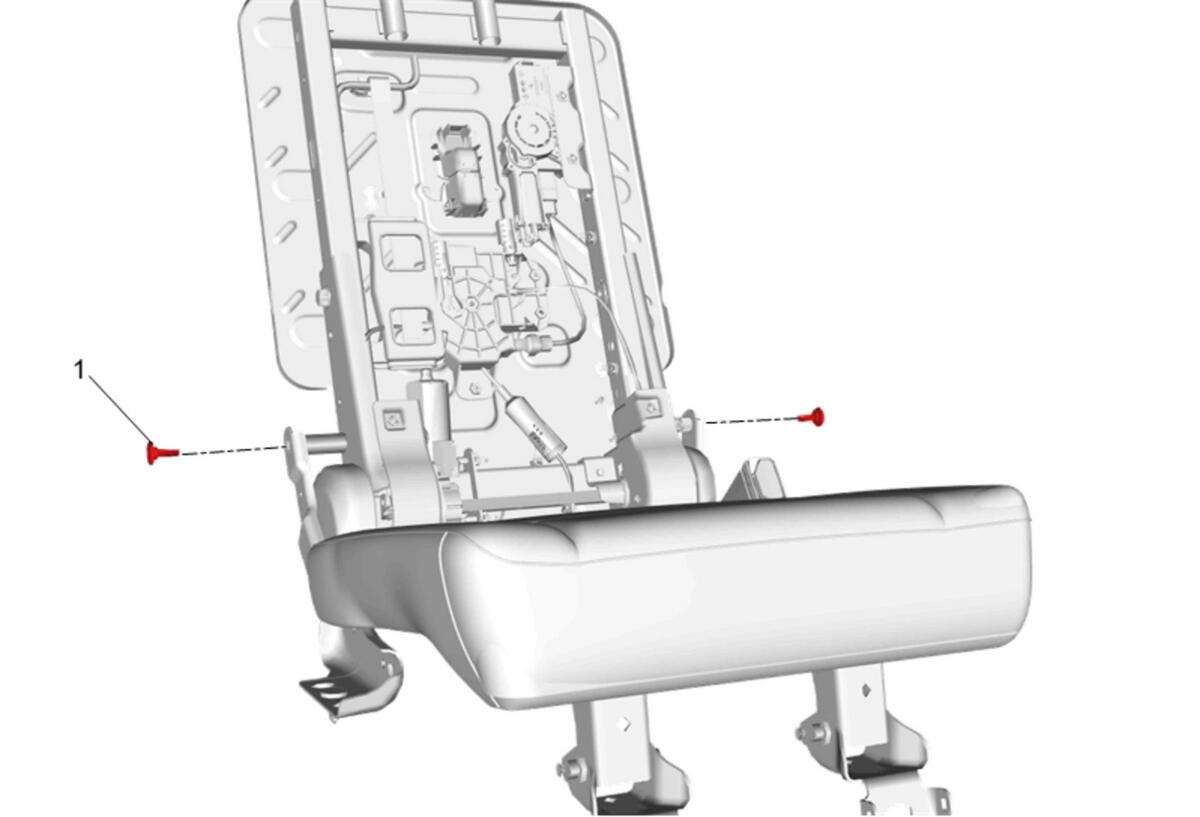

  4. GM4751295Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Cushion Frame Bolt (1) - Install [ 2x ] - 3rd Row Seat Cushion Frame Replacement

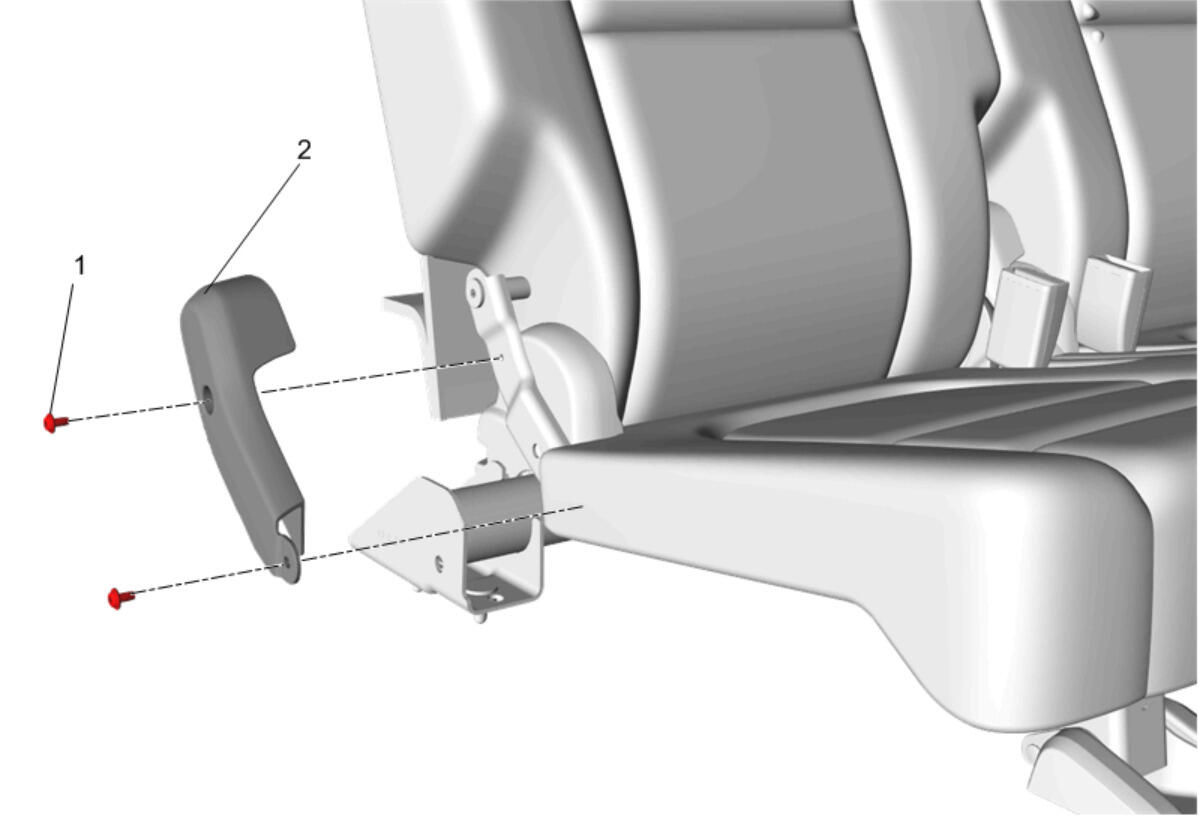

  5. GM4377363Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Hinge Finish Cover (Outboard) (2) - Install - 3rd Row Seat Back Hinge Finish Cover Replacement (Outboard) , or 3rd Row Seat Back Hinge Finish Cover Replacement (Inboard)

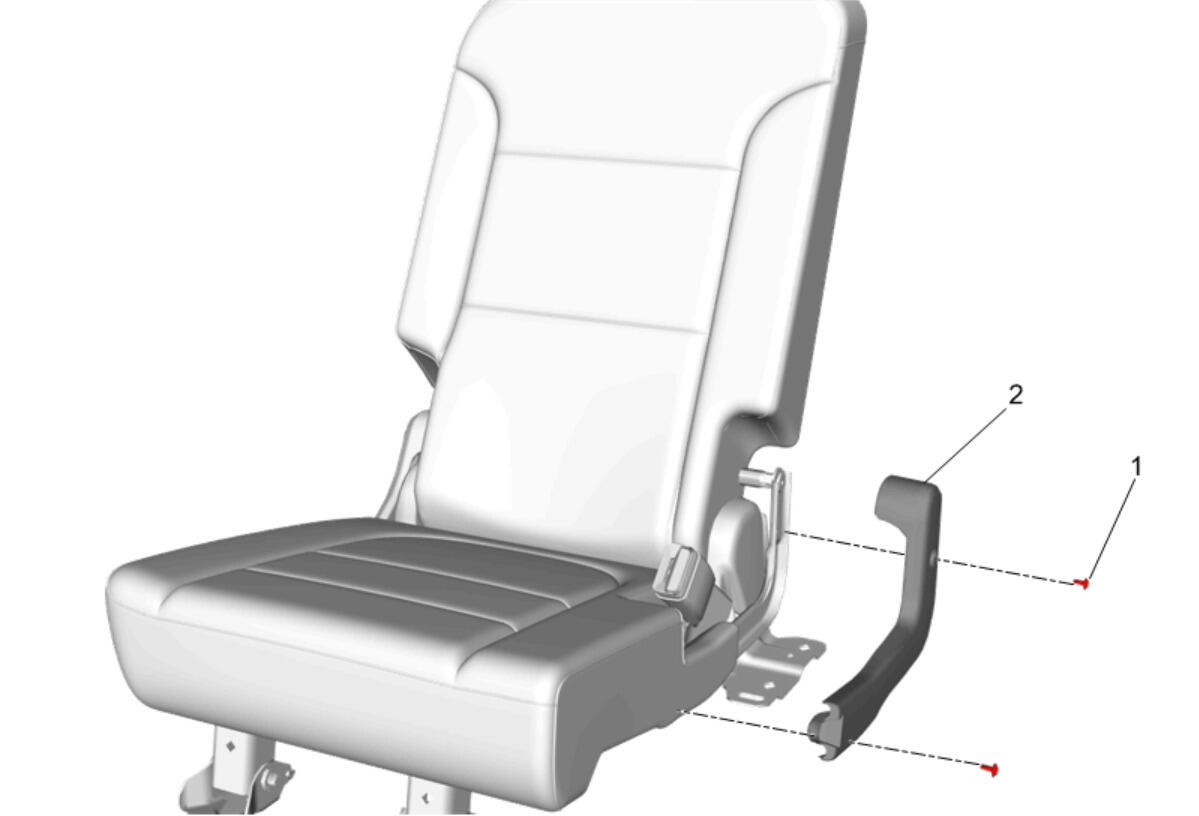

  6. GM4751695Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Hinge Finish Cover (Inboard) (2) - Install - 3rd Row Seat Back Hinge Finish Cover Replacement (Outboard) , or 3rd Row Seat Back Hinge Finish Cover Replacement (Inboard)

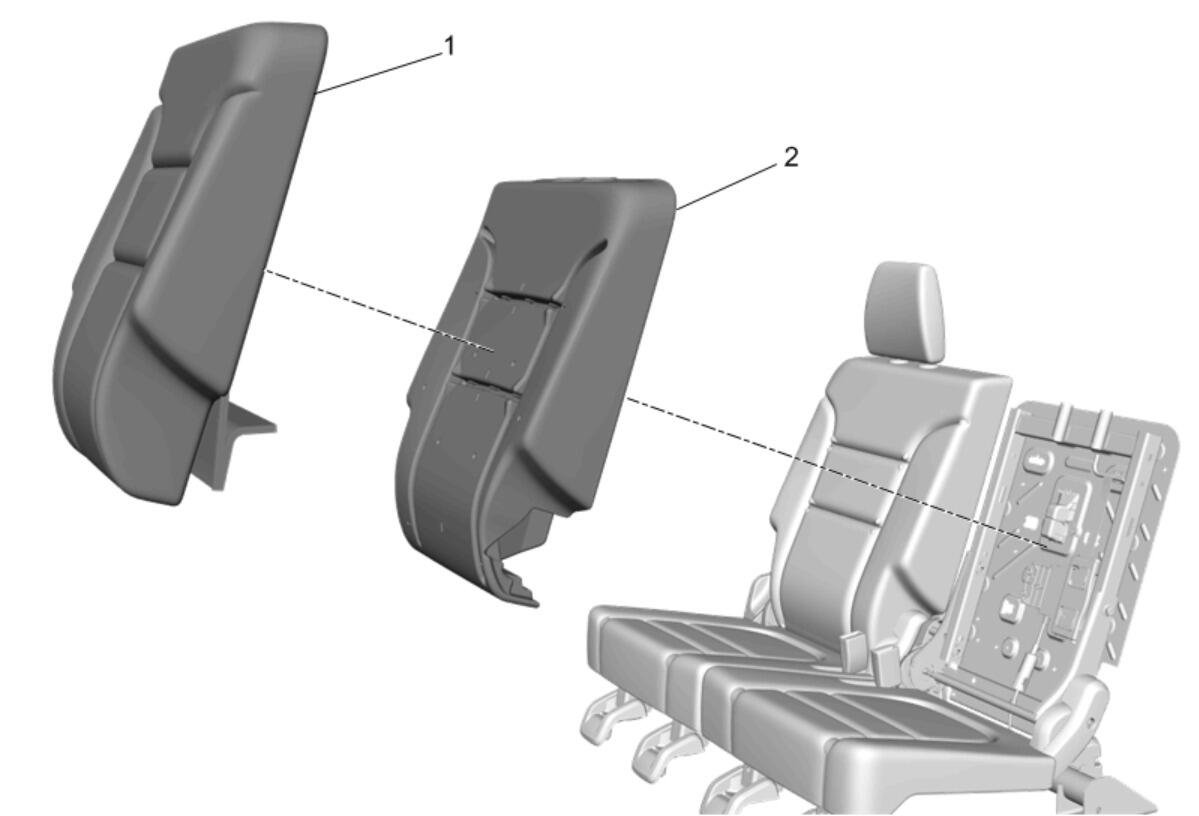

  7. GM4381035Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Cover (1) and Pad (2) - Install - 3rd Row Seat Back Cover and Pad Replacement

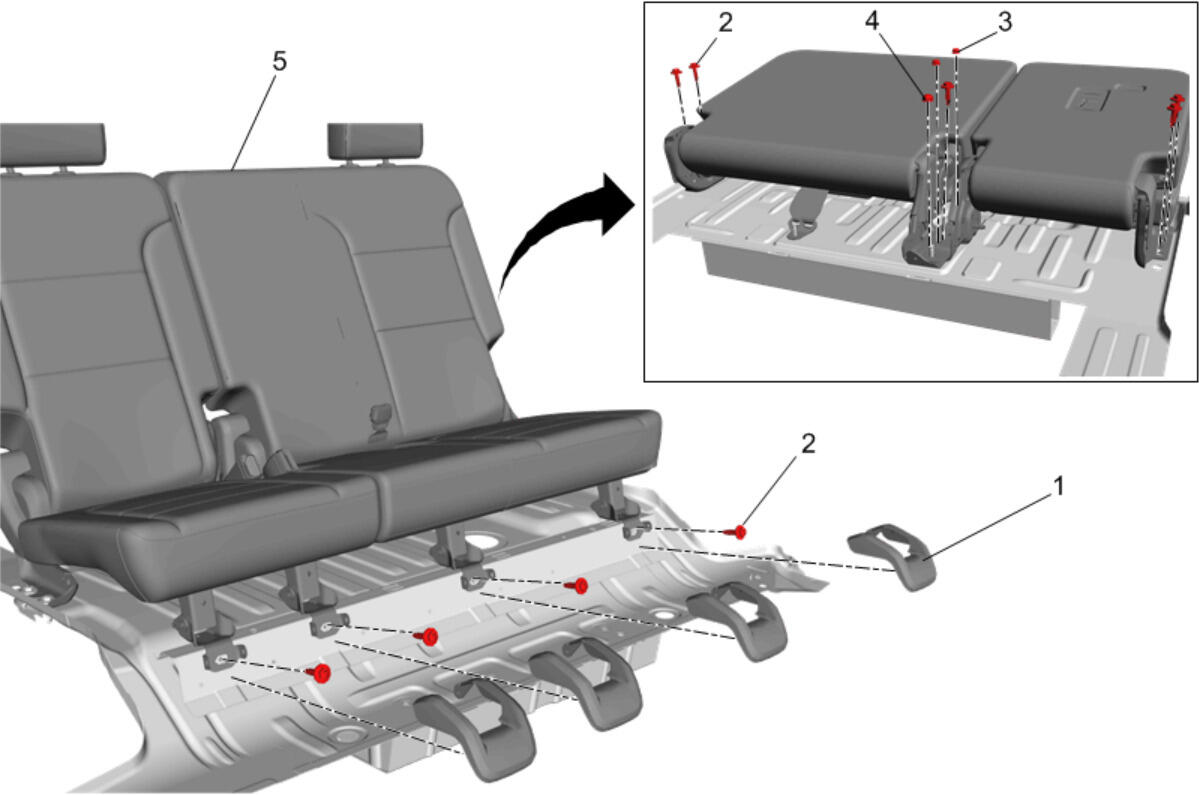

  8. GM4748511Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat (5) - Install - 3rd Row Seat Removal and Installation (Power) , or 3rd Row Seat Removal and Installation (Manual)
