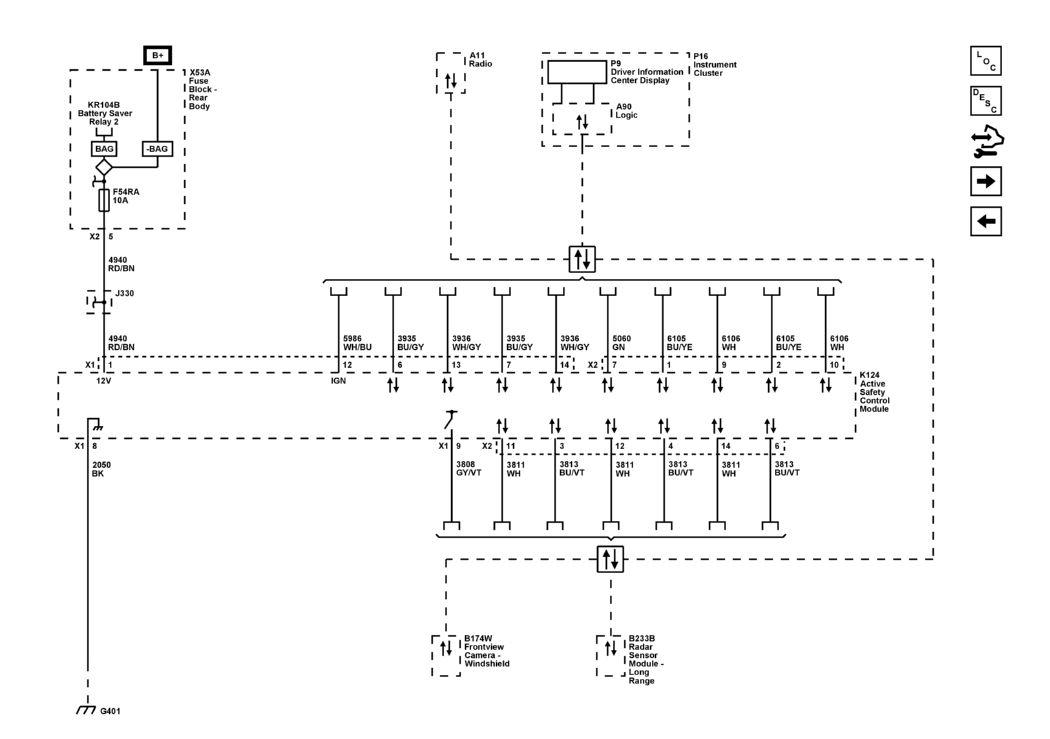

Collision Avoidance - Module Power, Ground, and Serial Data (UGN)

GM5699539

Courtesy of GENERAL MOTORS COMPANY
