Transfer Case Adapter Replacement

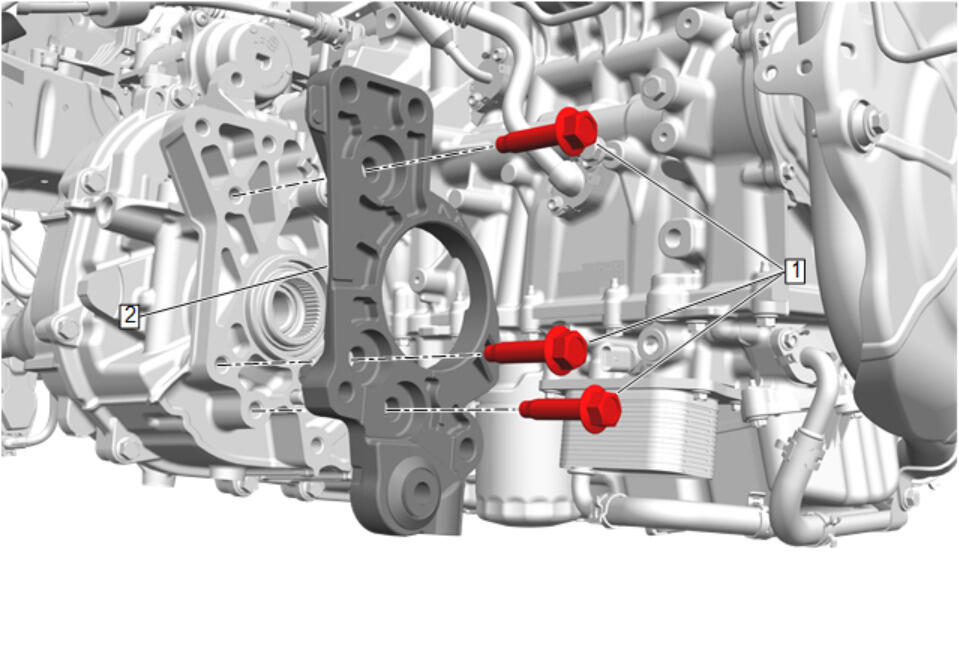

GM5263023Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Power Transfer Unit Case Replacement
1 Power Transfer Unit Adapter Bolt [3x]
CAUTION:

Fastener Caution


Tighten
100 N.m (74 lb ft)
2 Power Transfer Unit Adapter
