Installation Procedure
Clean the contact surfaces between the power transfer unit case and the transmission.
- Power Transfer Unit Face Seal (1) - Install NEW

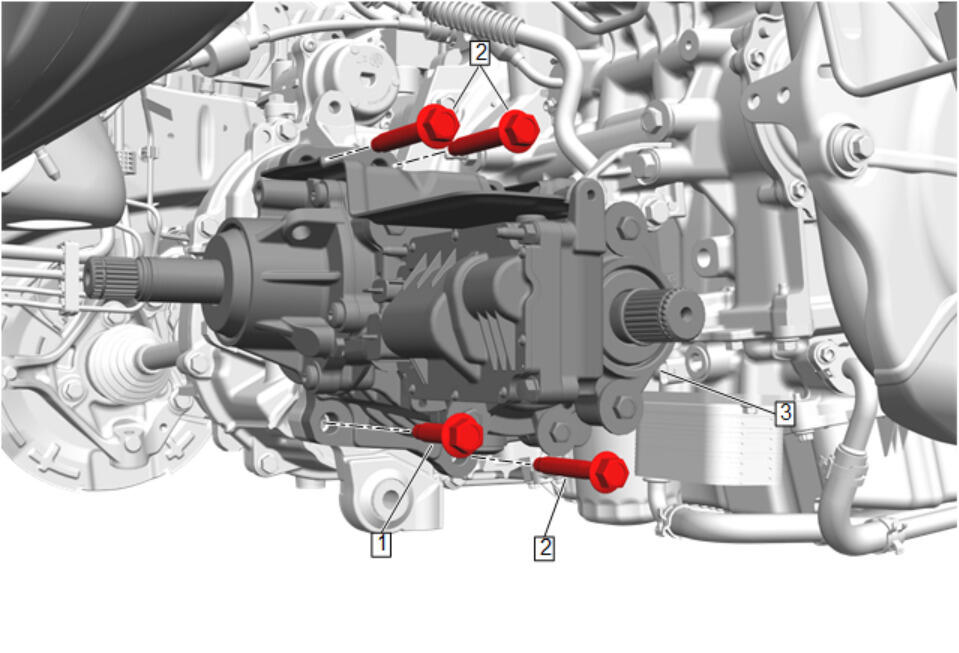

Power Transfer Unit Case (3) @ Transmission - Install
- Power Transfer Unit Bolt (2) @ Transmission - Install and tighten [3x] 100 N.m (74 lb ft)
- Power Transfer Unit Bolt (1) @ Power Transfer Unit Adapter - Install and tighten 100 N.m (74 lb ft)

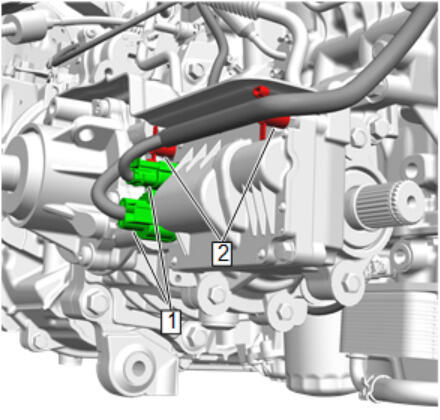

Wiring Harness Retainer (2) - Secure [2x]
- Electrical Connector (1) @ Power Transfer Unit Shift Actuator - Connect [2x]
- Transmission Brace @ Vehicle - Install - Transmission Brace Replacement
- Warm Up Three-Way Catalytic Converter @ Vehicle - Install - Warm Up Three-Way Catalytic Converter Replacement (L3T_FWD) , or Warm Up Three-Way Catalytic Converter Replacement (L3T_AWD) , or Warm Up Three-Way Catalytic Converter Replacement (LIH)

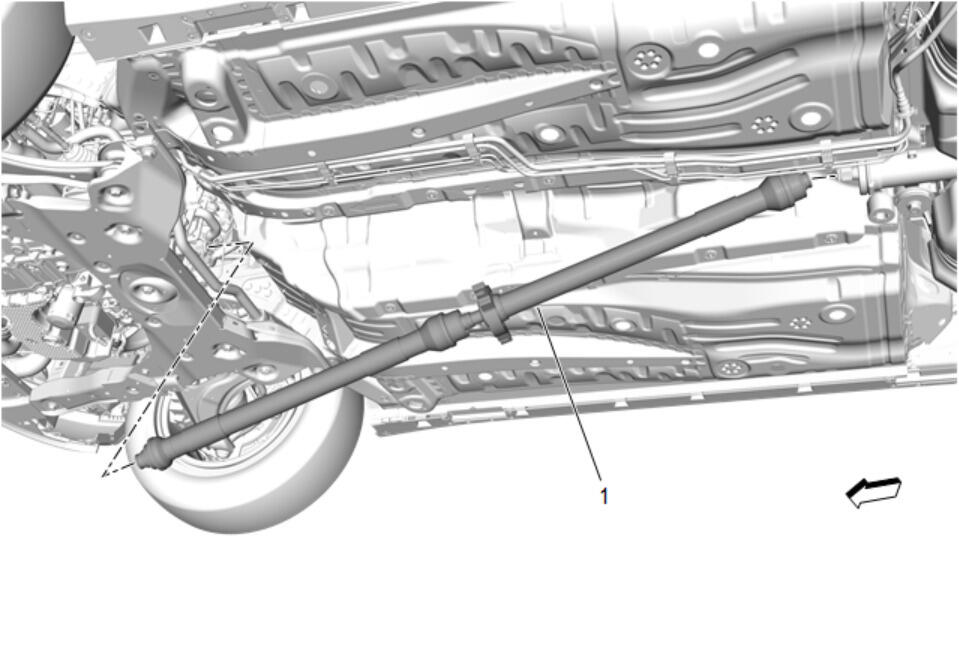

Propeller Shaft (1) @ Vehicle - Install - Propeller Shaft Replacement
Drivetrain and Front Suspension Cradle (1) @ Vehicle - Install - Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (FWD)

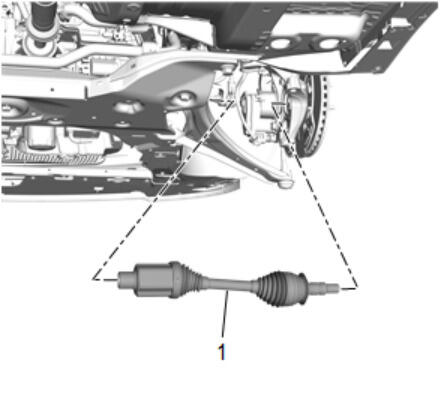

Front Wheel Drive Shaft- Right Side (1) @ Vehicle - Install - Front Wheel Drive Half Shaft Replacement - Right Side (AWD) , or Front Wheel Drive Half Shaft Replacement - Right Side (FWD)
- Check the transmission fluid level. Transmission Fluid Drain and Fill
CAUTION:
