Removal Procedure

  1. Steering Wheel Airbag - Remove - Steering Wheel Airbag Replacement

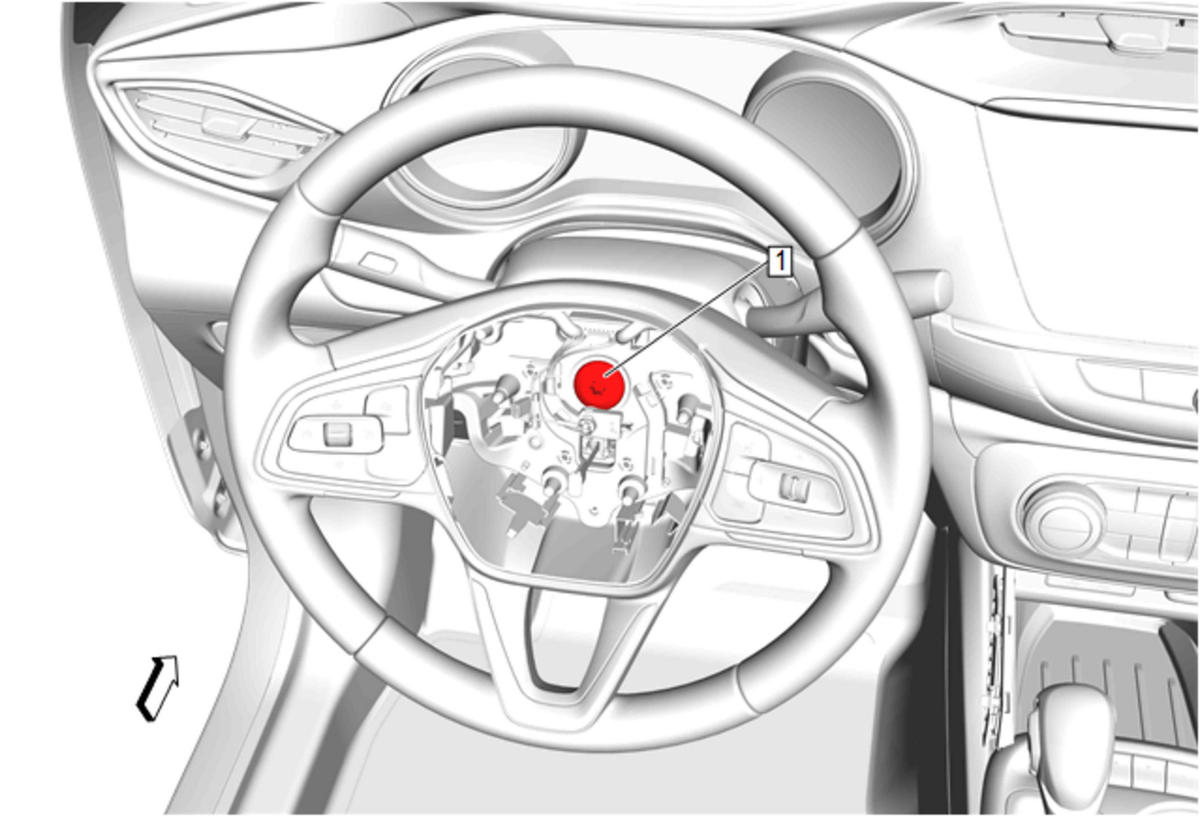

  2. GM5171368Courtesy of GENERAL MOTORS COMPANY

    Loosen the steering wheel bolt (1) until 2 to 3 threads are still engaged.

  3. Wiggle the steering wheel until the wheel disengages completely.

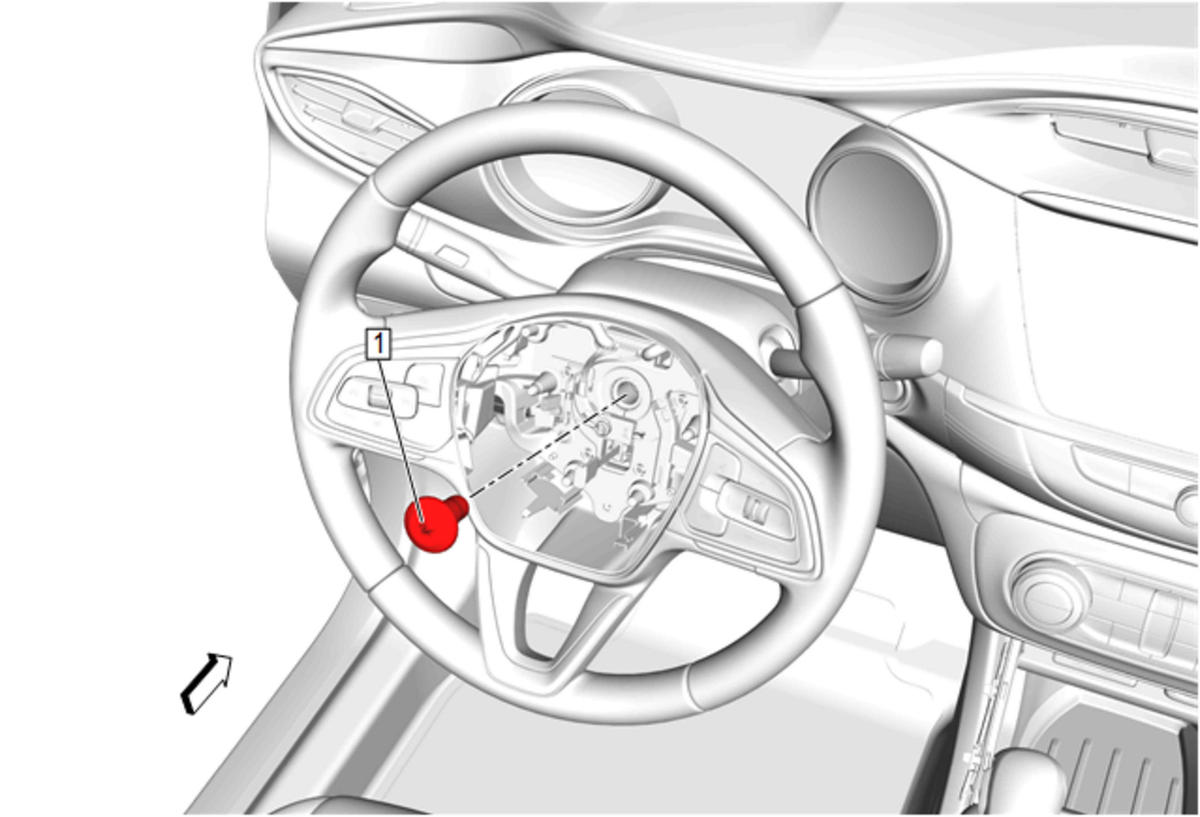

  4. GM5171369Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) - Remove

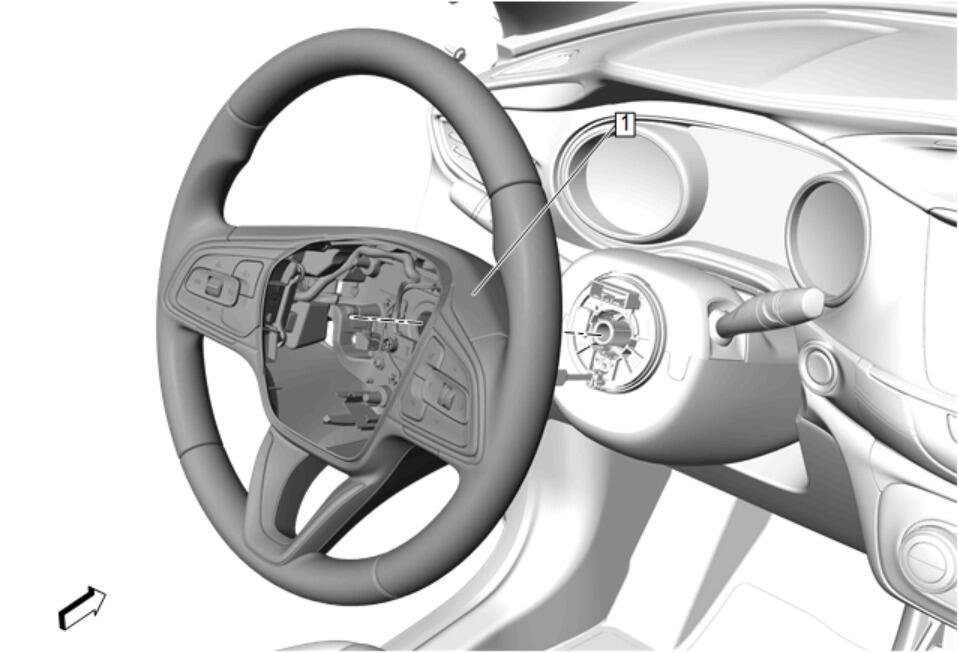

  5. GM5171370Courtesy of GENERAL MOTORS COMPANY

    Remove the steering wheel. (1)

  6. Disconnect the electrical connector.
  7. Transfer components as necessary.
