Front Seat Belt Guide Adjuster Replacement

Courtesy of GENERAL MOTORS COMPANY

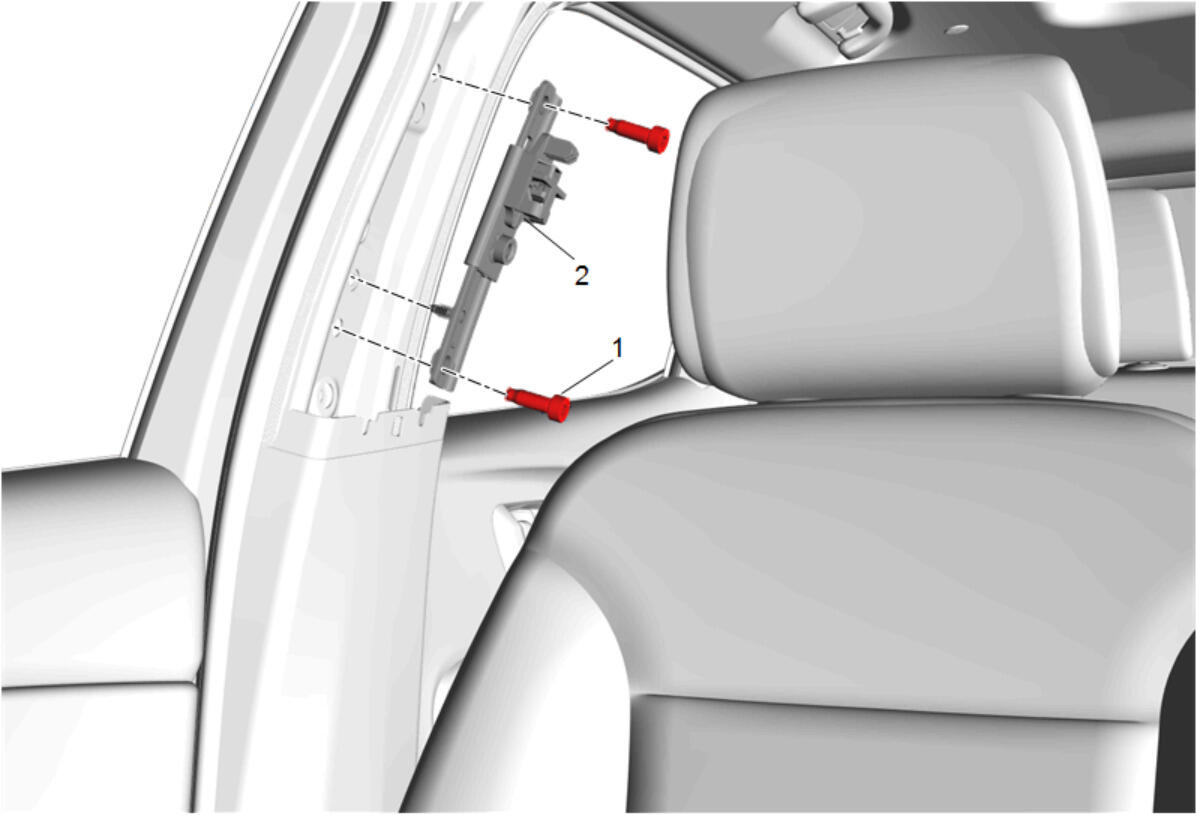

Callout	Component Name
Preliminary Procedures Center Pillar Upper Trim Panel Replacement Remove the upper front seat belt retractor bolt (2). Front Seat Belt Retractor Replacement
1	Front Seat Belt Guide Adjuster Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Guide Adjuster

Callout

Component Name

Preliminary Procedures

Front Seat Belt Guide Adjuster Bolt [2x]

CAUTION:

Tighten
45 N.m (33 lb ft)

Front Seat Belt Guide Adjuster
