Engine Coolant Flow Control Valve Installation
WARNING: This page is about a different variant/trim than selected.

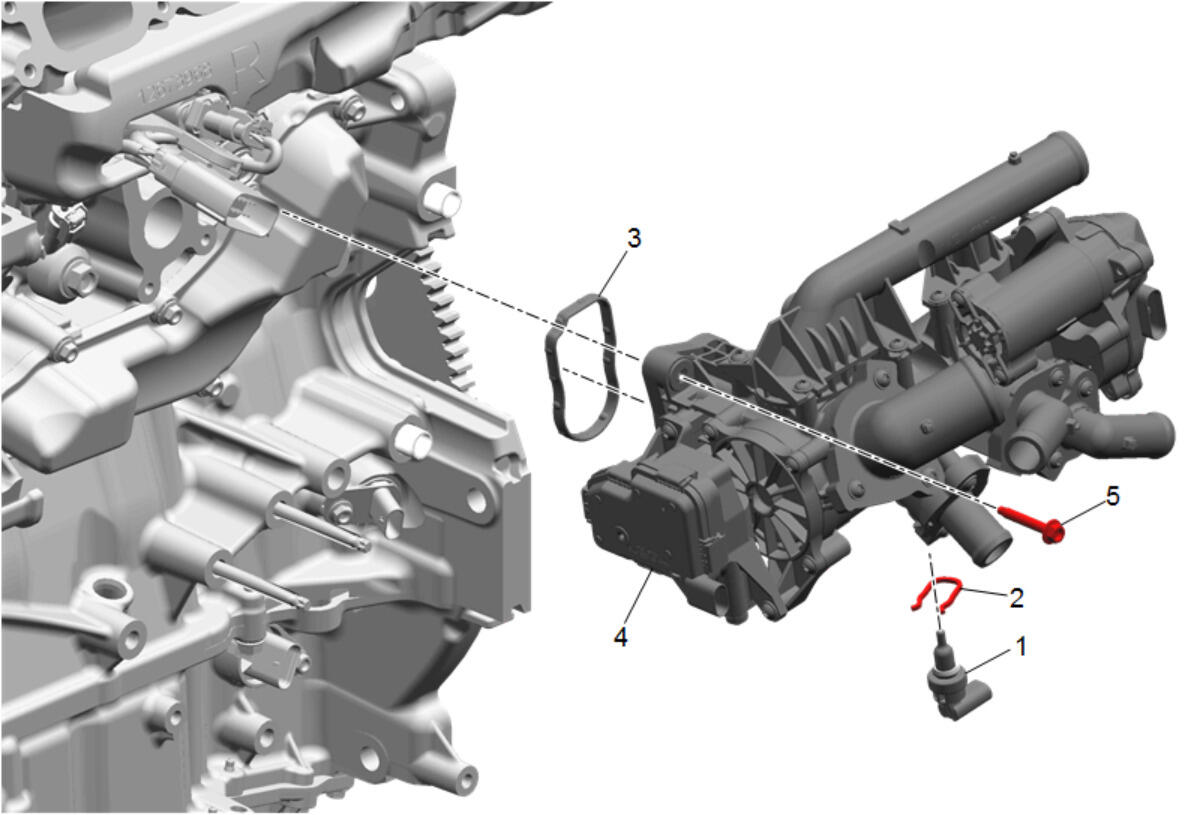

| Callout | Component Name |
|---|---|
| 1 | Engine Coolant Temperature Sensor |
| 2 | Engine Coolant Temperature Sensor Retainer |
| 3 | Engine Coolant Flow Control Valve Seal Procedure Install a NEW seal. Do NOT reuse the old seal. |
| 4 | Engine Coolant Flow Control Valve |
| 5 | Engine Coolant Flow Control Valve Bolt [5x]
CAUTION:
Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in) |
