Engine Coolant Temperature Sensor Replacement - Radiator

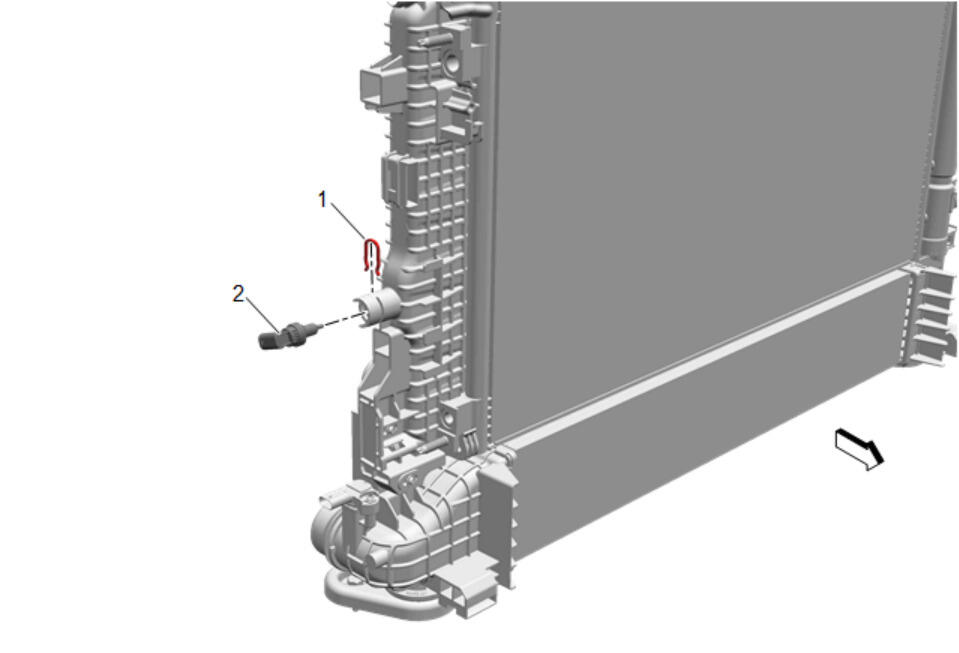

GM5317299Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
  2. Front Bumper Fascia Replacement
  3. Disconnect the electrical connector.
1 Engine Coolant Temperature Sensor Retainer
2 Engine Coolant Temperature Sensor

Procedure

  1. Fill the coolant to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
  2. Inspect for coolant leaks.
