Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

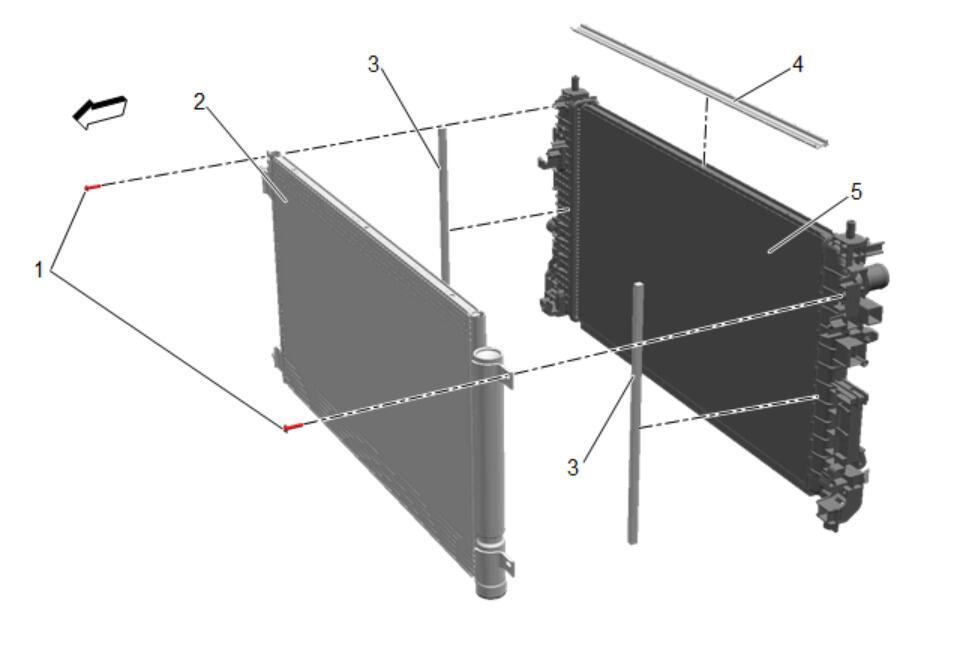

Radiator (5) - Install
Radiator Air Upper Seal (4) - Install
Radiator Air Side Seal (3) - Install
Air Conditioning Condenser (2) - Install
Air Conditioning Condenser Bolt (1) - Install and tighten [2x] 3 N.m (27 lb in)
Courtesy of GENERAL MOTORS COMPANY

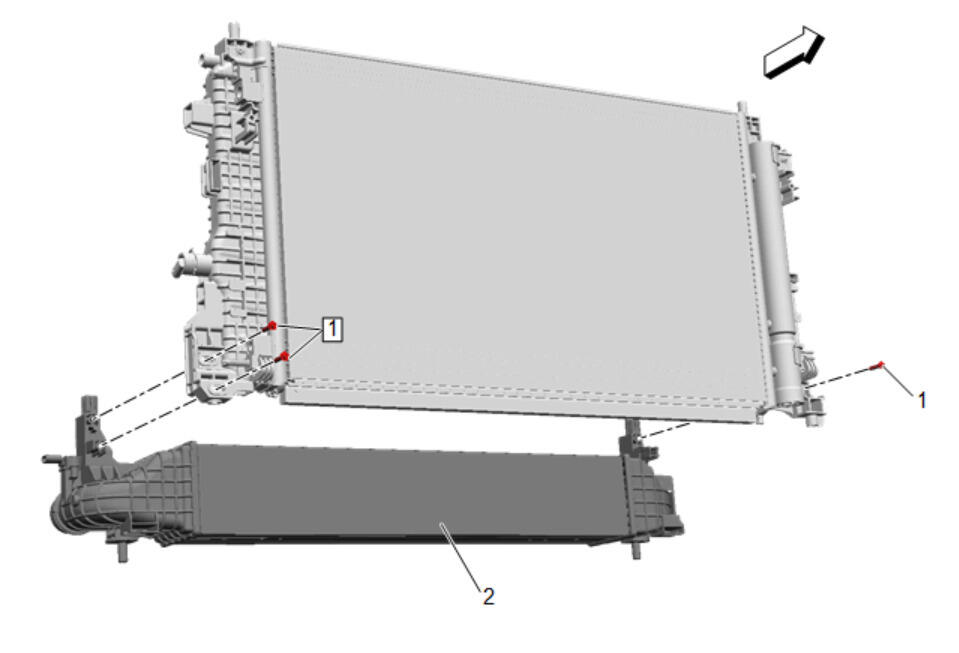

Charge Air Cooler (2) @ Radiator Assembly - Install - Charge Air Cooler Replacement
Courtesy of GENERAL MOTORS COMPANY

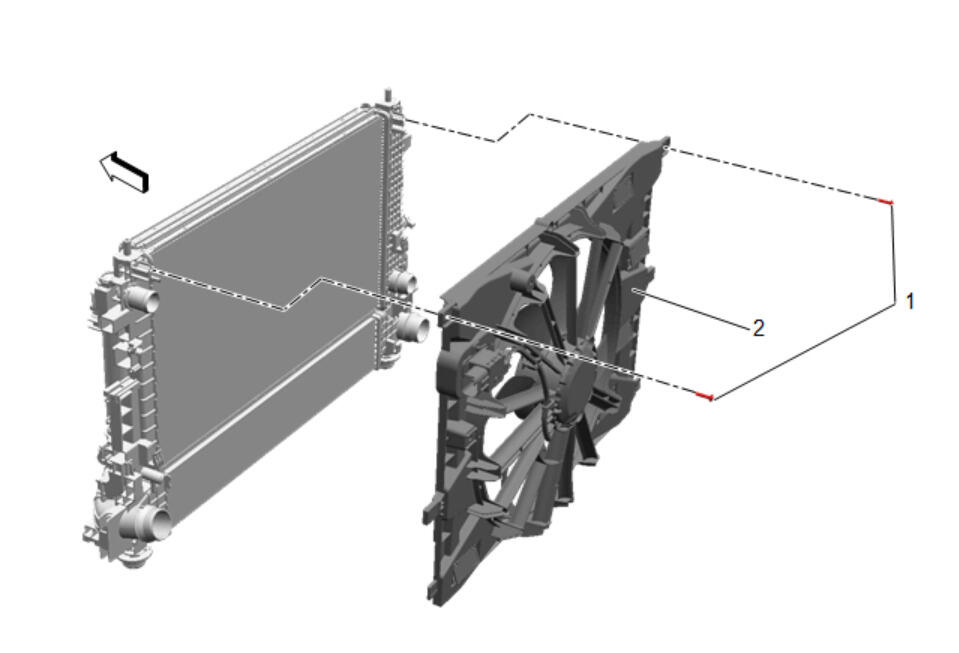

Engine Coolant Fan (2) @ Radiator Assembly - Install
Engine Coolant Fan Bolt (1) - Install and tighten [2x] 3 N.m (27 lb in)
Courtesy of GENERAL MOTORS COMPANY

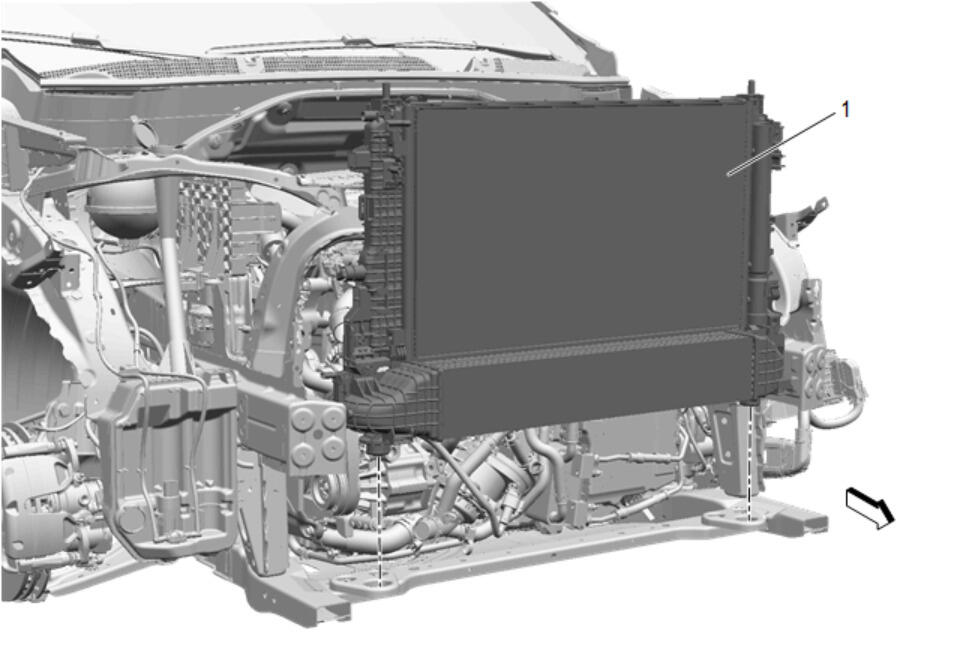

Radiator Assembly (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

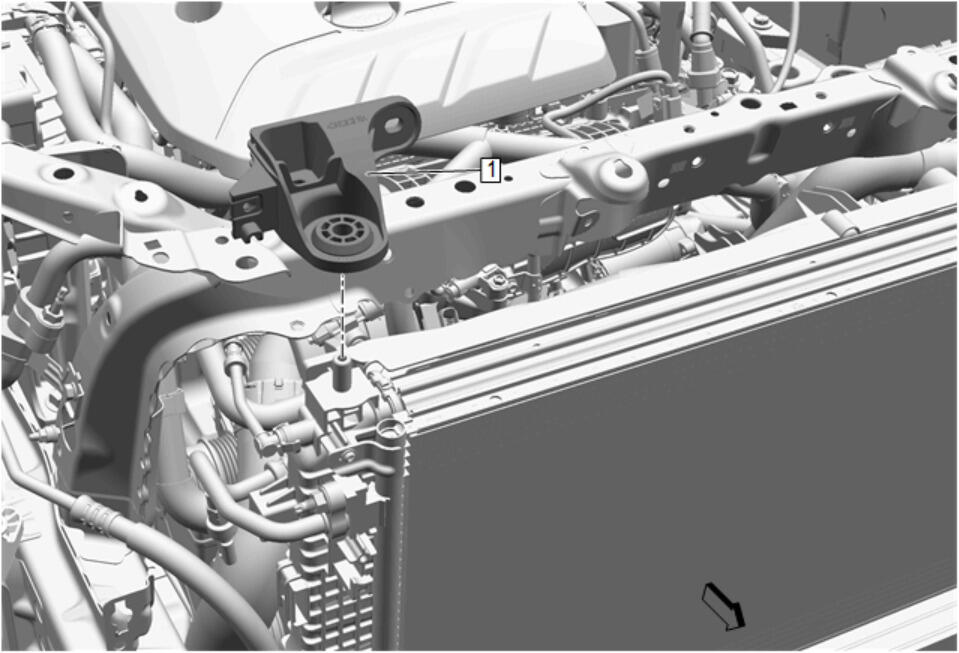

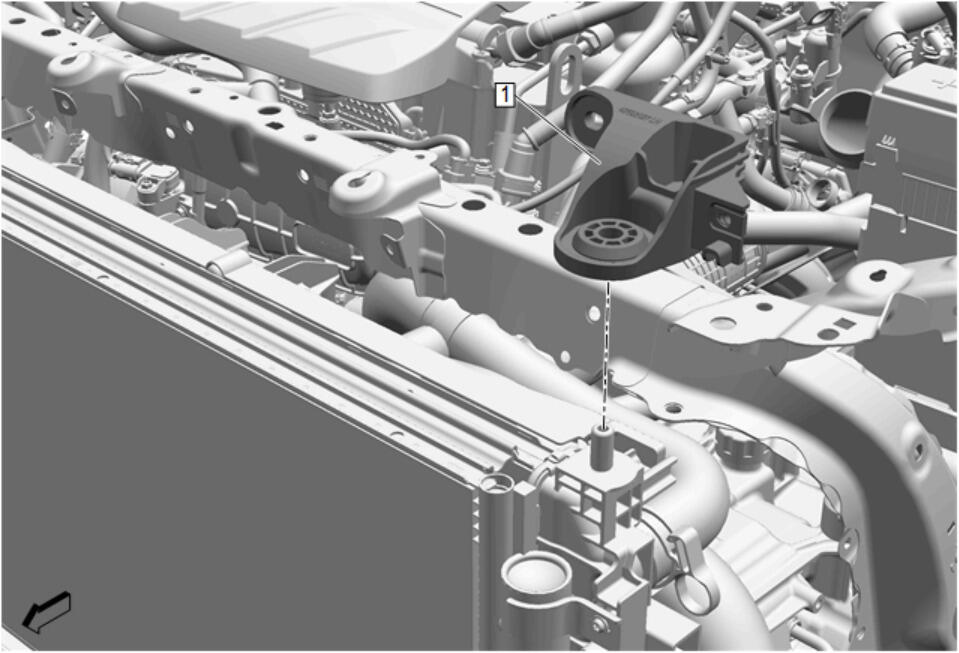

Radiator Upper Bracket (1) - Right Side - Install - Radiator Upper Bracket Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket (1) - Left Side - Install - Radiator Upper Bracket Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

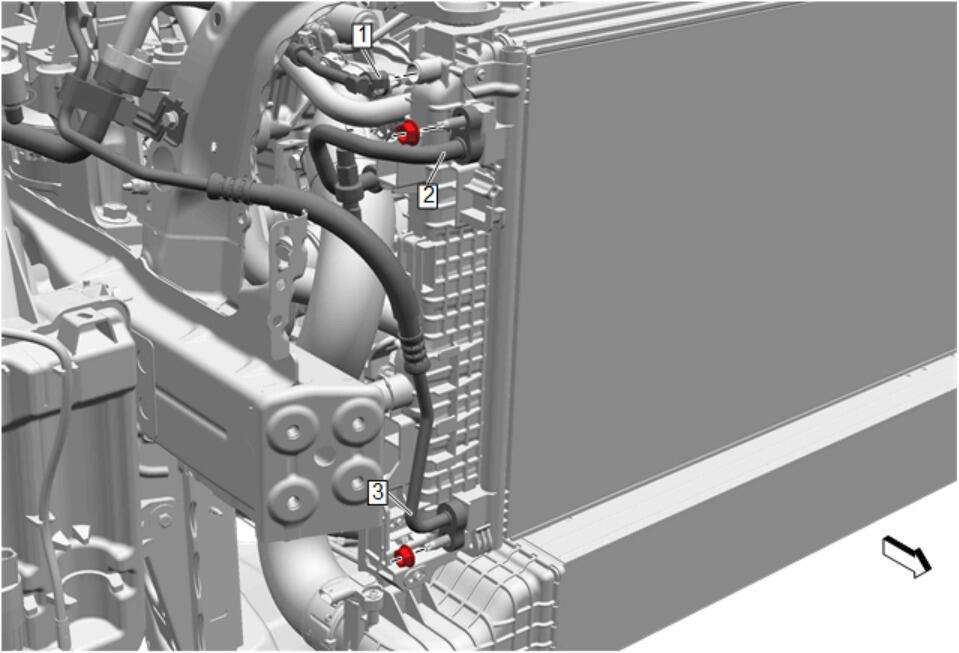

Engine Coolant Air Bleed Hose (1) @ Radiator Assembly - Install - Engine Coolant Air Bleed Hose Replacement
Air Conditioning Condenser Hose (2) @ Radiator Assembly - Install - Air Conditioning Condenser Hose Replacement (L3T) , or Air Conditioning Condenser Hose Replacement (LIH)
Air Conditioning Evaporator Hose Assembly (3) @ Radiator Assembly - Install - Air Conditioning Evaporator Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose (3) @ Radiator Assembly - Install - Radiator Outlet Hose Replacement (L3T) , or Radiator Outlet Hose Replacement (LIH)
Courtesy of GENERAL MOTORS COMPANY

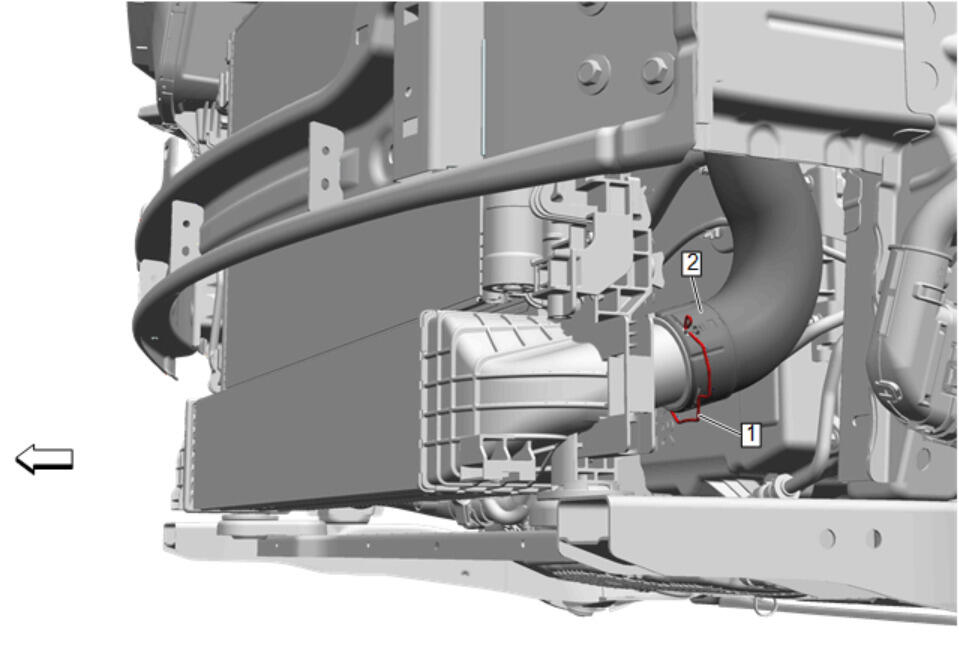

Charge Air Cooler Outlet Air Hose (2) @ Radiator Assembly - Install - Charge Air Cooler Outlet Air Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

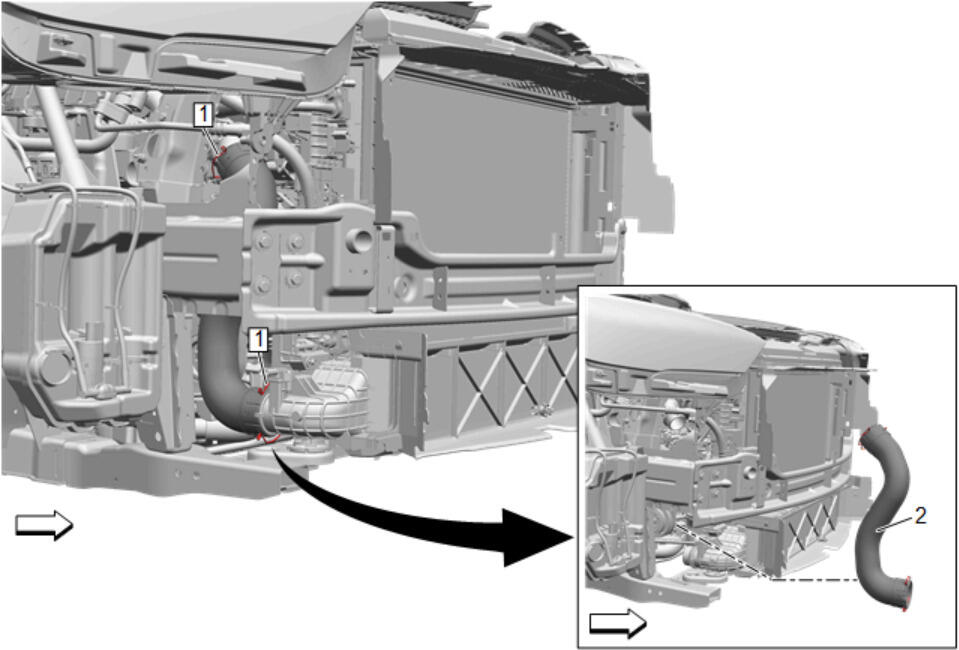

Charge Air Cooler Inlet Air Hose (2) @ Radiator Assembly - Install - Charge Air Cooler Inlet Air Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

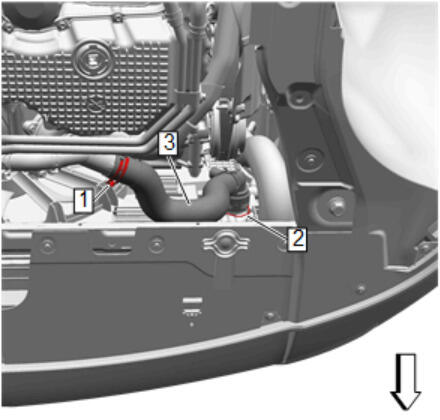

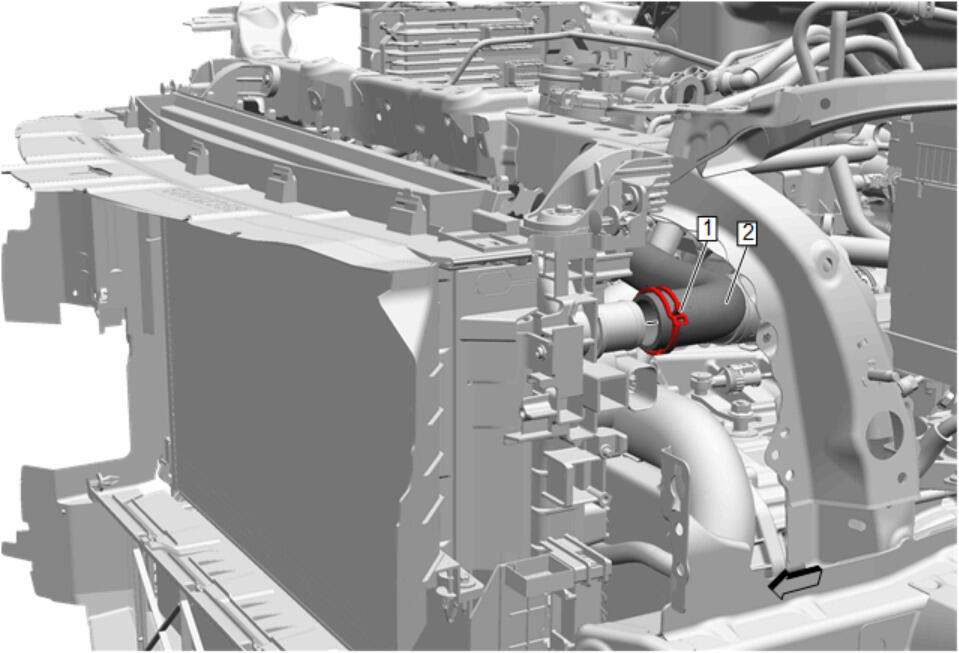

Radiator Inlet Hose (2) @ Radiator Assembly - Install - Radiator Inlet Hose Replacement (L3T) , or Radiator Inlet Hose Replacement (LIH)
Courtesy of GENERAL MOTORS COMPANY

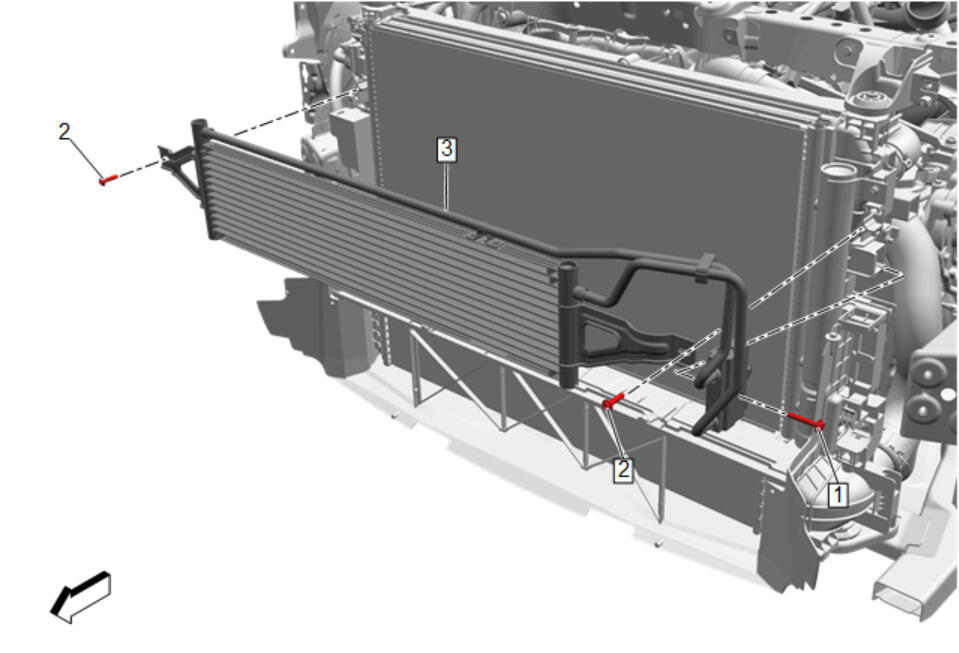

{If equipped} Transmission Fluid Auxiliary Cooler (3) - Install - Transmission Fluid Auxiliary Cooler Replacement
Courtesy of GENERAL MOTORS COMPANY

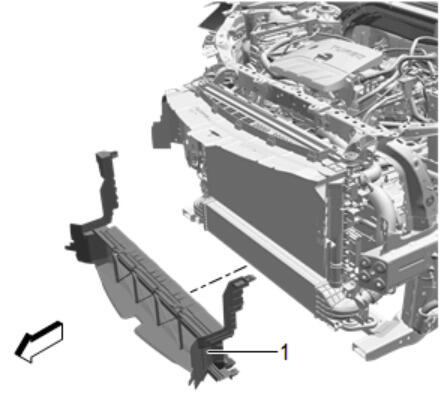

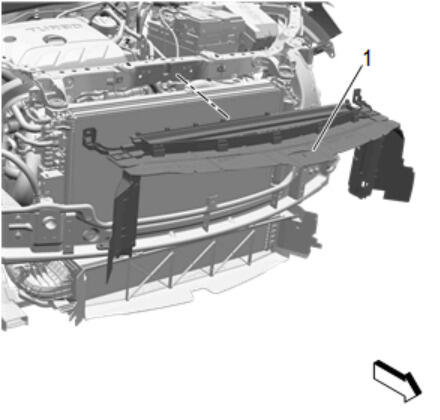

Radiator Air Lower Baffle (1) - Install - Radiator Air Lower Baffle Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle (1) - Install - Radiator Air Upper Baffle Replacement
Courtesy of GENERAL MOTORS COMPANY

Intake Air Baffle (1) - Install - Intake Air Baffle Replacement
Courtesy of GENERAL MOTORS COMPANY

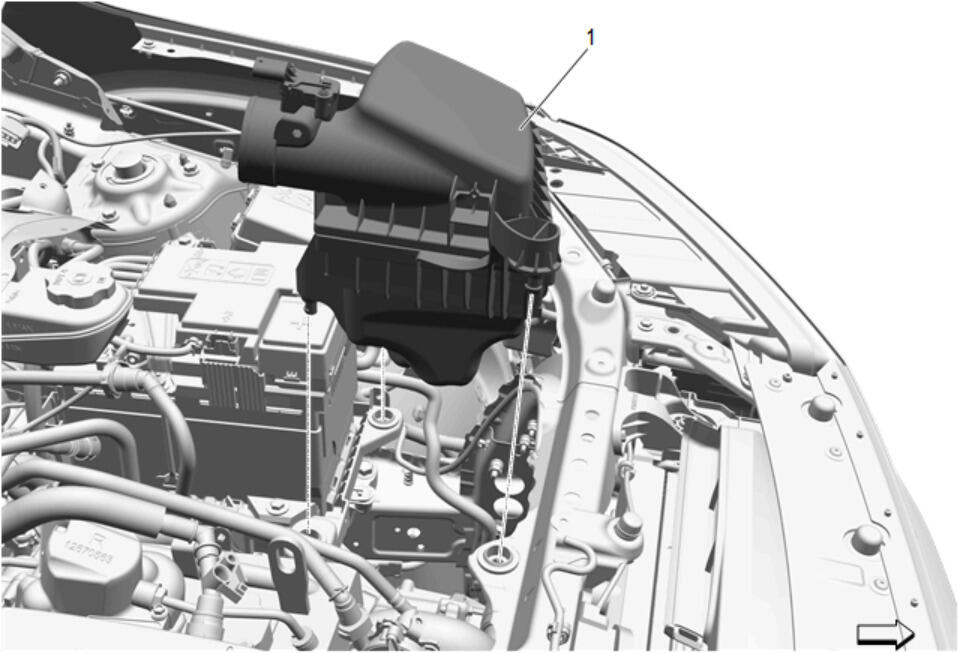

Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

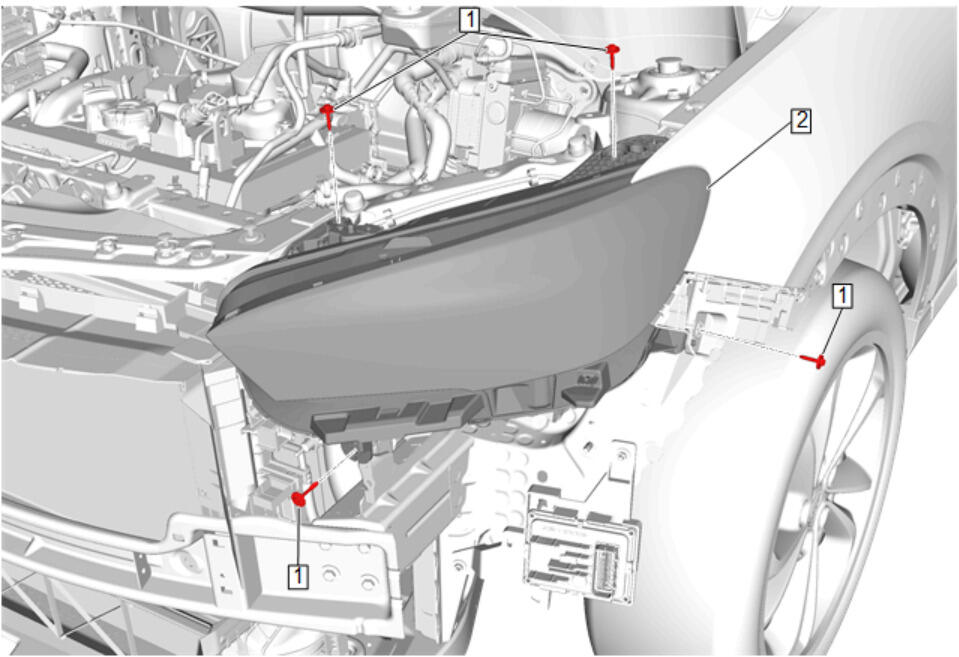

Headlamp (2) - Install - Front Headlamp Replacement
Courtesy of GENERAL MOTORS COMPANY

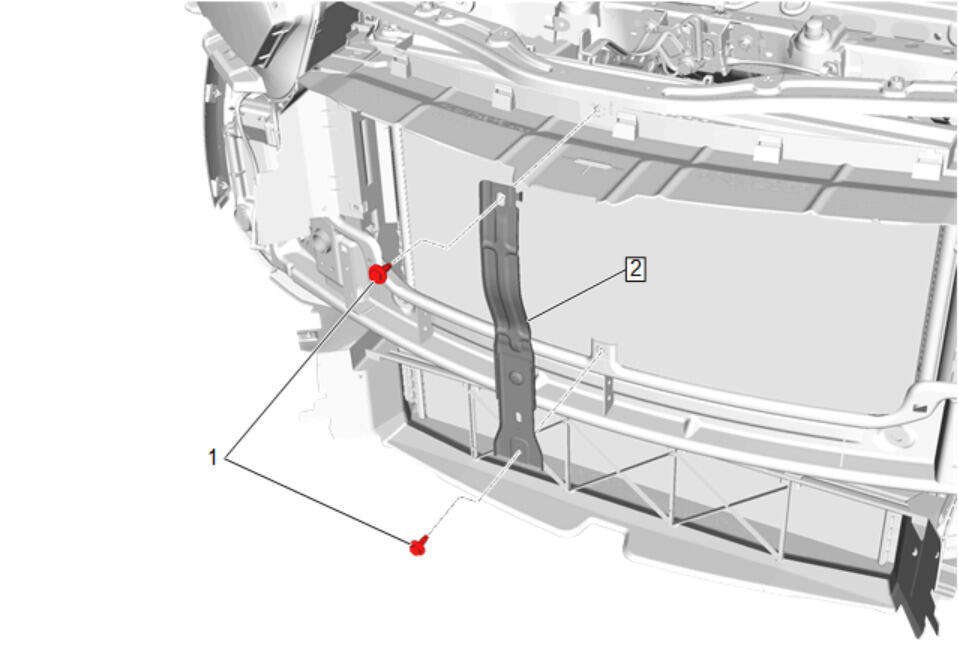

Front Bumper Fascia Support Brace (2) - Install - Front Bumper Fascia Support Brace Replacement
Courtesy of GENERAL MOTORS COMPANY

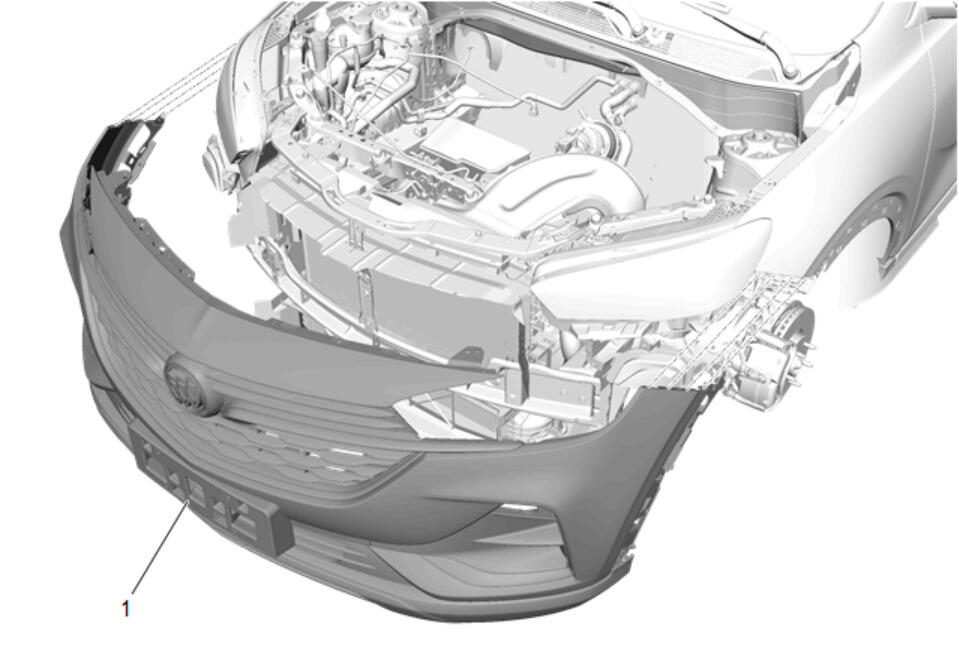

Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement
Recharge the refrigerant. Refrigerant Recovery and Recharging
Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
If necessary, fill the transmission to the proper level with the correct fluid. Transmission Fluid Level and Condition Check , and Adhesives, Fluids, Lubricants, and Sealers
Inspect for refrigerant leaks. Leak Testing
