Installation Procedure

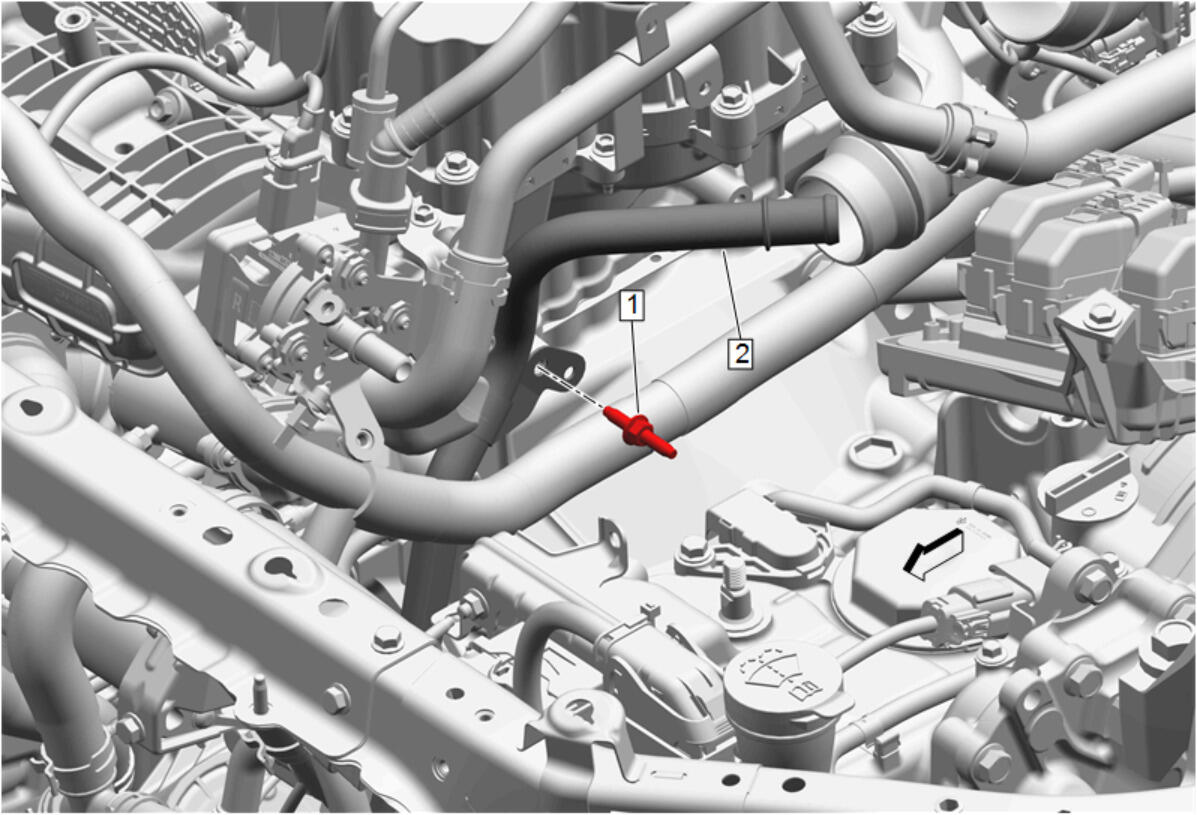

  1. GM5130343Courtesy of GENERAL MOTORS COMPANY

    Heater Outlet Pipe (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Auxiliary Heater Inlet and Outlet Pipe Bracket Stud (1) - Install and tighten 9 N.m (80 lb in)

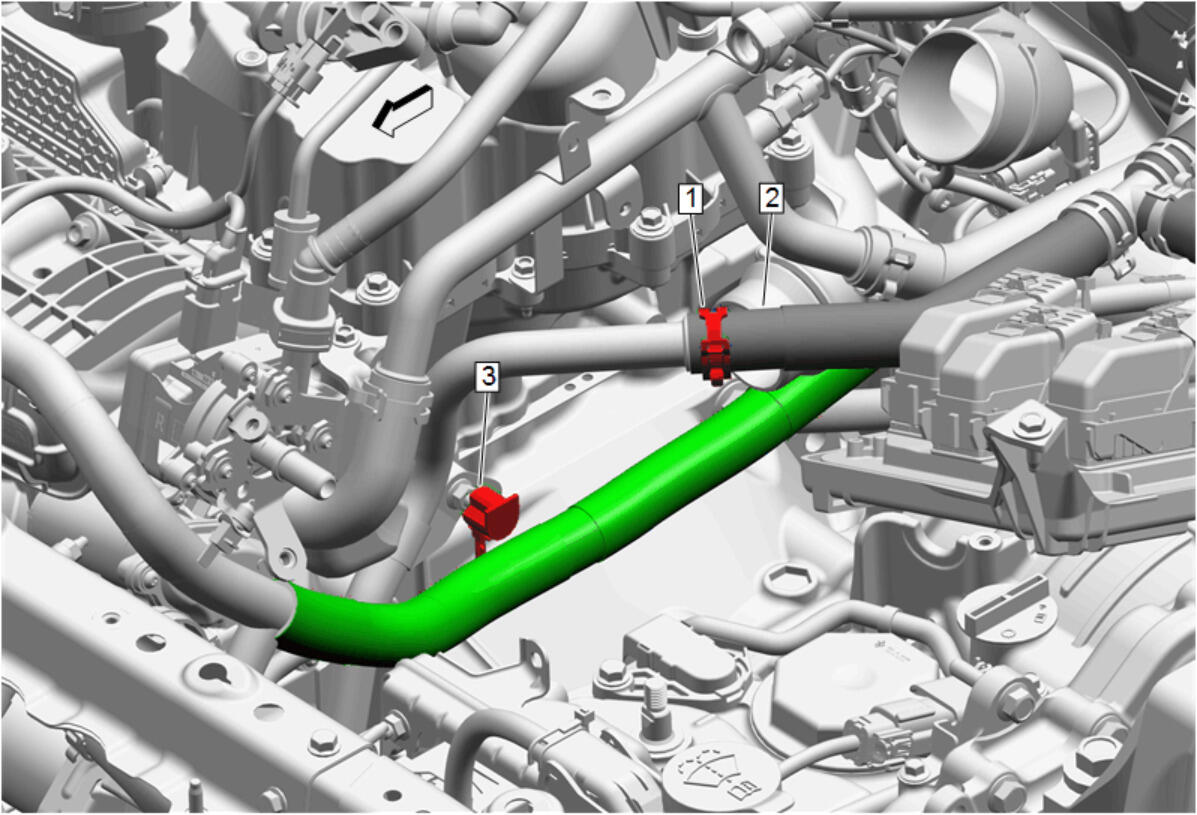

  3. GM5130300Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Retainer (3) @ Auxiliary Heater Inlet and Outlet Pipe Bracket Stud - Install

  4. Heater Outlet Hose (2) @ Heater Outlet Pipe - Install
  5. Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

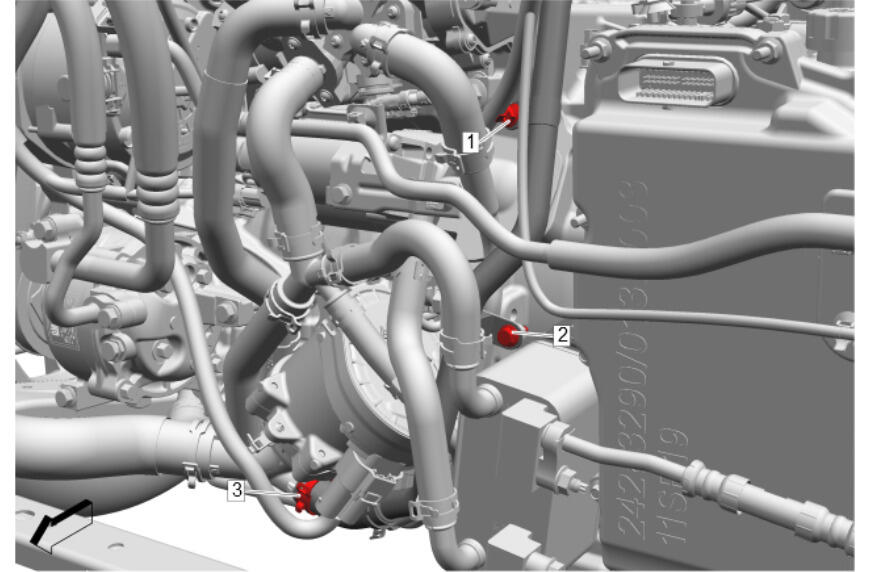

  6. GM5429231Courtesy of GENERAL MOTORS COMPANY

    Hose Clamp (3) - Engage - Hose Clamp Replacement Guidelines - Spring Type

  7. Heater Outlet Pipe Bolt (2) - Install and tighten 9 N.m (80 lb in)
  8. Wiring Harness Retainer (1) - Install

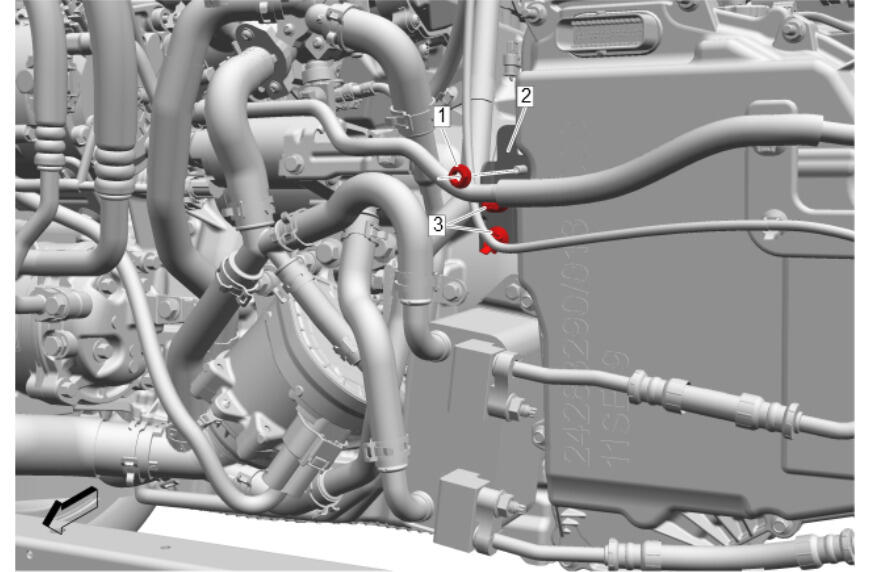

  9. GM5429230Courtesy of GENERAL MOTORS COMPANY

    Transmission Wiring Harness Bracket (2) - Install

  10. Transmission Wiring Harness Bracket Nut (1) - Install and tighten 9 N.m (80 lb in)
  11. Wiring Harness Retainer (3) - Install

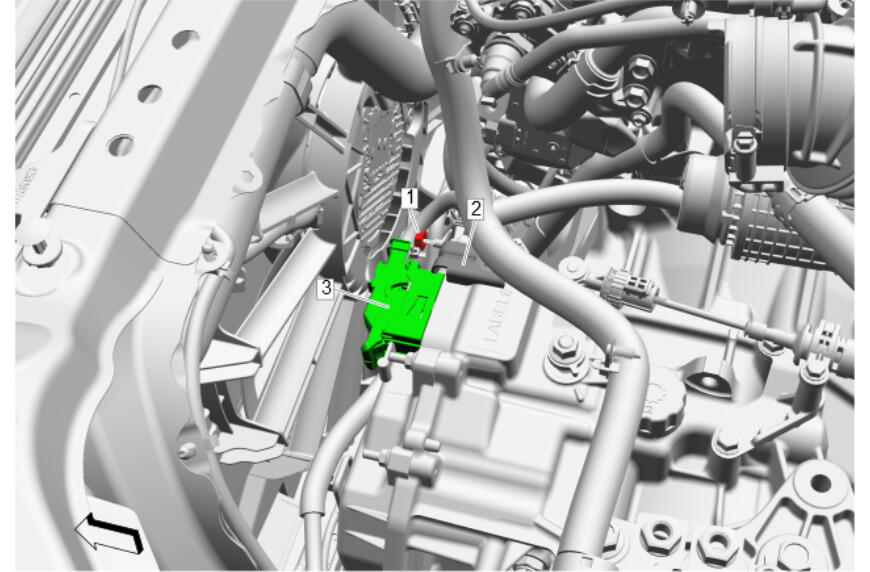

  12. GM5429229Courtesy of GENERAL MOTORS COMPANY

    Transmission Wiring Harness Bracket (2) - Install

  13. Transmission Wiring Harness Bracket Nut (1) - Install and tighten 9 N.m (80 lb in)
  14. Connect the control valve body transmission control module electrical connector (3).

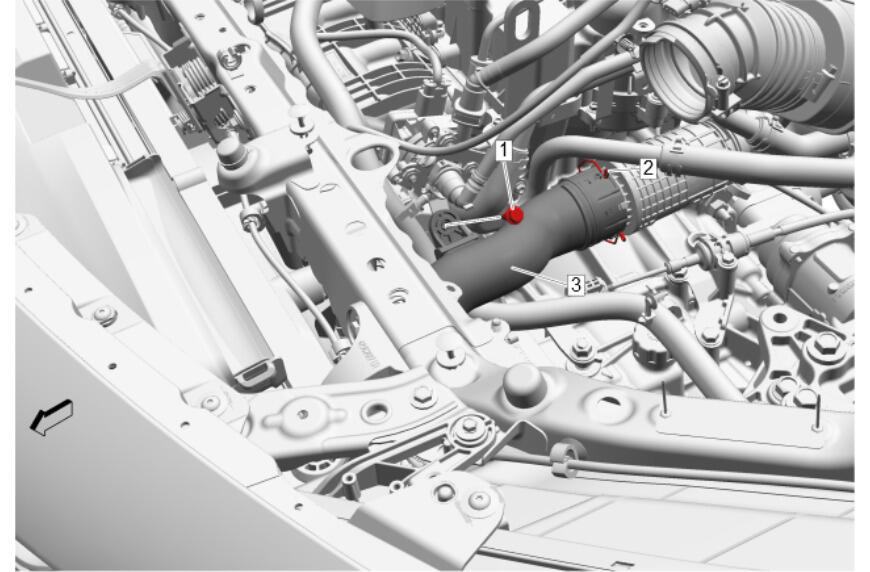

  15. GM5429228Courtesy of GENERAL MOTORS COMPANY

    Install the front part (3) of the charge air cooler inlet air hose to the rear part.

  16. Retainer Spring (2) - Engage
  17. Charge Air Cooler Inlet Air Tube Bolt (1) - Install and tighten 9 N.m (80 lb in)

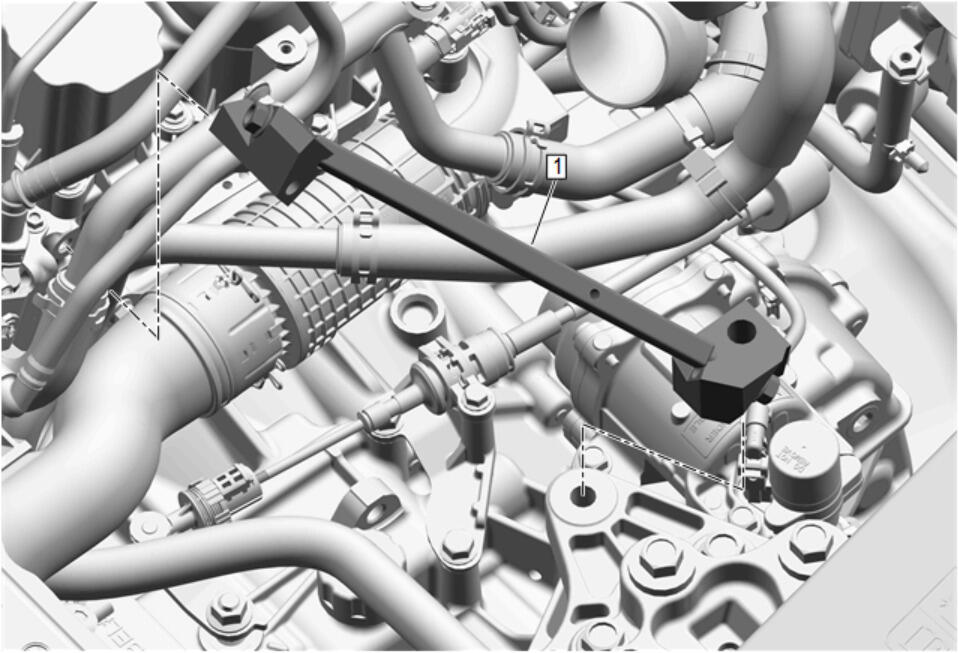

  18. GM5280390Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Brace (1) - Install - Engine Mount Brace Replacement (RH) , or Engine Mount Brace Replacement (LH, FWD) , or Engine Mount Brace Replacement (LH, AWD) , or Engine Mount Brace Replacement (Rear)

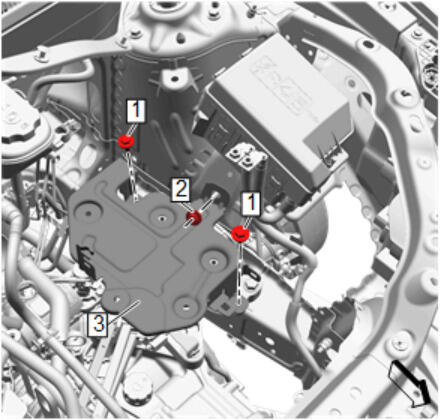

  19. GM5278795Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (3) - Install - Battery Tray Replacement

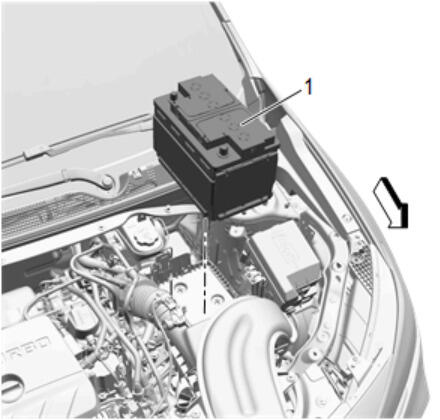

  20. GM5277669Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install - Battery Replacement

  21. GM5209007Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement

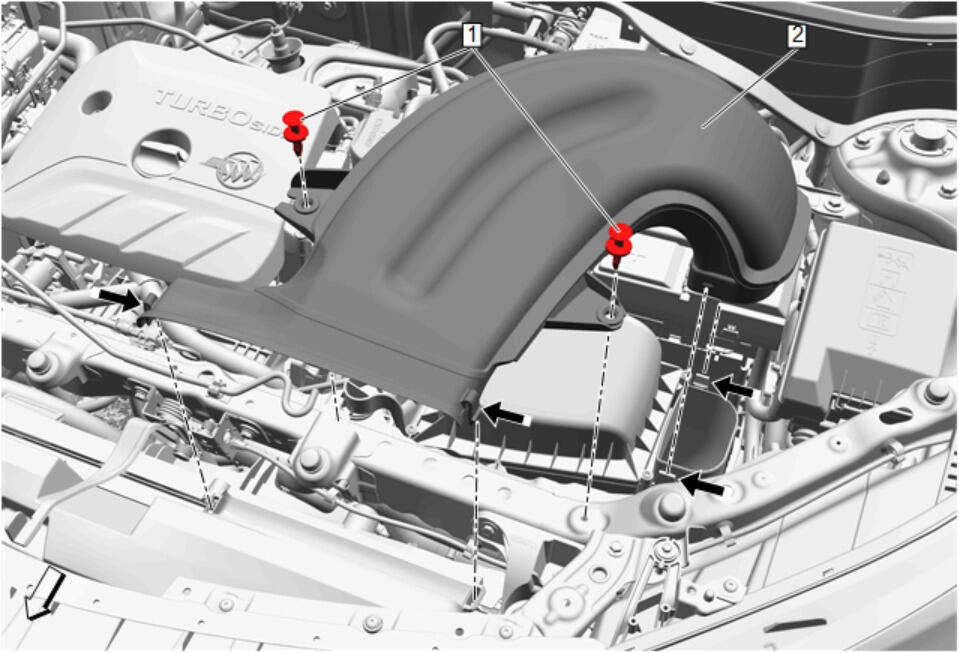

  22. GM5209013Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct (2) - Install - Intake Air Duct Replacement

  23. Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
