Fan Control Module Replacement

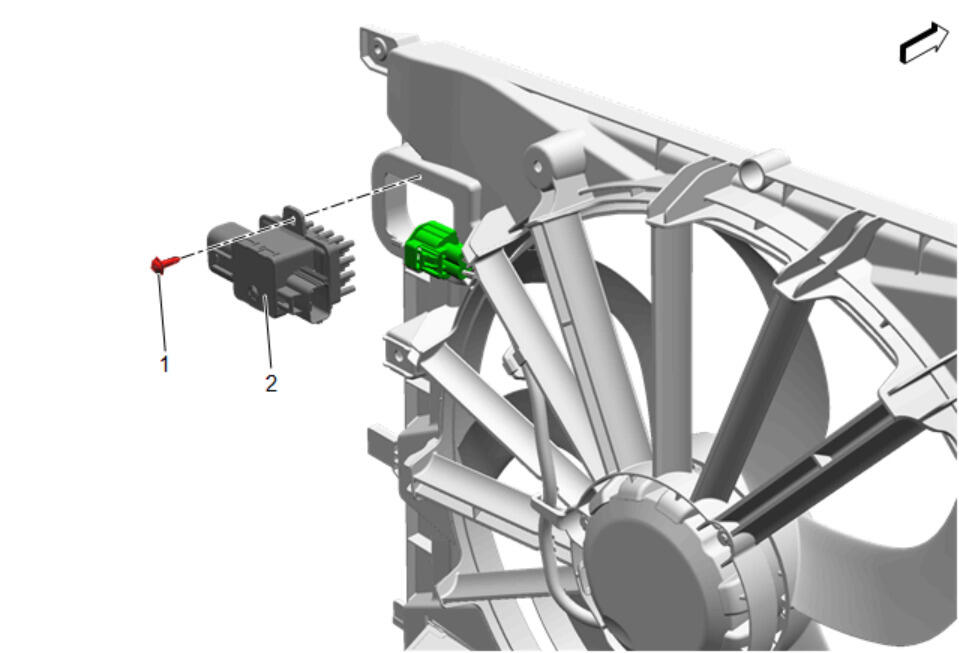

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Assembly Replacement |
|
| 1 | Fan Control Module Fastener
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Fan Control Module Procedure Disconnect the electrical connectors. |
