Ignition and Start Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

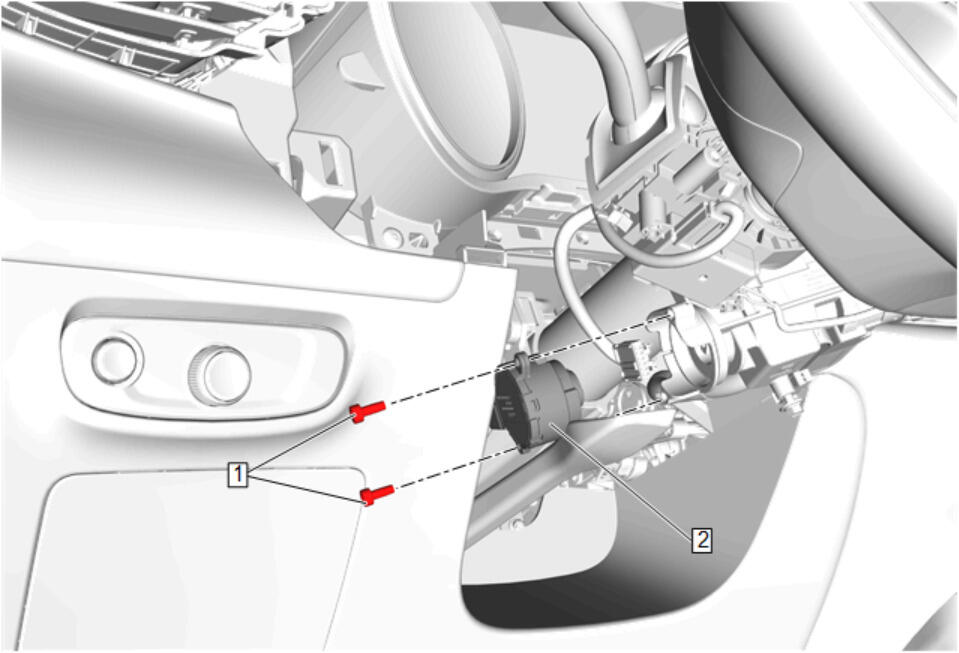

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection Instrument Panel Steering Column Lower Trim Cover Replacement
1	Ignition and Start Switch Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 1.8 N.m (16 lb in)
2	Ignition and Start Switch Procedure Disconnect the electrical connector. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

Callout

Component Name

Preliminary Procedures

Ignition and Start Switch Bolt [2x]

CAUTION:

Tighten
1.8 N.m (16 lb in)

Ignition and Start Switch

Procedure

Disconnect the electrical connector.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
