Installation Procedure

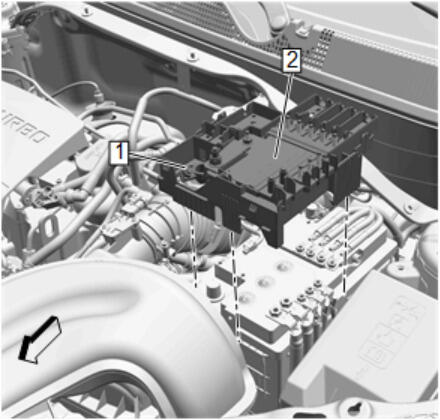

  1. GM5277660Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Battery Distribution Engine Compartment Fuse Block (2) - Install

  2. Battery Positive Post Clamp Nut (1) - Tighten 15 N.m (11 lb ft)

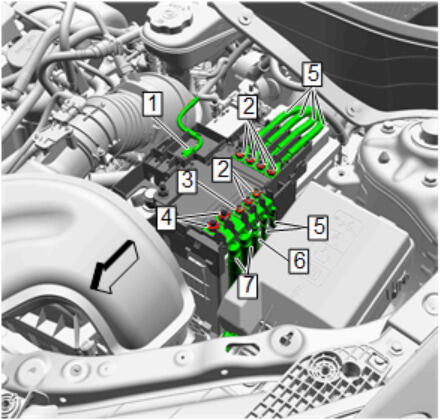

  3. Fig 1: Identifying Battery Distribution Engine Compartment Fuse Block Components
    GM5277659Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

  4. Battery Positive Cable (7) - Install
  5. Battery Positive Cable Nut (4) @ Battery Distribution Engine Compartment Fuse Block - Install and tighten 16 N.m (12 lb ft)
  6. Engine Wiring Harness (6) - Install
  7. Engine Wiring Harness Terminal Nut (3) @ Battery Distribution Engine Compartment Fuse Block - Tighten 9 N.m (80 lb in)
  8. Body Wiring Harness (5) - Install
  9. Body Wiring Harness Terminal Nut (2) @ Battery Distribution Engine Compartment Fuse Block - Tighten 9 N.m (80 lb in)

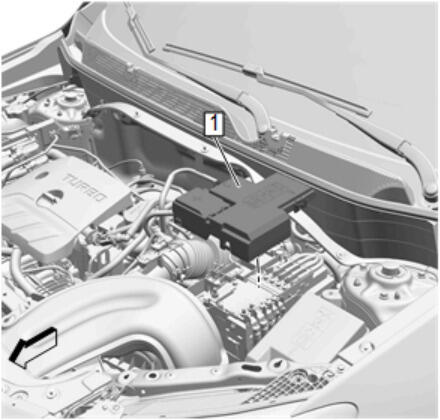

  10. GM5277658Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block Cover (1) - Remove

  11. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
