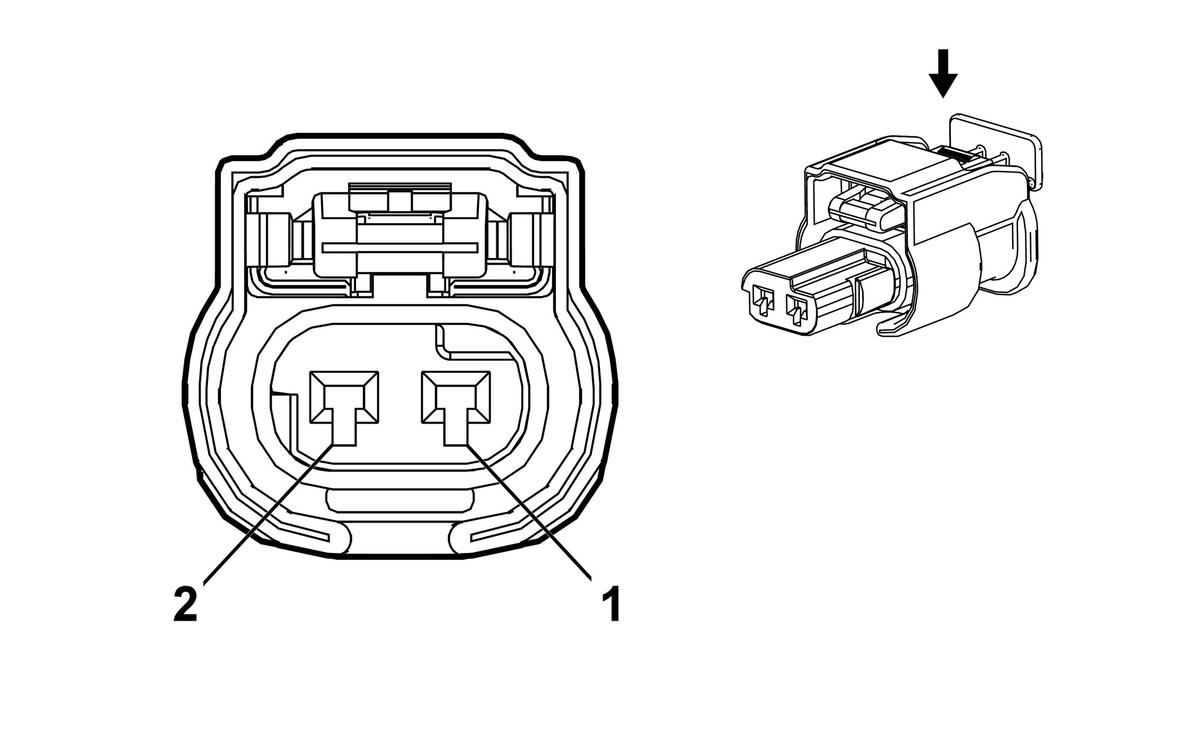

B59L Front Impact Sensor - Left
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13509970
- Service Connector: Not Available
- Description: 2 - Way F 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/YE |
354 |
Left Front Impact Discriminating Sensor Signal |
I |
- |
| 2 |
0.5 |
BK/OG |
5045 |
Left Front Impact Discriminating Sensor Low Reference |
I |
- |
