Front Seat Heater Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

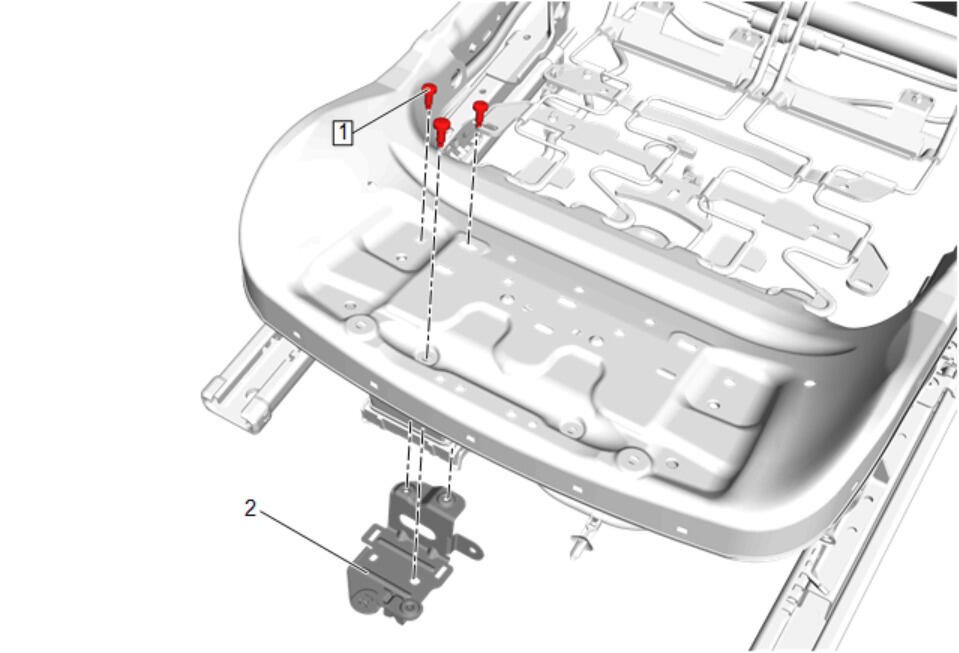

Callout	Component Name
Preliminary Procedures Front Seat Cushion Cover and Pad Replacement Front Seat Heater Vent Control Hardware Module Replacement
1	Front Seat Heater Control Module Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Heater Control Module Bracket

Callout

Component Name

Preliminary Procedures

Front Seat Heater Control Module Bracket Bolt [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Heater Control Module Bracket
