Outside Rearview Mirror Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Side Door Window Garnish Molding Replacement |
|

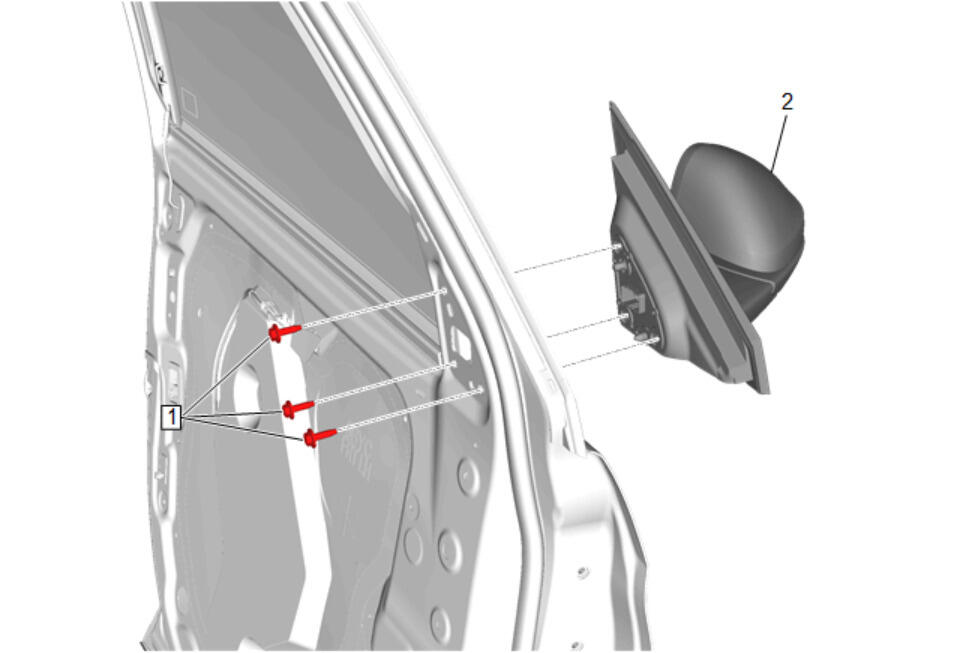

| 1 | Outside Rearview Mirror Bolt [3x]
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Outside Rearview Mirror Procedure Disconnect the electrical connector. |
