Front Side Door Window Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Switch Mount Plate Replacement

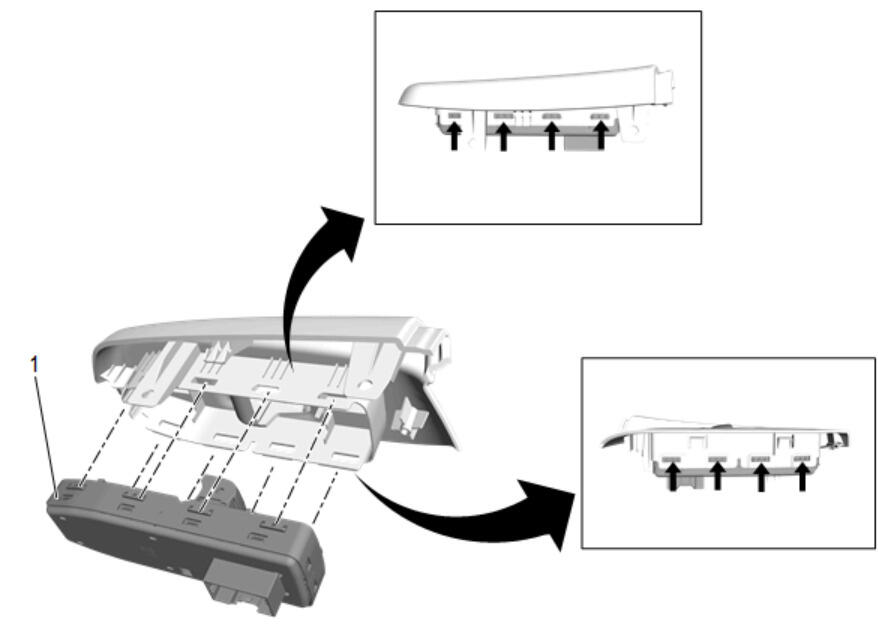

1	Front Side Door Window Switch Procedure Use a flat bladed plastic tool to remove. Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.

Callout

Component Name

Front Side Door Window Switch

Procedure

Use a flat bladed plastic tool to remove.
Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
