Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

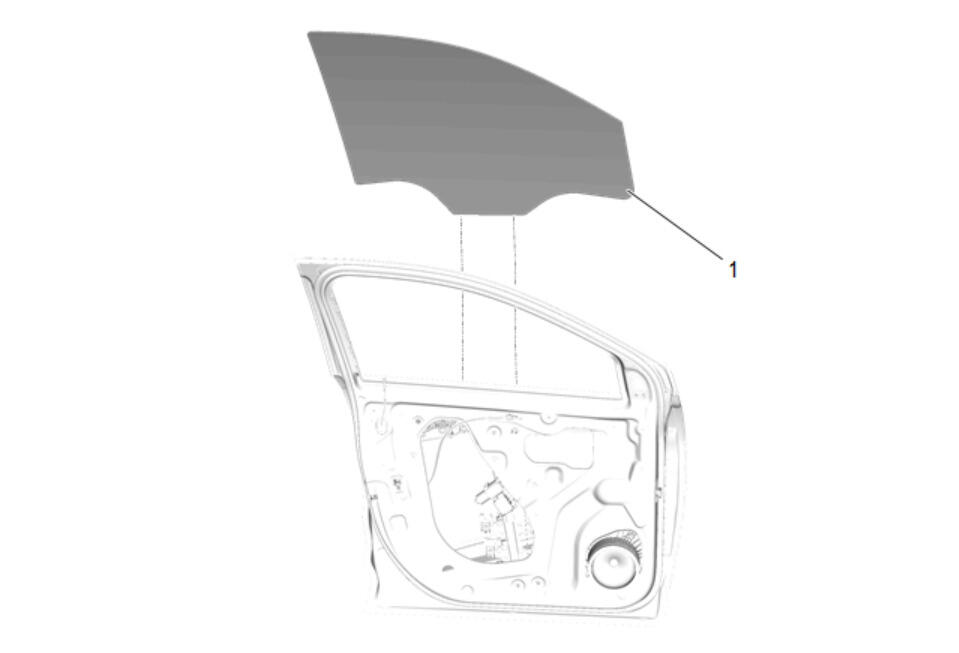

Place the front side door window (1) into the door frame.
Courtesy of GENERAL MOTORS COMPANY

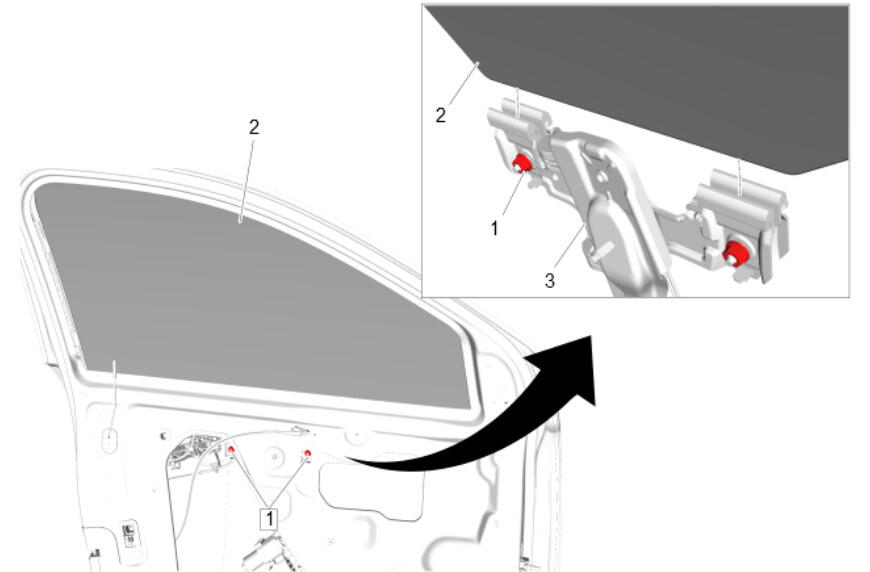

Front Side Door Window (2) @ Front Side Door Window Regulator (3) - Install

CAUTION:

Front Side Door Window Regulator Nut (1) - Install and tighten [2x] 11 N.m (97 lb in)
Place the front side door window in the full down position.
Courtesy of GENERAL MOTORS COMPANY

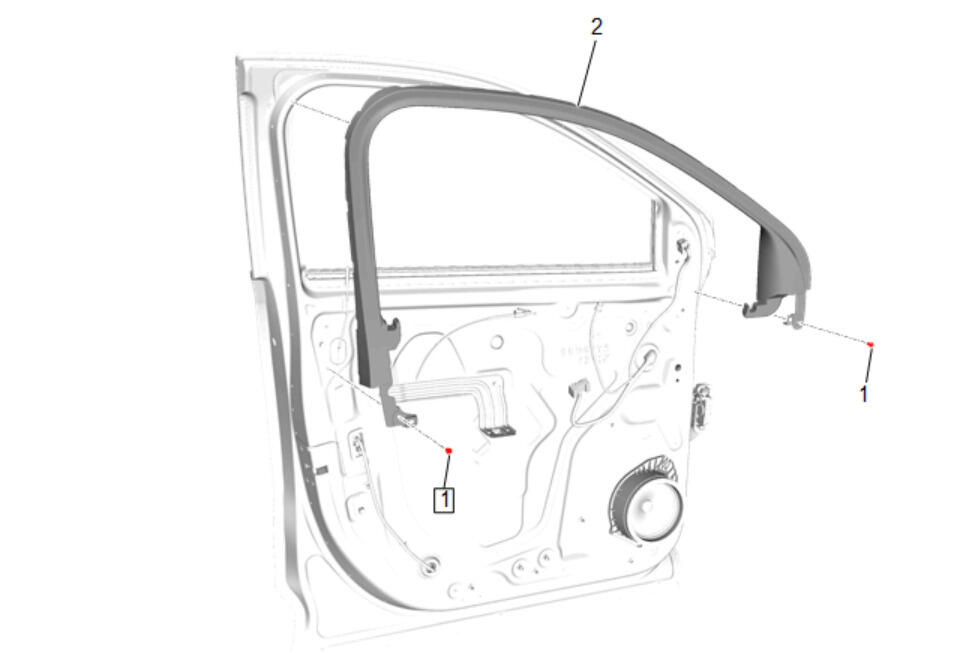

Front Side Door Window Frame Rear Applique (2) - Install - Front Side Door Window Frame Rear Applique Replacement
Courtesy of GENERAL MOTORS COMPANY

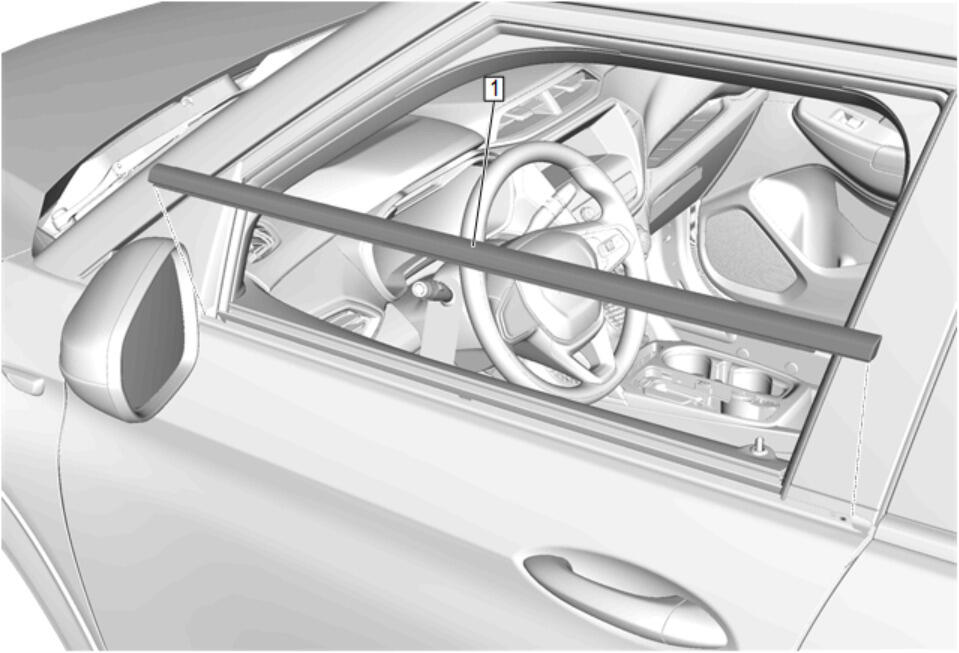

Front Side Door Window Belt Reveal Molding (1) - Install - Front Side Door Window Belt Reveal Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

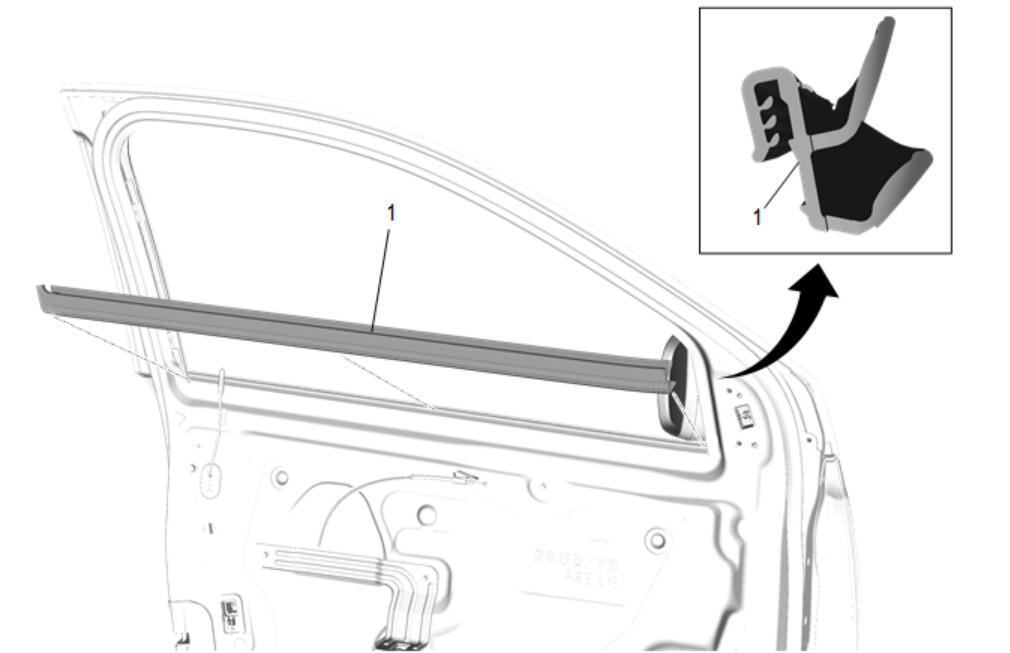

Front Side Door Window Inner Sealing Strip (1) - Install - Front Side Door Window Inner Sealing Strip Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Garnish Molding (2) - Install - Front Side Door Window Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

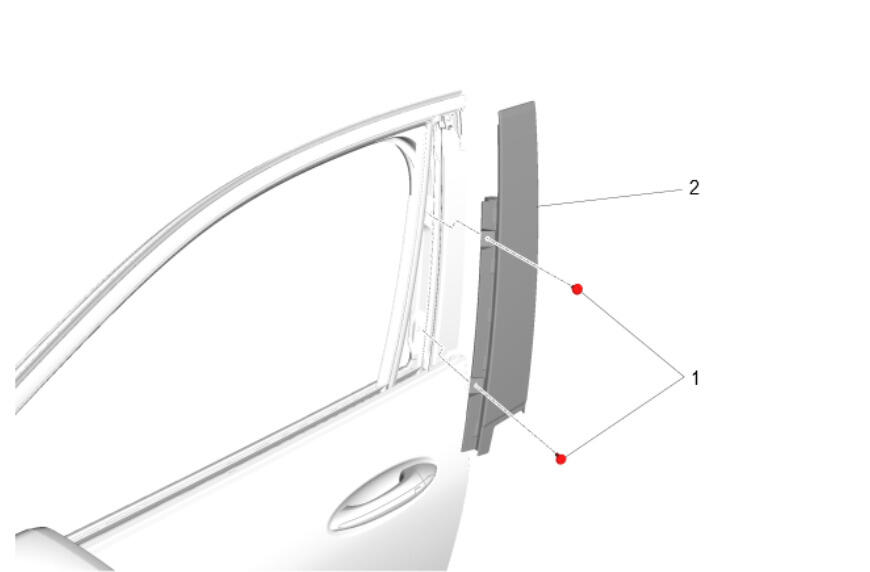

Front Side Door Water Deflector (1) - Install - Front Side Door Water Deflector Replacement
Inspect the door window for proper operation before installing the door trim panel.
