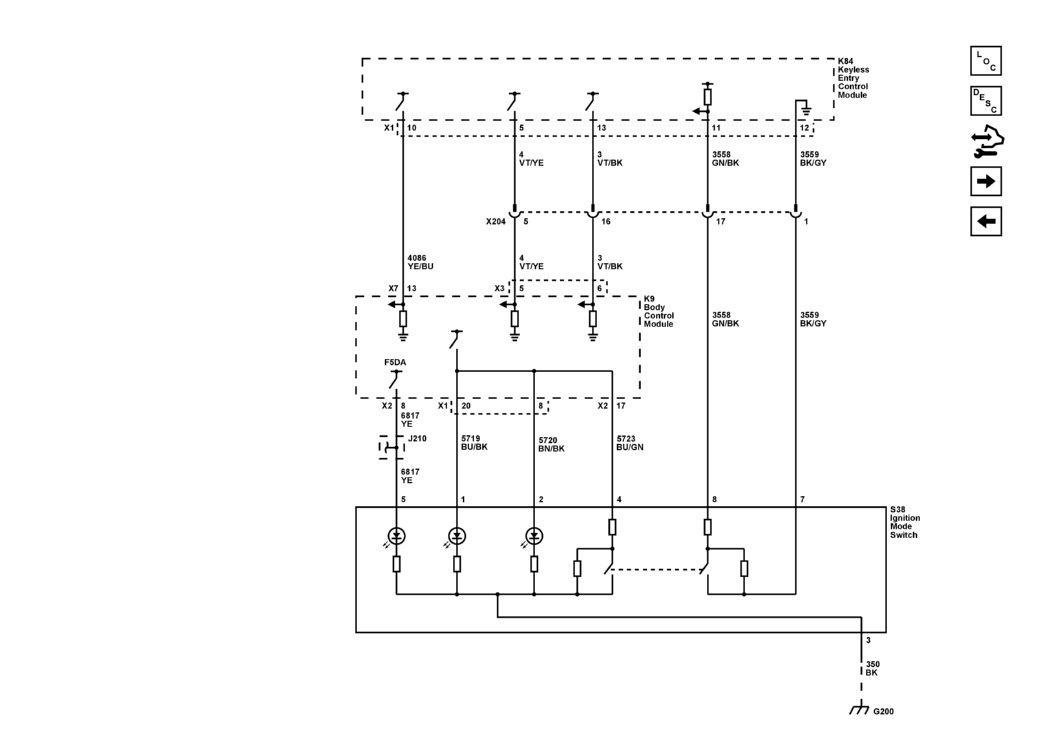

Home >> Chevrolet >> 2021 >> Trailblazer L >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Start (BTM)
