Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

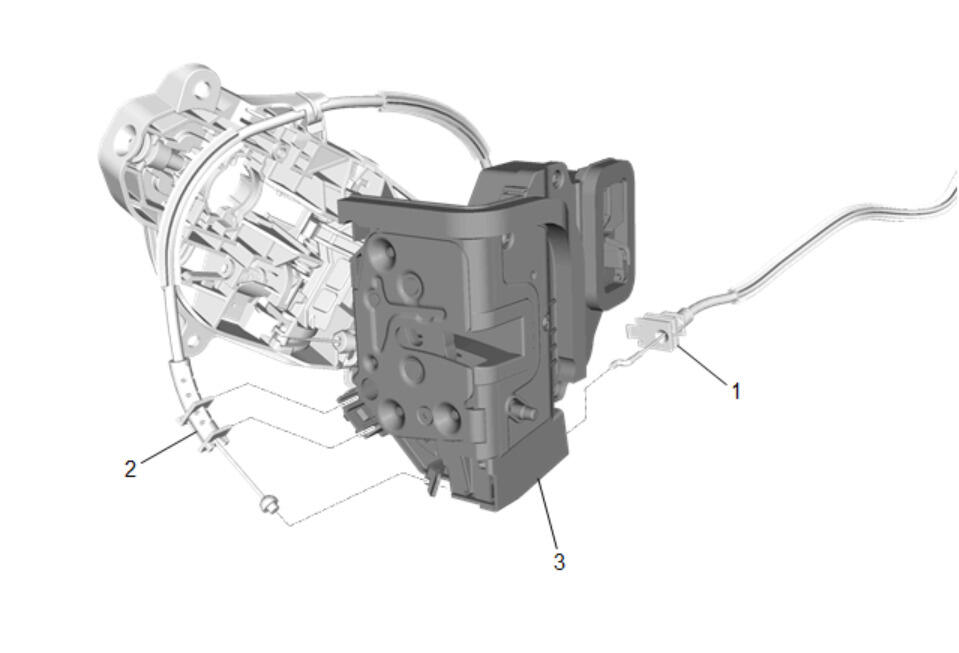

Rear Side Door Inside Handle Cable (1) @ Rear Side Door Latch (3) - Install - Rear Side Door Inside Handle Cable Replacement
Rear Side Door Outside Handle Cable (2) @ Rear Side Door Latch (3) - Install - Rear Side Door Outside Handle Cable Replacement
Connect and clip the electrical connector in place.
Courtesy of GENERAL MOTORS COMPANY

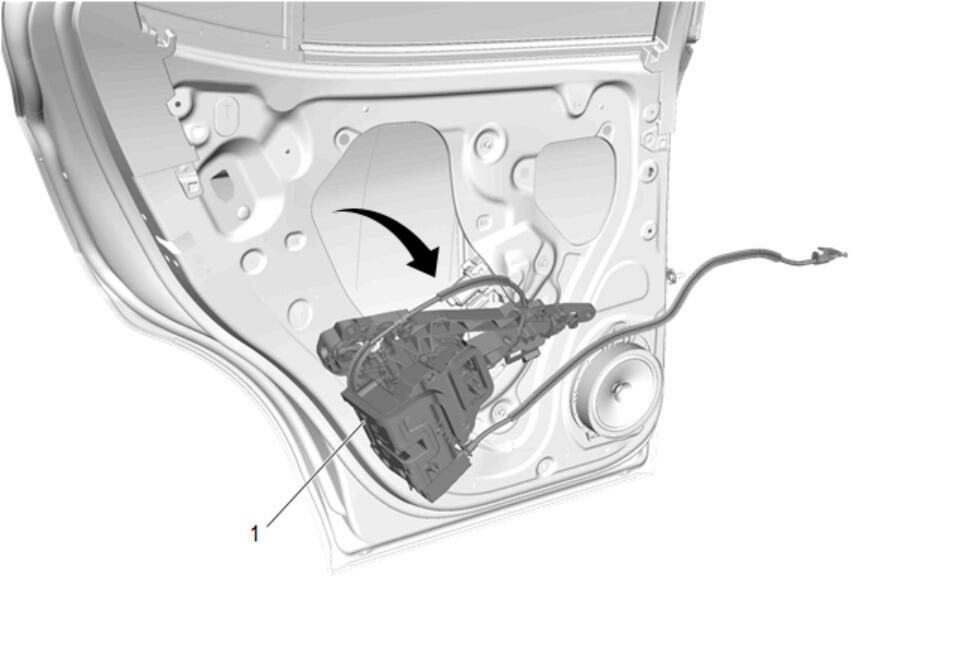

Install the rear side door latch with rear side door outside handle bracket (1) to the rear side door.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

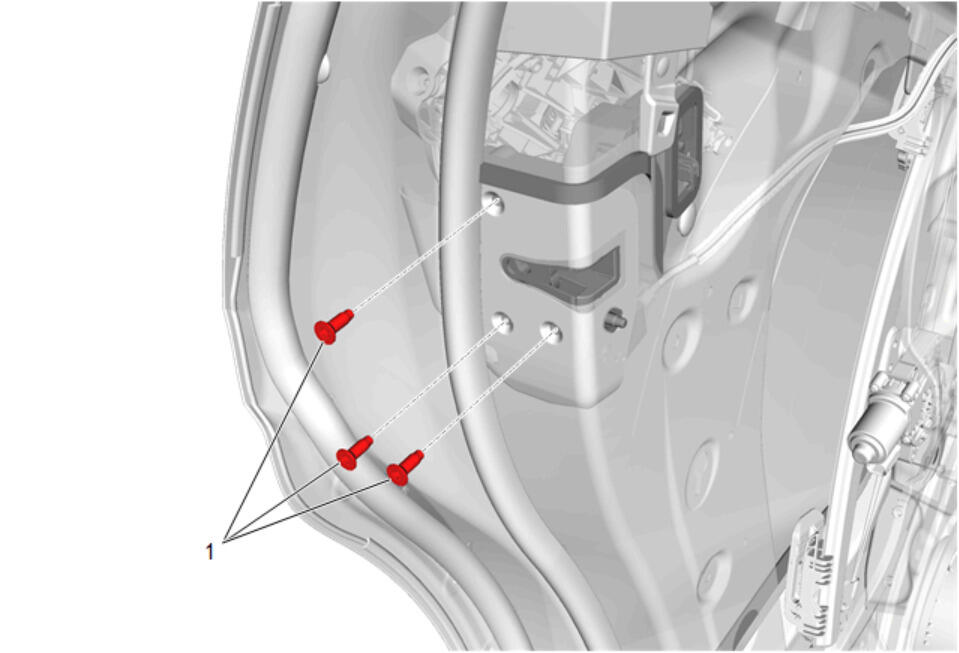

Rear Side Door Latch Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Outside Handle Bracket Fastener (1) - Install and tighten 4.7 N.m (42 lb in)
Courtesy of GENERAL MOTORS COMPANY

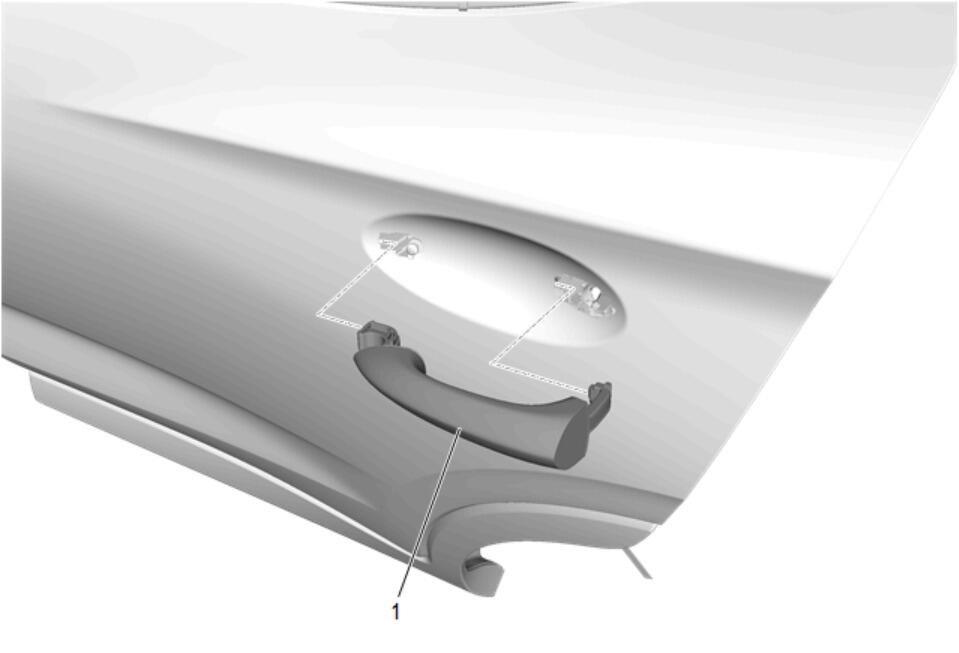

Rear Side Door Outside Handle (1) - Install - Rear Side Door Outside Handle Replacement
Courtesy of GENERAL MOTORS COMPANY

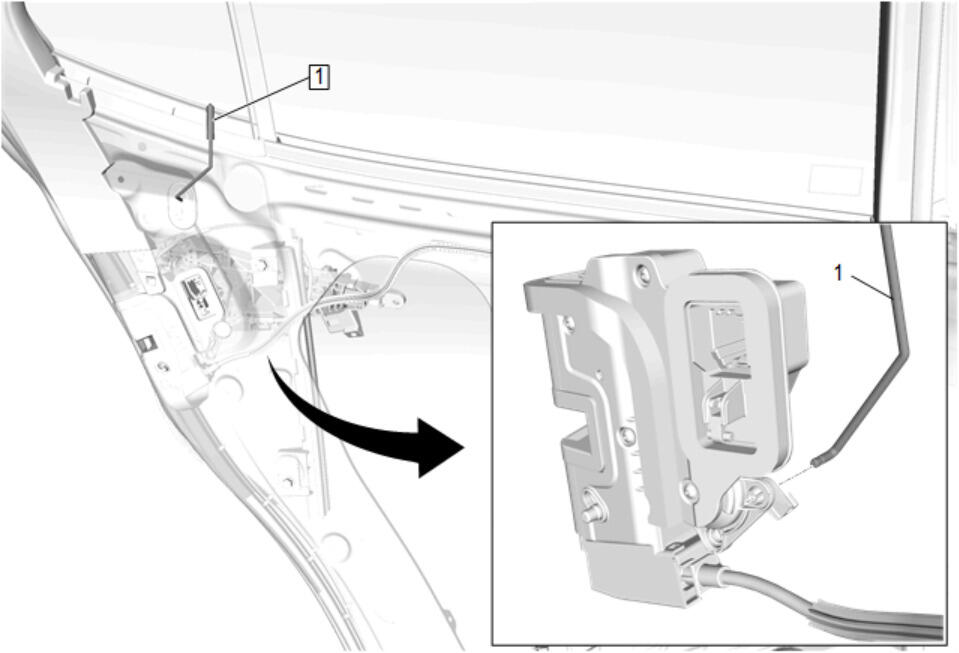

Rear Side Door Locking Rod Knob - (1) Install - Rear Side Door Locking Rod Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

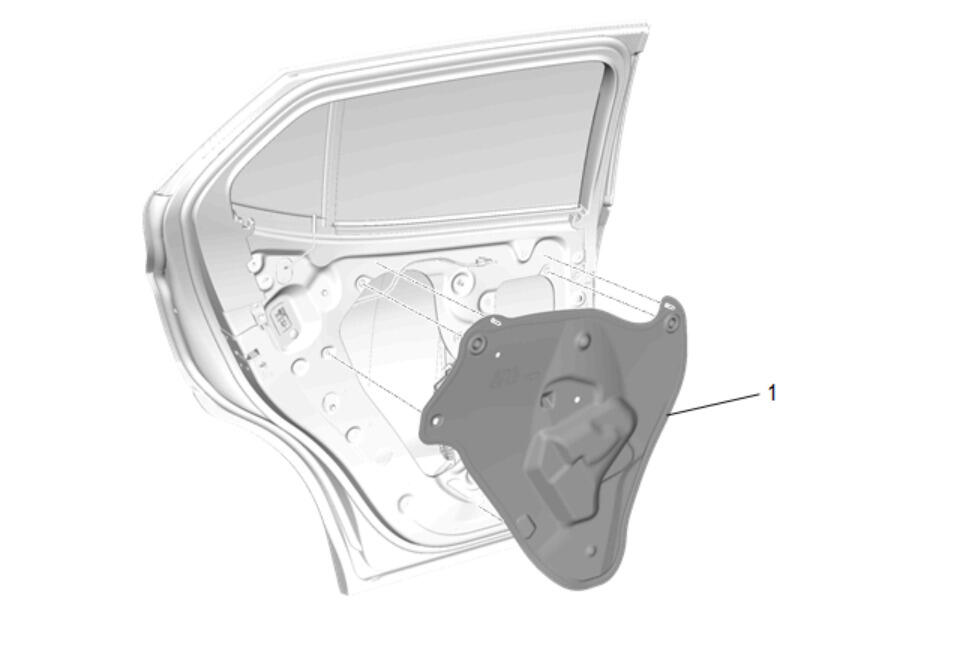

Rear Side Door Water Deflector (1) - Install - Rear Side Door Water Deflector Replacement
Inspect the door window for proper operation before installing the door trim panel.
