Liftgate Latch Striker Replacement

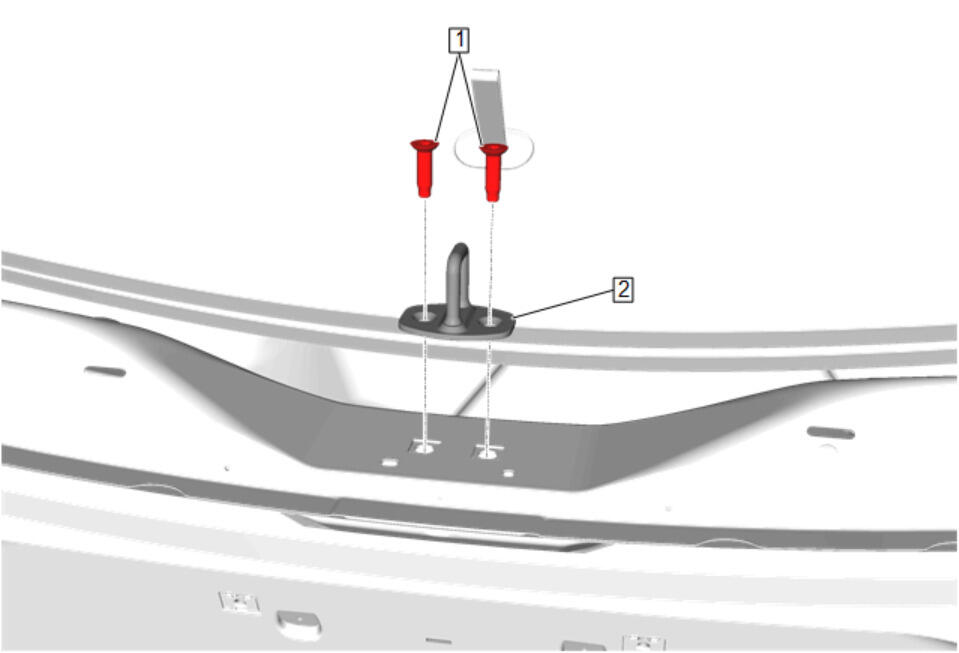

| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Sill Garnish Molding Replacement |
|
| 1 | Liftgate Latch Striker Bolt [2x]
CAUTION:
Procedure Use a grease pencil to outline the striker before removing the bolts. Tighten 22 N.m (16 lb ft) |
| 2 | Liftgate Latch Striker Procedure Adjust the liftgate latch striker after replacing, if needed. |
