Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Position the fork of the brake pedal position sensor over the brake pedal arm pin.

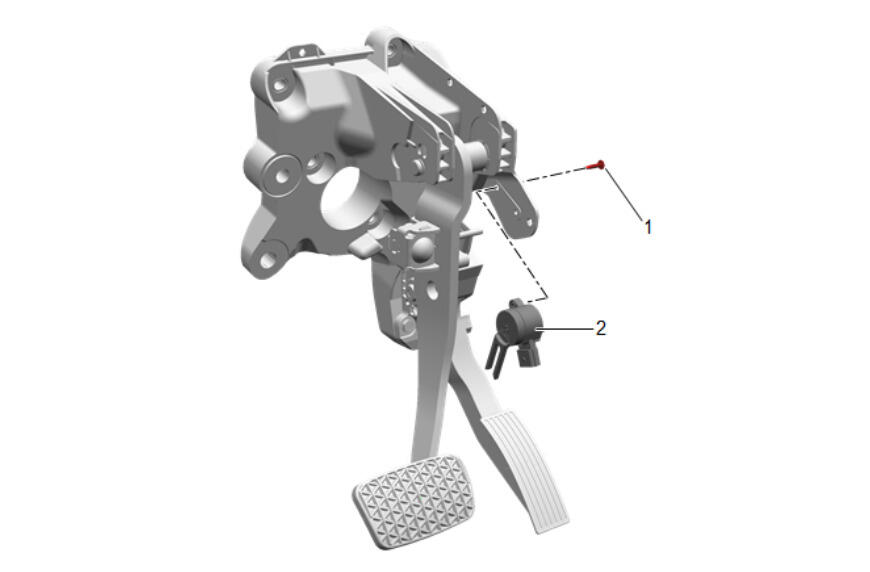

Brake Pedal Position Sensor (2) - Install
Brake Pedal Position Sensor Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

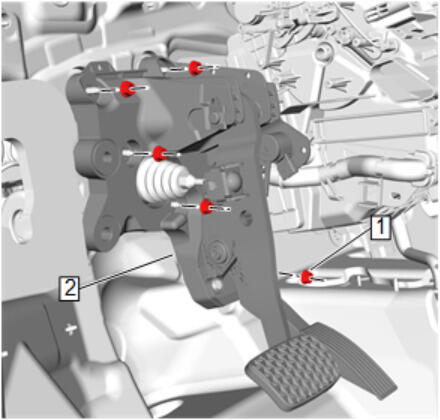

Brake and Accelerator Pedal Assembly (2) - Remove - Brake and Accelerator Pedal Assembly Replacement
Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
