Communication Interface Module Replacement

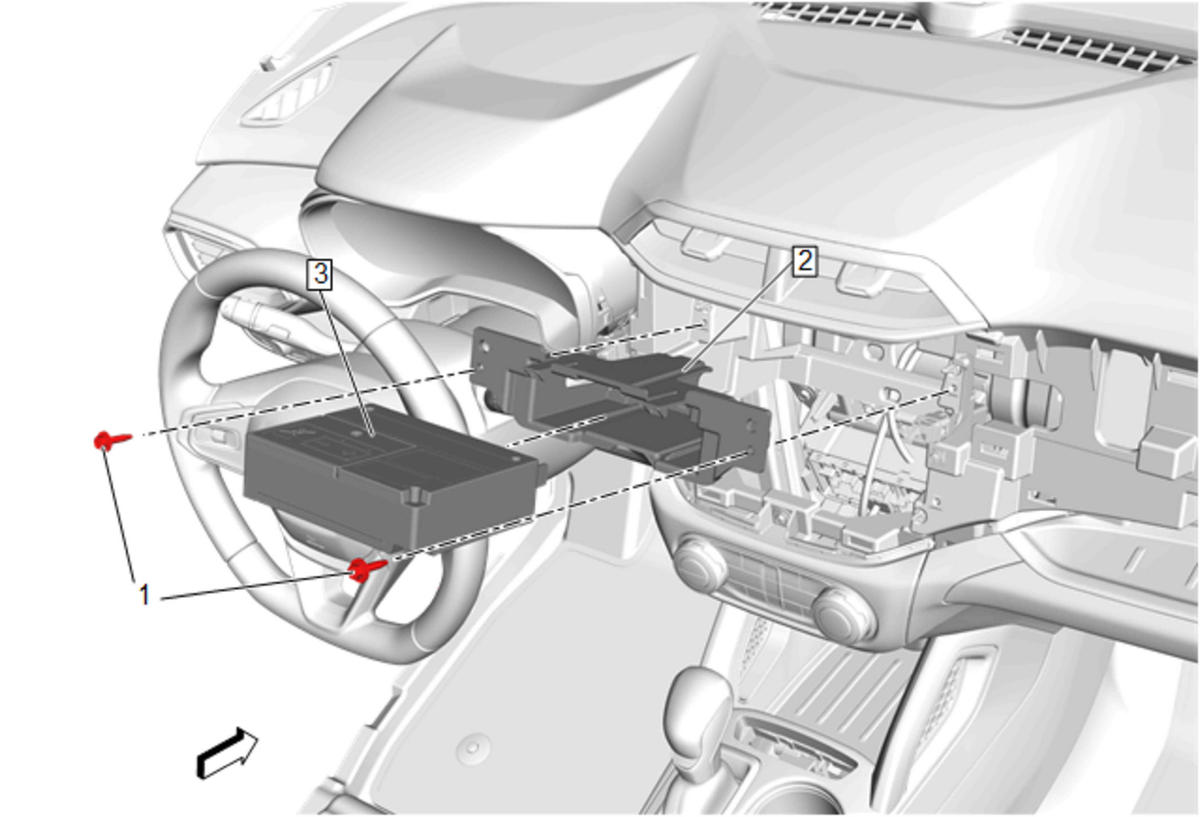

| Callout | Component Name |
|---|---|
| Preliminary Procedure Radio Control Assembly Replacement |
|
| 1 | Communication Interface Module Bracket Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Communication Interface Module Bracket Procedure Disconnect all electrical connectors. |
| 3 | Communication Interface Module Procedure If required, perform the programming and setup procedures. Control Module References |
