Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

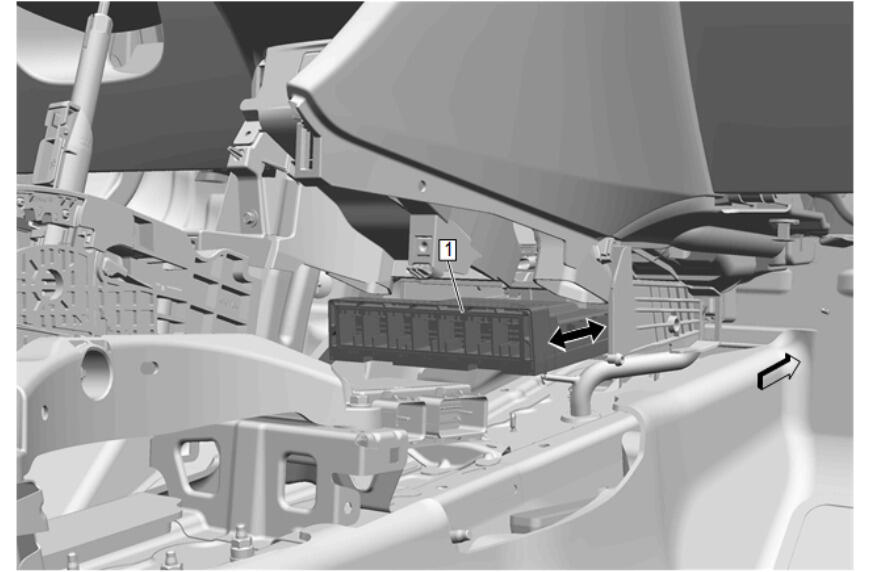

Body Control Module (1) @ Body Control Module Bracket - Install
Courtesy of GENERAL MOTORS COMPANY

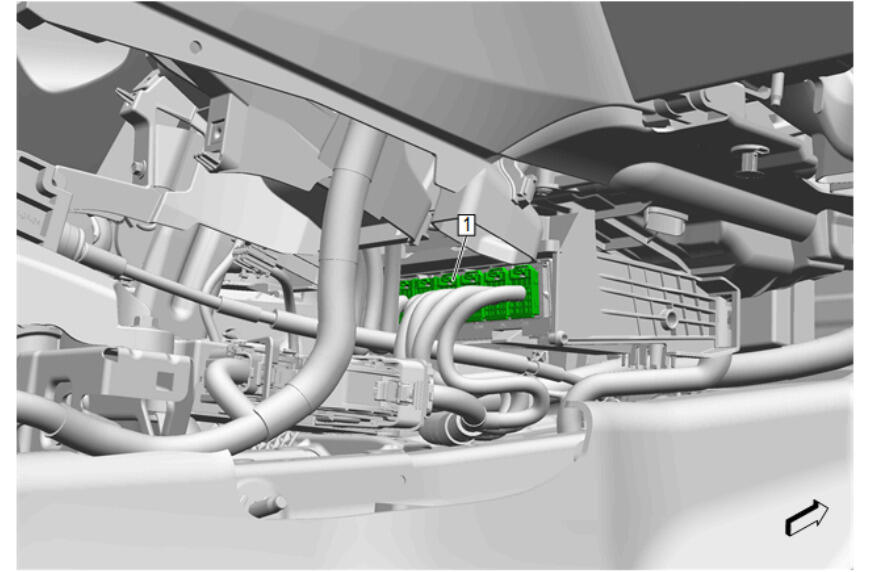

Connect the body control module electrical connectors (1).
Courtesy of GENERAL MOTORS COMPANY

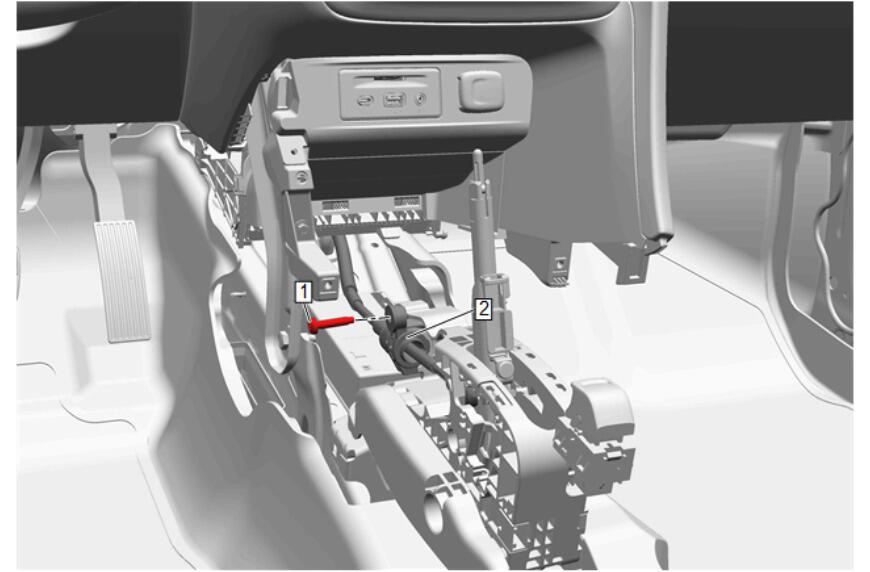

Position the automatic transmission range selector lever cable (2).
Automatic Transmission Range Selector Lever Cable Bolt (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

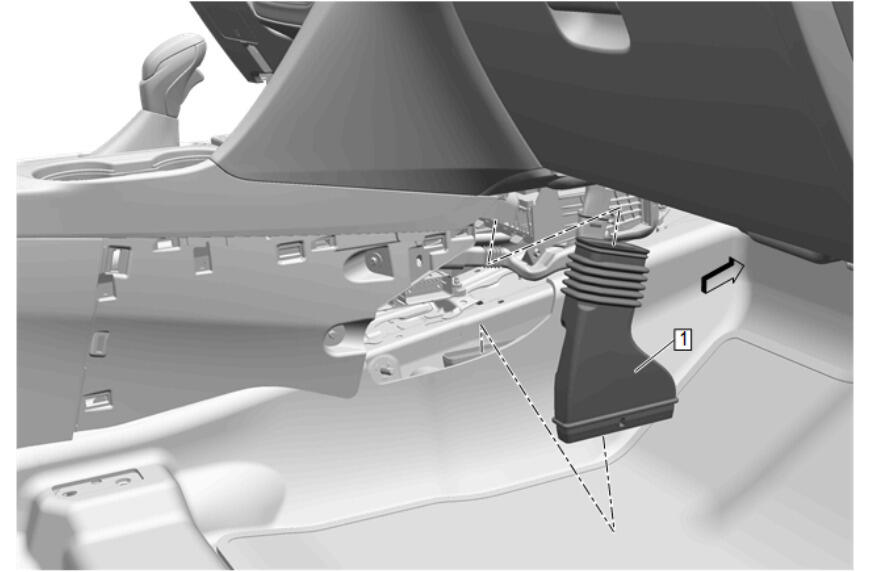

Floor Rear Air Outlet Duct Adapter - Right Side (1) - Install - Floor Rear Air Outlet Duct Adapter Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

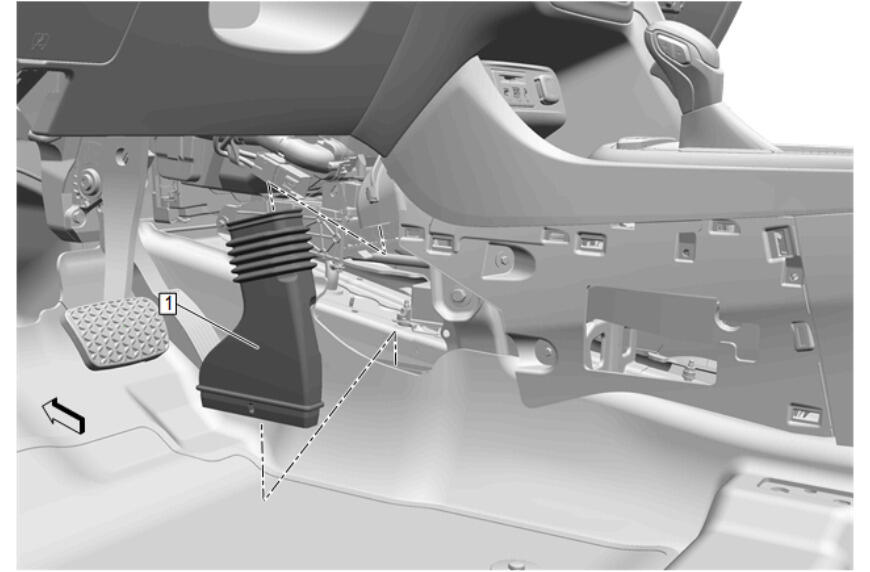

Floor Rear Air Outlet Duct Adapter - Left Side (1) - Install - Floor Rear Air Outlet Duct Adapter Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

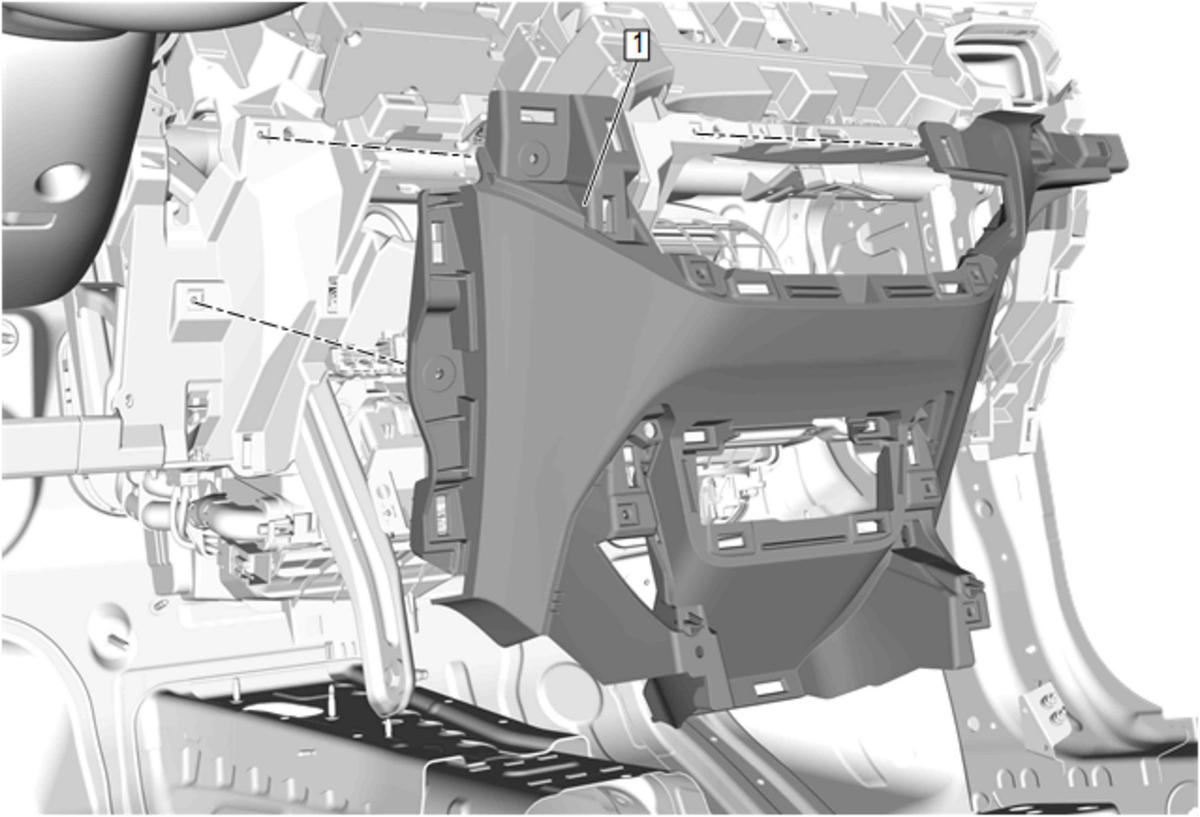

Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

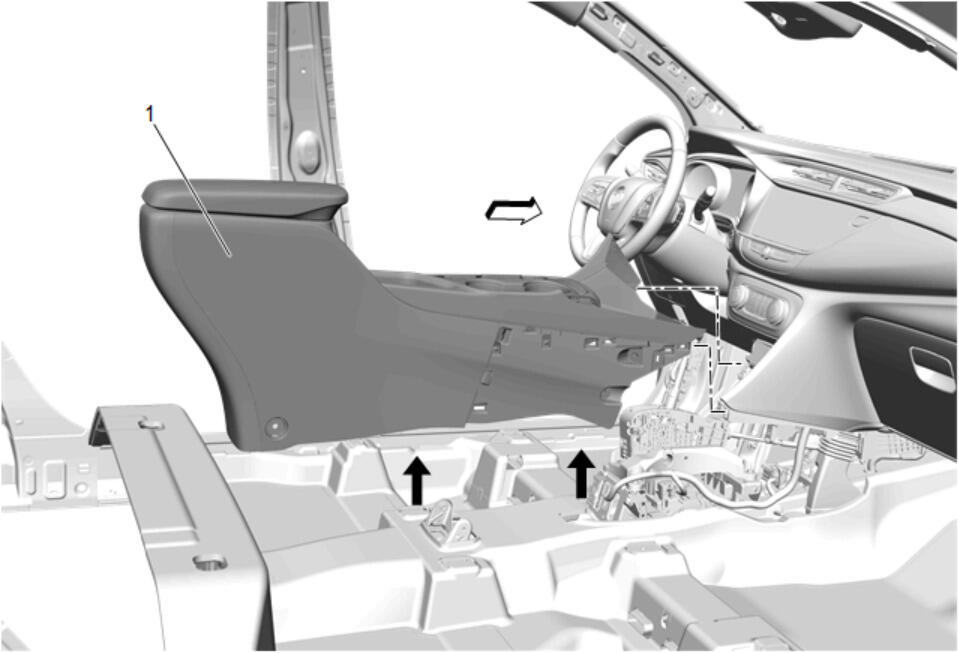

Front Floor Console Assembly (1) - Install - Front Floor Console Replacement
