Body Control Module Bracket Replacement

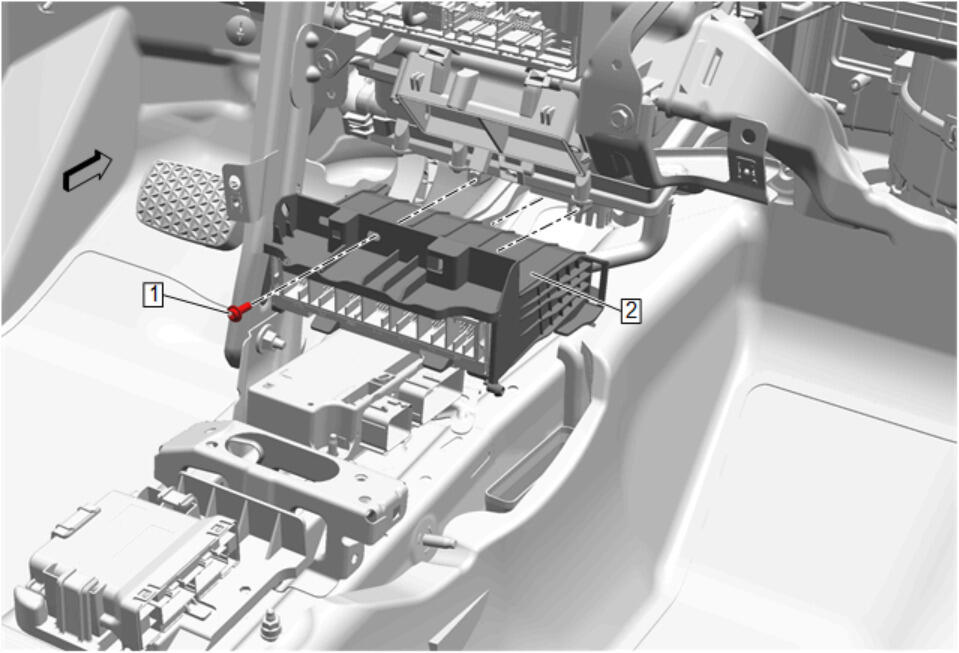

GM5285022Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Lower Center Trim Panel Replacement
  2. Floor Rear Air Outlet Duct Adapter Replacement - Left Side
  3. Floor Rear Air Outlet Duct Adapter Replacement - Right Side
  4. {If equipped} Instrument Panel Compartment Air Duct Replacement
  5. Low Frequency Instrument Panel Antenna Replacement
1 Body Control Module Bracket Bolt
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Body Control Module Bracket

Procedure

  1. Disconnect the electrical connectors from the body control module.
  2. Remove the bracket and replace parts as necessary.
