Throttle Body Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

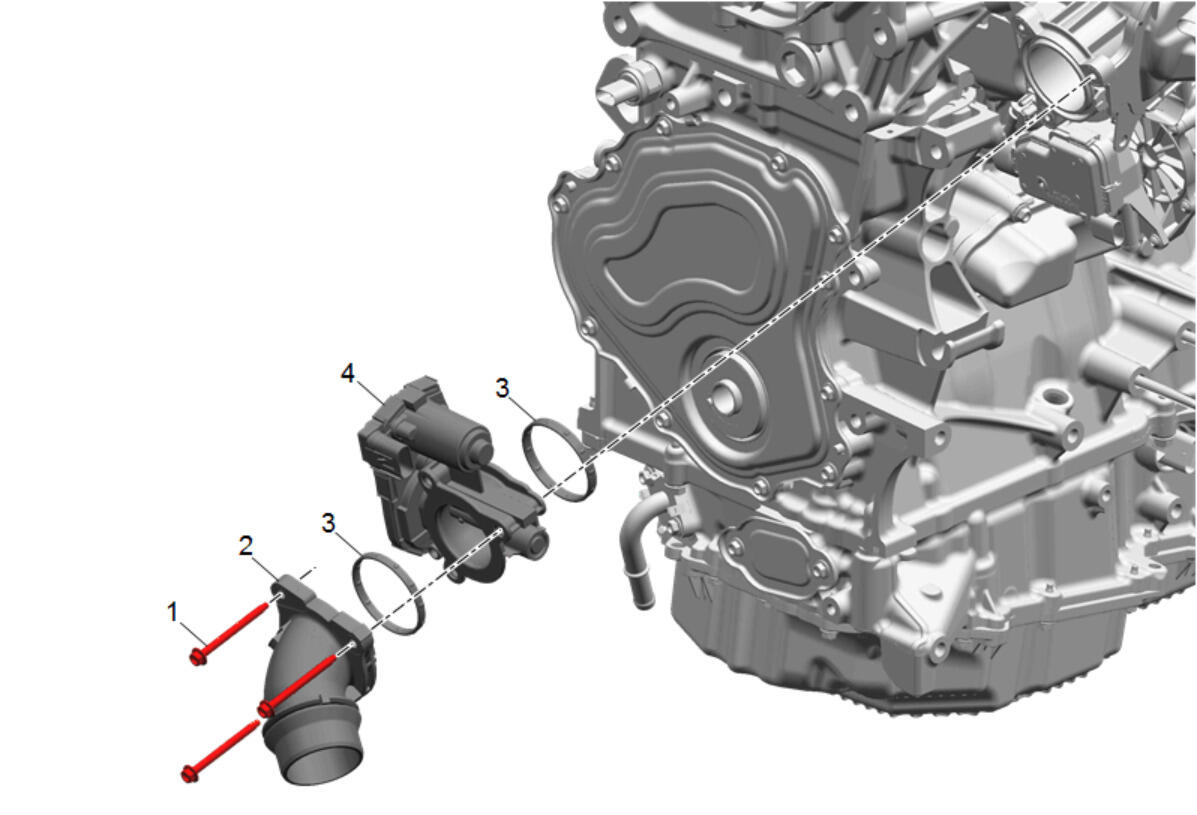

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Remove the charge air cooler outlet air hose from the throttle body adapter only. Charge Air Cooler Outlet Air Hose Replacement Engine Control Module Electrical Connector - Position aside
1	Throttle Body Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Throttle Body Adapter
3	Throttle Body Gasket [2x] Procedure Install a NEW gasket. Do NOT reuse the old gasket.
4	Throttle Body Procedure Disconnect the electrical connector. Perform the intake system learned values reset. Intake System Learned Values Reset Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
