Mass Airflow Sensor Replacement

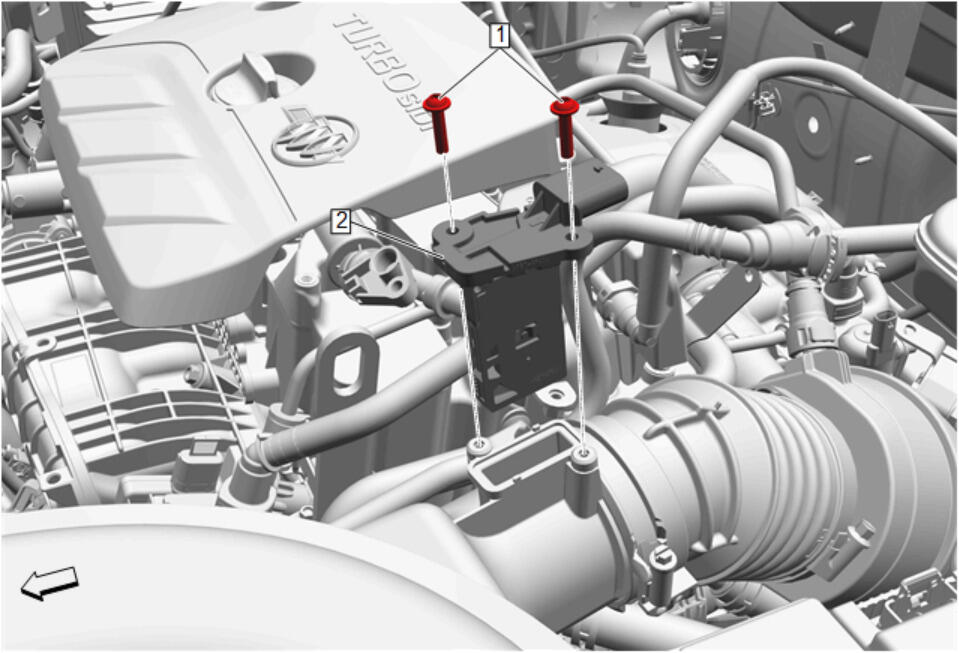

GM5209015Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mass Airflow Sensor Bolt [2x]
CAUTION:

Fastener Caution .


Tighten
1.3 N.m (12 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
