Body Dimensions
>>
Side View (LWB)
Side View (LWB)

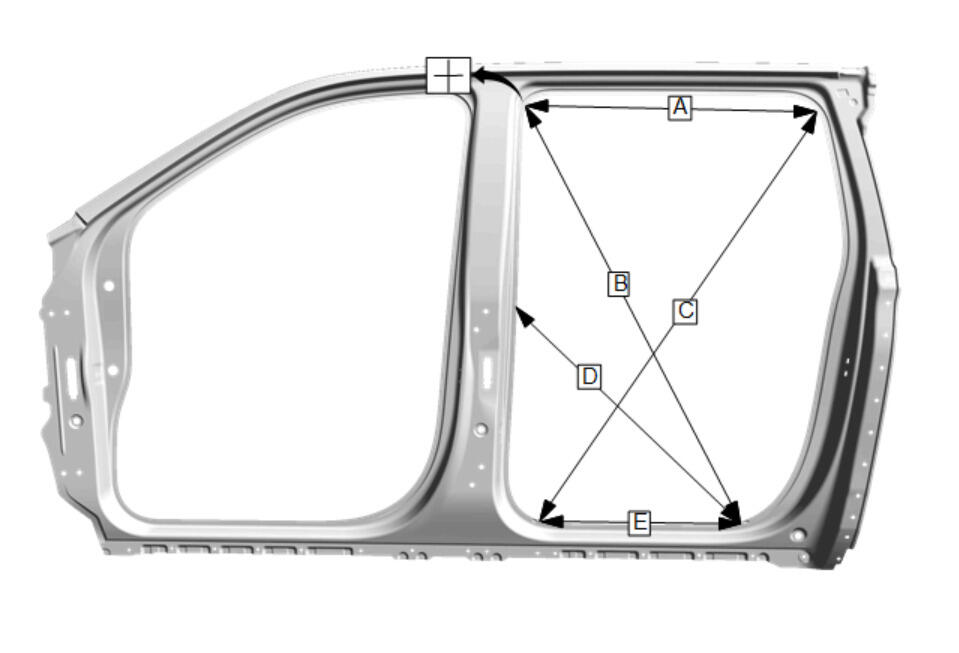

Fig 1: Side View Dimensions And Measurement Points (LWB)
Courtesy of GENERAL MOTORS COMPANY
Number
Measurement (mm)
A
843
B
1355
C
1432
D
890
E
559
Courtesy of GENERAL MOTORS COMPANY
