Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

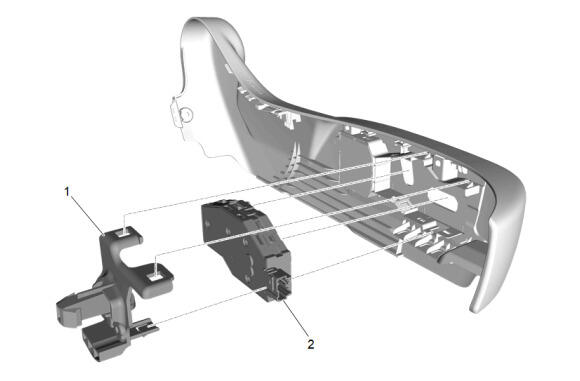

Front Seat Adjuster Switch (2) - Install
Front Seat Adjuster Finish Cover Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

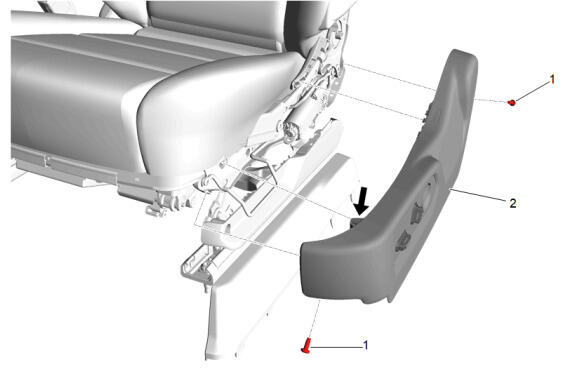

Front Seat Cushion Outer Finish Cover (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Seat Bolt (1) - Install and tighten [2x] - Fastener Specifications
Return the seat to its original position.
Courtesy of GENERAL MOTORS COMPANY

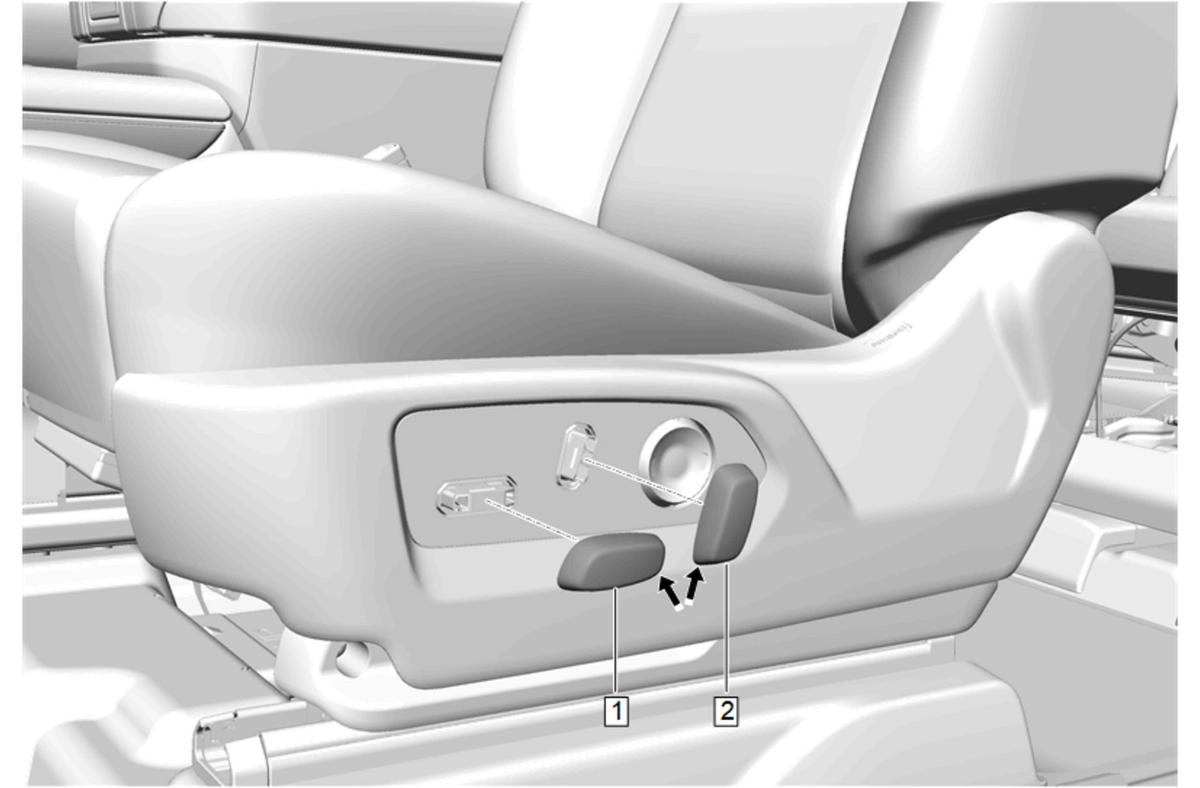

Front Seat Recliner Knob (2) - Install
Front Seat Adjuster Knob (1) - Install
