Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

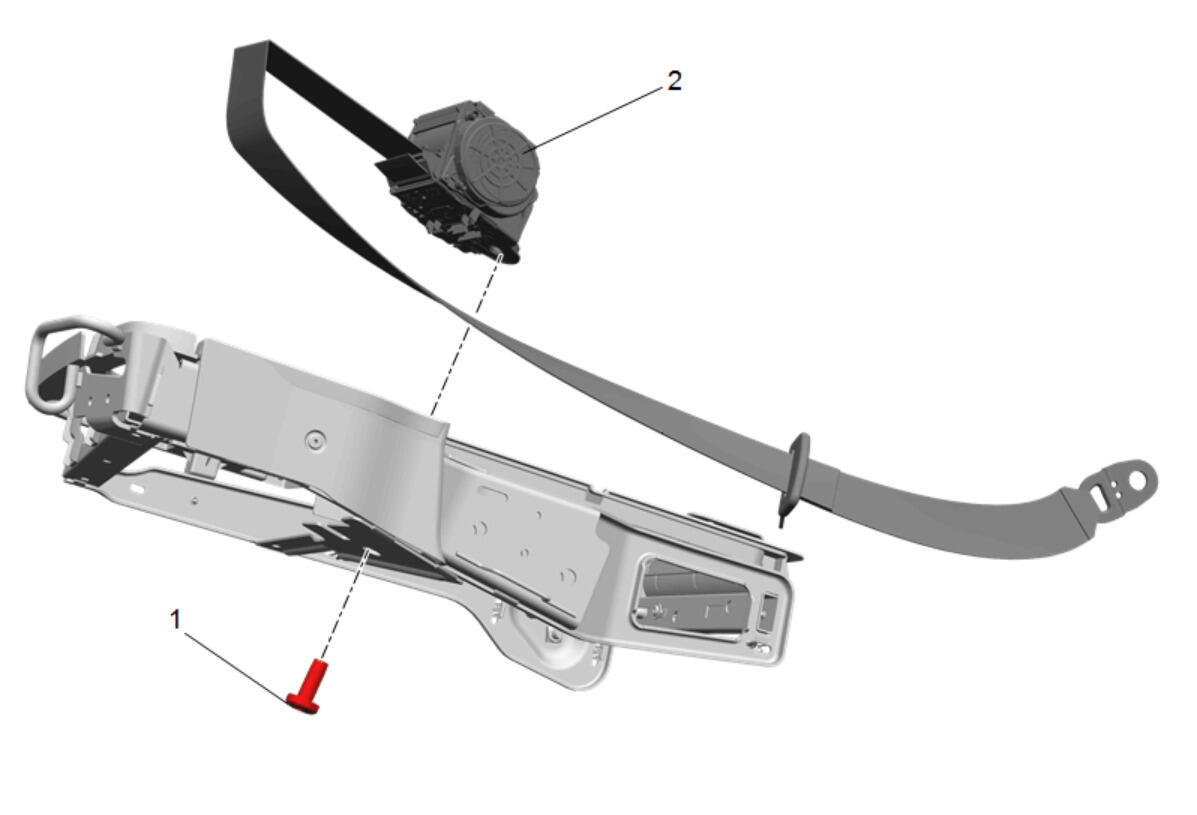

Front Seat Center Belt Retractor (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Seat Belt Retractor Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

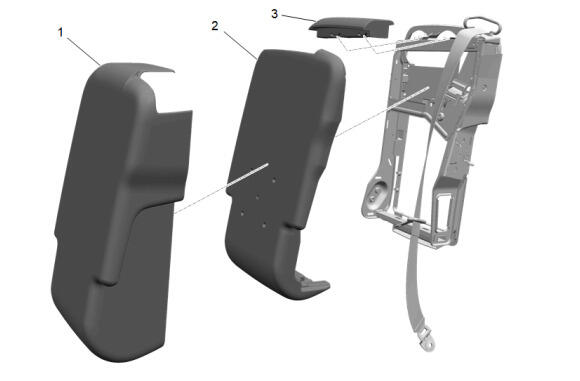

Front Seat Back Pad-Upper (3) - Install
Front Seat Back Pad (2) - Install
Front Seat Back Cover (1) - Install
Connect retainers to the seat back cushion frame.
Connect the J-channel retainers.
Courtesy of GENERAL MOTORS COMPANY

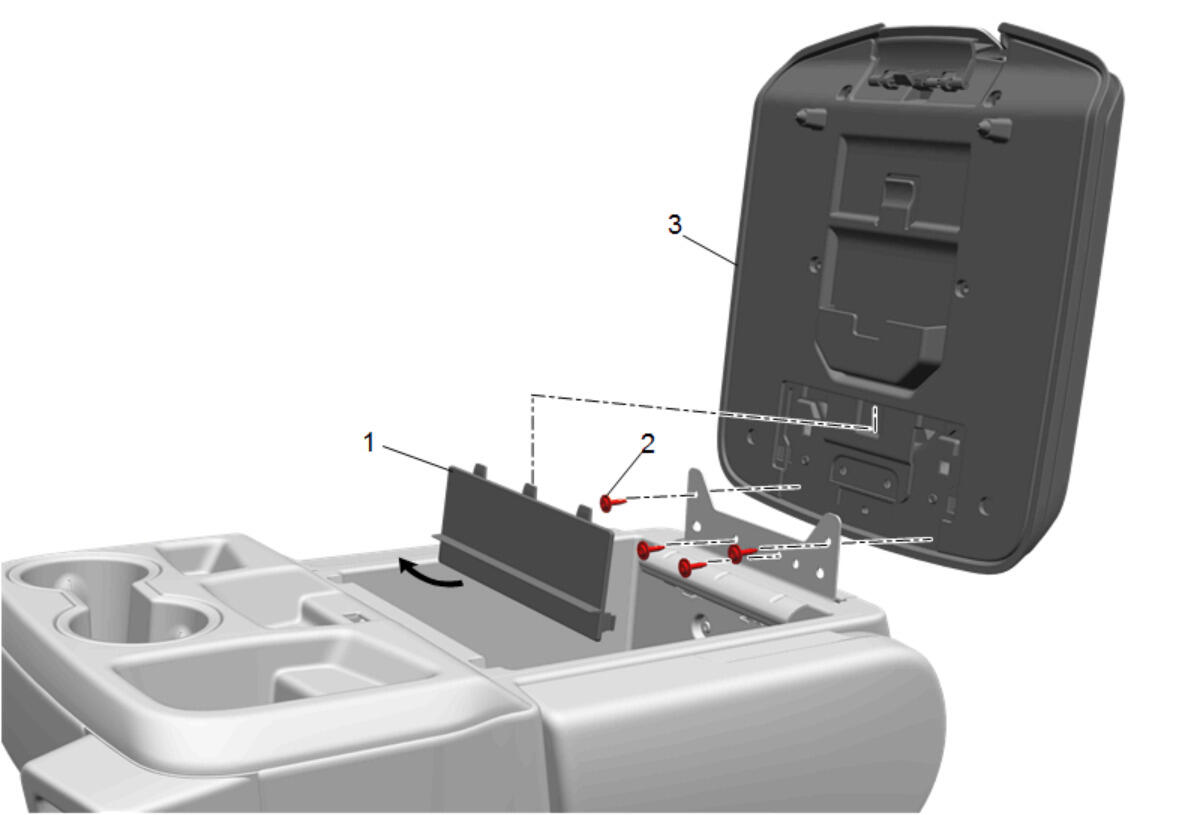

Front Seat Armrest Lid (3) - Install
Front Seat Armrest Lid Bolt (2) - Install and tighten [4x] - Fastener Specifications
Front Seat Armrest Hinge Finish Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

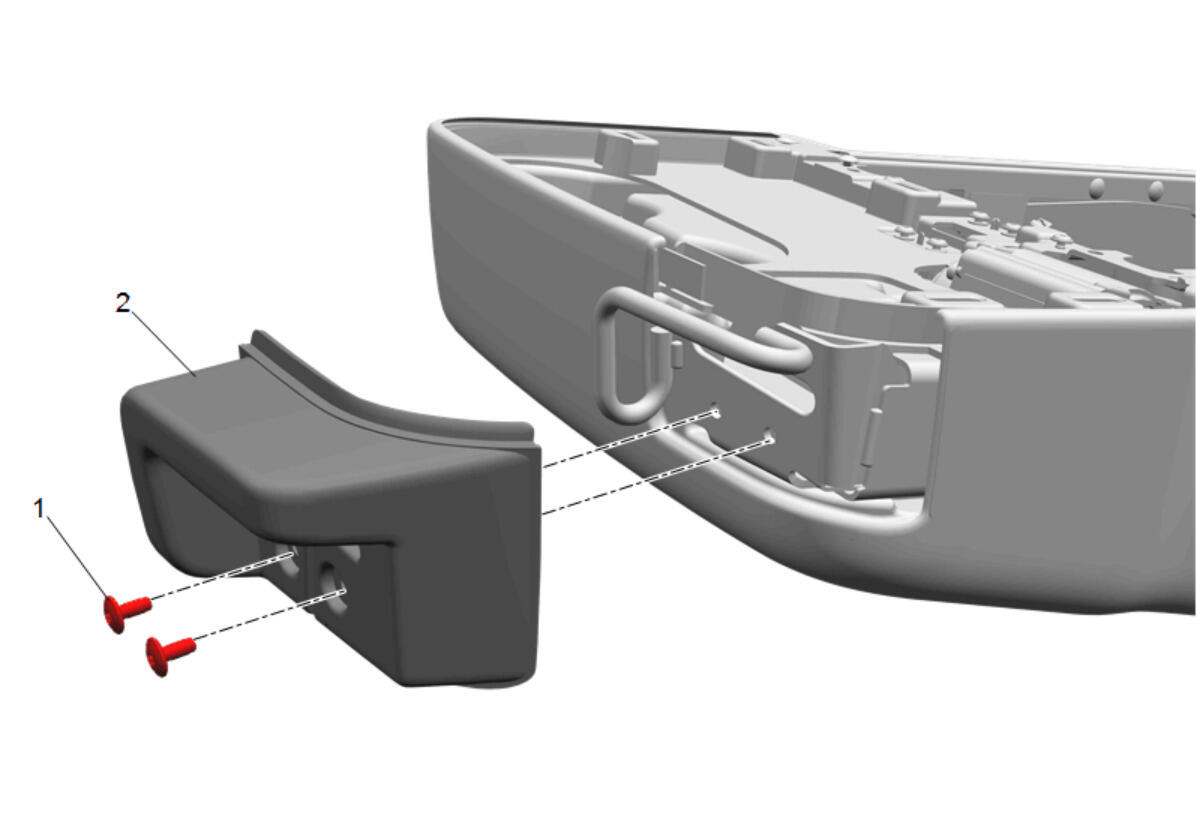

Front Seat Belt Opening Bezel (2) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front Seat Belt Opening Bezel Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

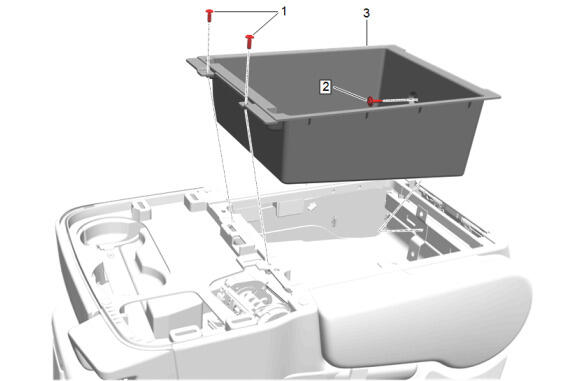

Front Seat Stowage Compartment (3) - Install
Front Seat Stowage Compartment Bolt -Rear (2) - Install and tighten - Fastener Specifications
Front Seat Stowage Compartment Bolt -Front (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

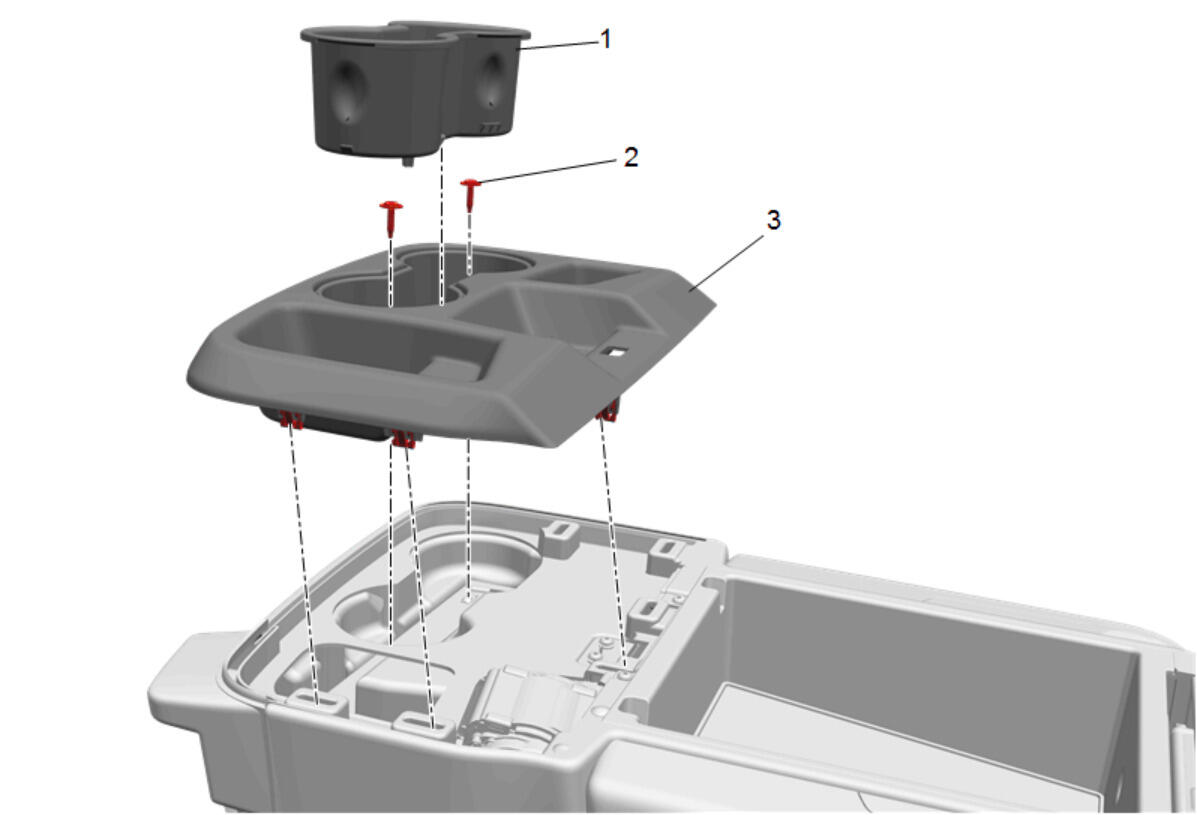

Front Seat Armrest Cup Holder (3) - Install
Front Seat Armrest Cup Holder Bolt (2) - Install and tighten [2x] - Fastener Specifications
Front Center Seat Cup Holder (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Seat Center Armrest Hinge Finish Inner Cover (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

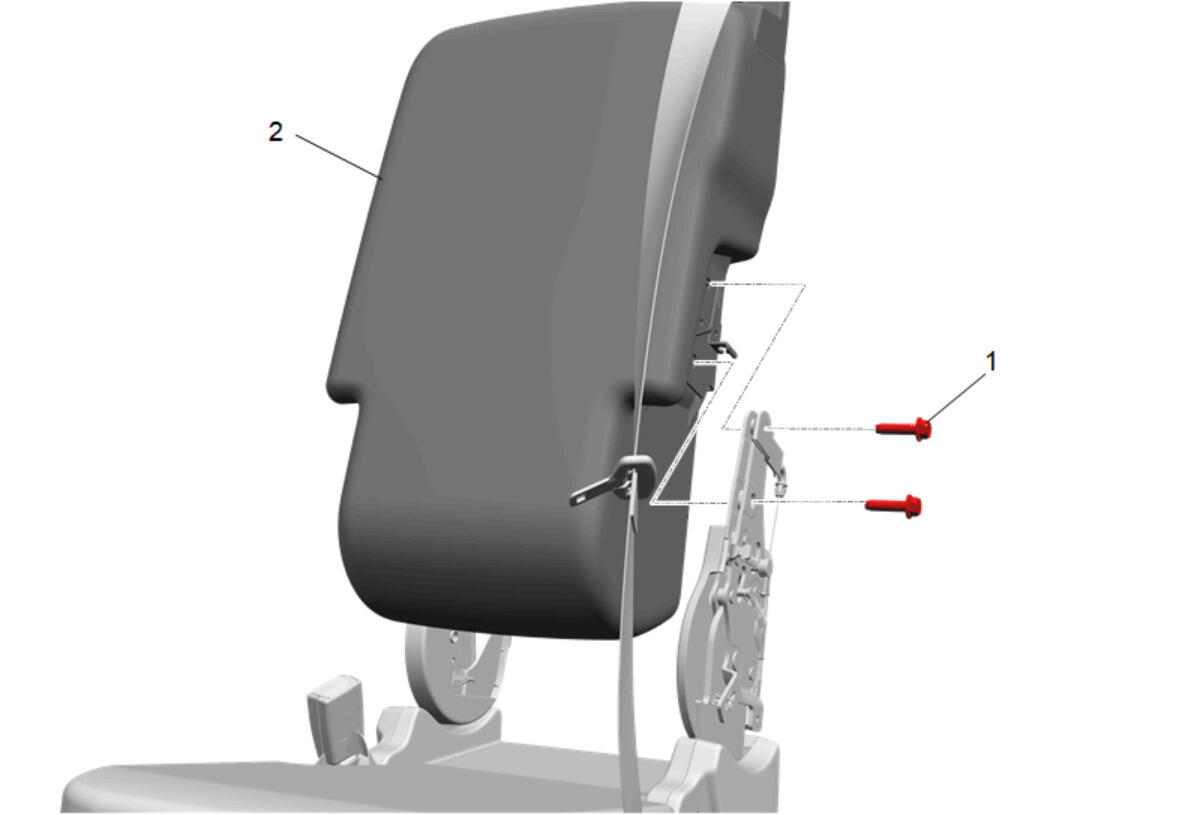

Front Center Seat Armrest (2) - Install
Front Seat Center Armrest Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the latch release cable.
Courtesy of GENERAL MOTORS COMPANY

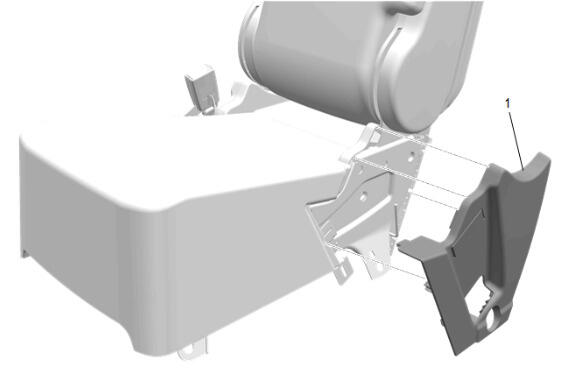

Front Seat Center Armrest Hinge Finish Cover-Lower (1) - Install
Front Seat Center Belt Anchor Plate - Install
Courtesy of GENERAL MOTORS COMPANY

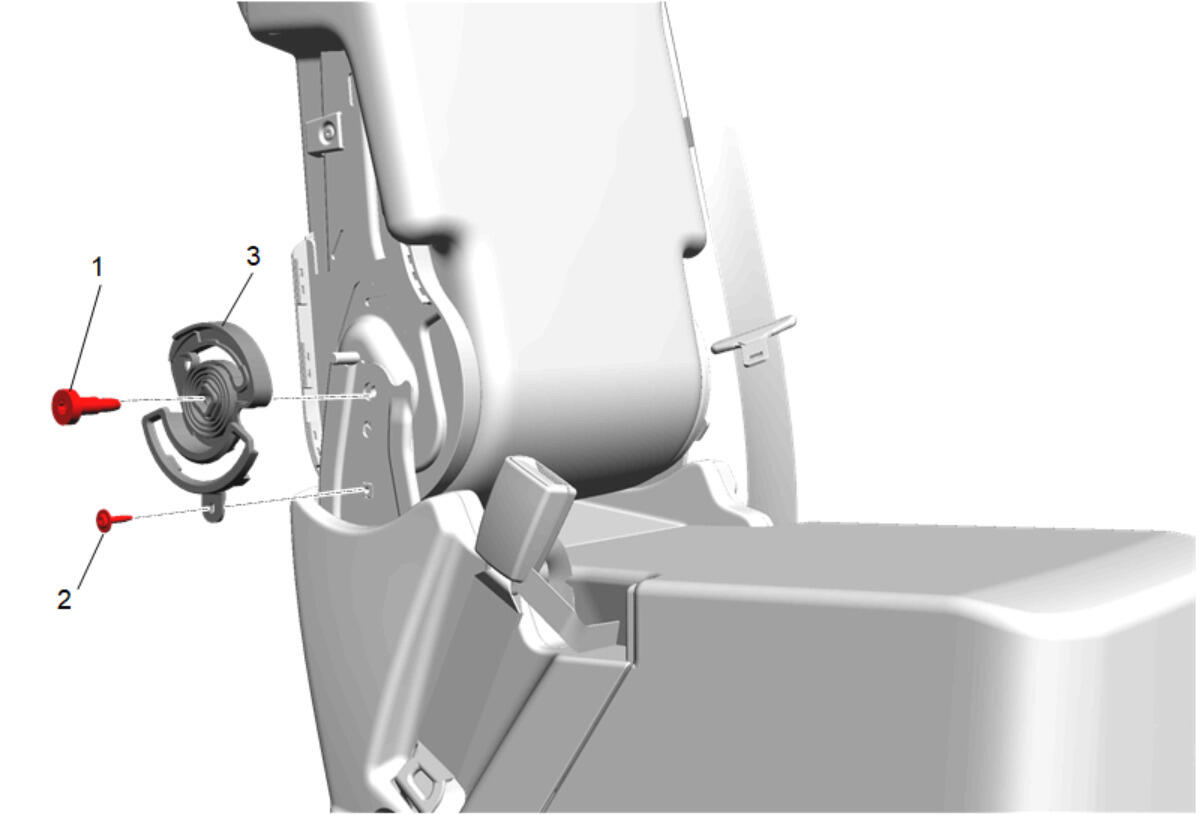

Front Seat Armrest Adjust Retainer (3) - Install
Front Seat Armrest Adjust Retainer Bolt (2) - Install and tighten - Fastener Specifications
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front Seat Center Armrest Pivot Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

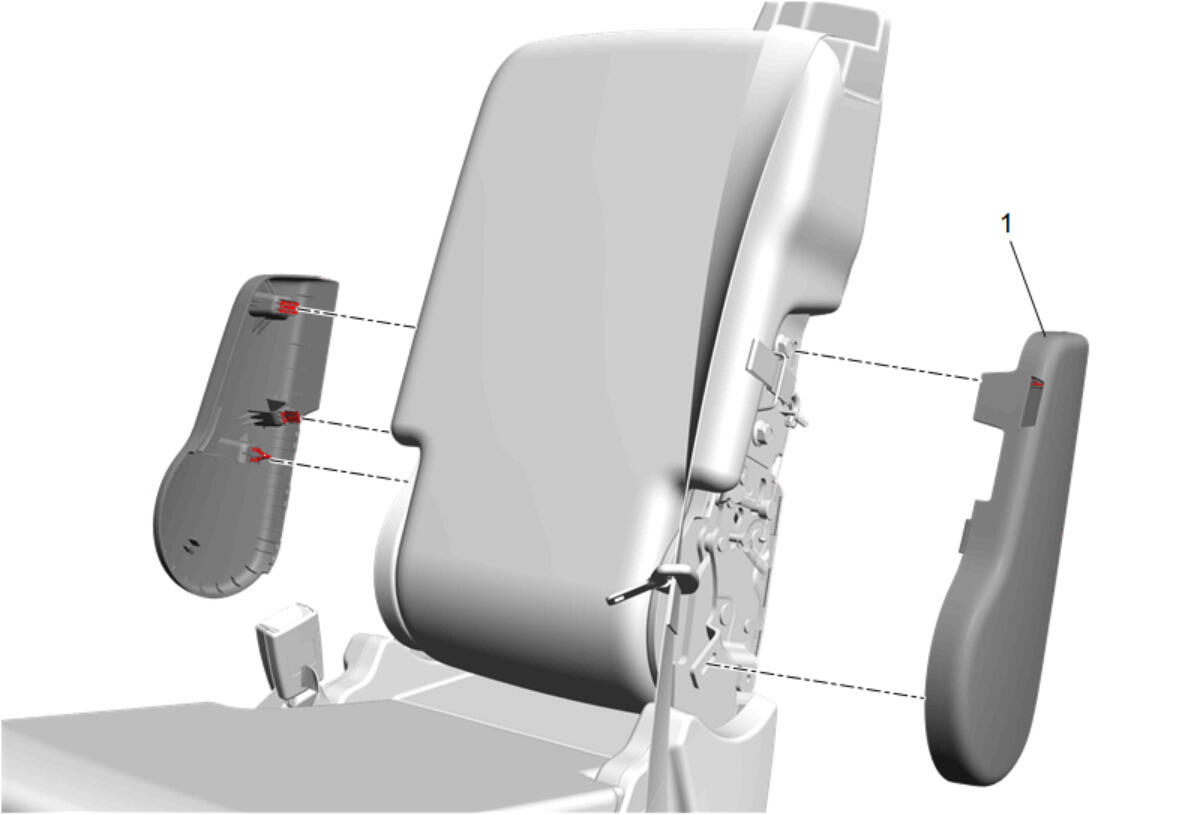

Front Seat Center Armrest Hinge Finish Cover- Upper (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

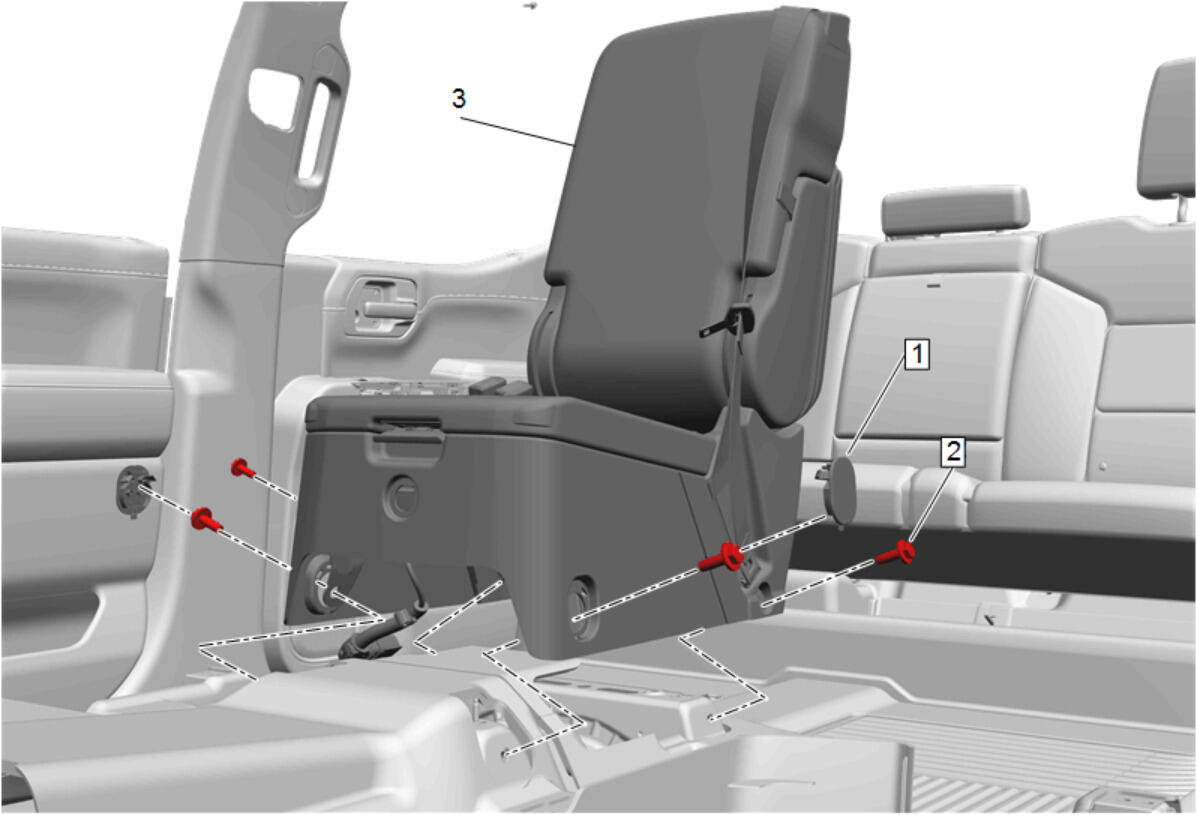

Front Center Seat (3) - Install - Front Center Seat Removal and Installation
