Installation Procedure

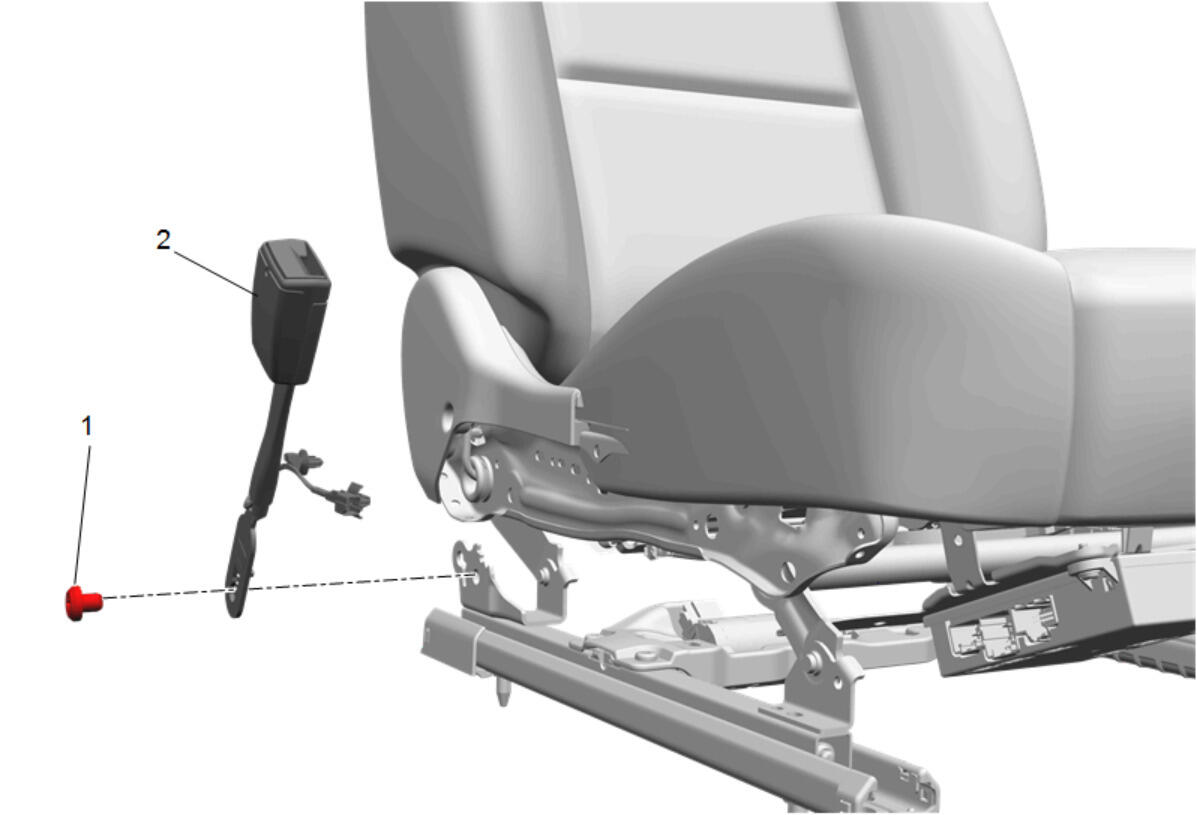

Front Seat Belt Buckle (2) - Install
- Connect the electrical connector.
- If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Front Seat Belt Buckle Bolt (1) - Install and tighten - Fastener Specifications
Front Seat (2) - Install - Front Seat Removal and Installation
CAUTION:
Refer to Fastener Caution .
