Unable To SPS Program Brake System Control Module Or P0562 / P0606 Setting In Brake System Control Module On Police Patrol Vehicle (PIT6095)
WARNING: This page is about the Tahoe High Country, 3.0L Eng VIN T, 4WD, which is a different variant/trim than selected.
Publication date: 2023-11-30Reference number: PIT6095
UNABLE TO SPS PROGRAM BRAKE SYSTEM CONTROL MODULE OR P0562 / P0606 SETTING IN BRAKE SYSTEM CONTROL MODULE ON POLICE PATROL VEHICLE
TECHNICAL SERVICE BULLETIN
Reference Number(s): PIT6095, Date of Issue:
Nov 30, 2023
SERVICE INFORMATION
| Brand: | Model: | Model Year: | VIN: | Engine: | Transmission: | ||
|---|---|---|---|---|---|---|---|
| from | to | from | to | ||||
| Chevrolet | Tahoe | 2021-2024 | All | All | All | All | |
| Involved Region or Country | North America |
| Additional Options (RPO) | 9C1 (PPV) |
| Condition | A dealer may be unable to SPS program the Brake System Control Module (BSCM) or may find DTC's P0562 / P0606 setting in the BSCM that will not clear. DTC's can be present before or after BSCM replacement. |
| Cause | The cause of this concern could be Circuit 817 (vehicle speed sensor output from BSCM) shorted. |
CORRECTION

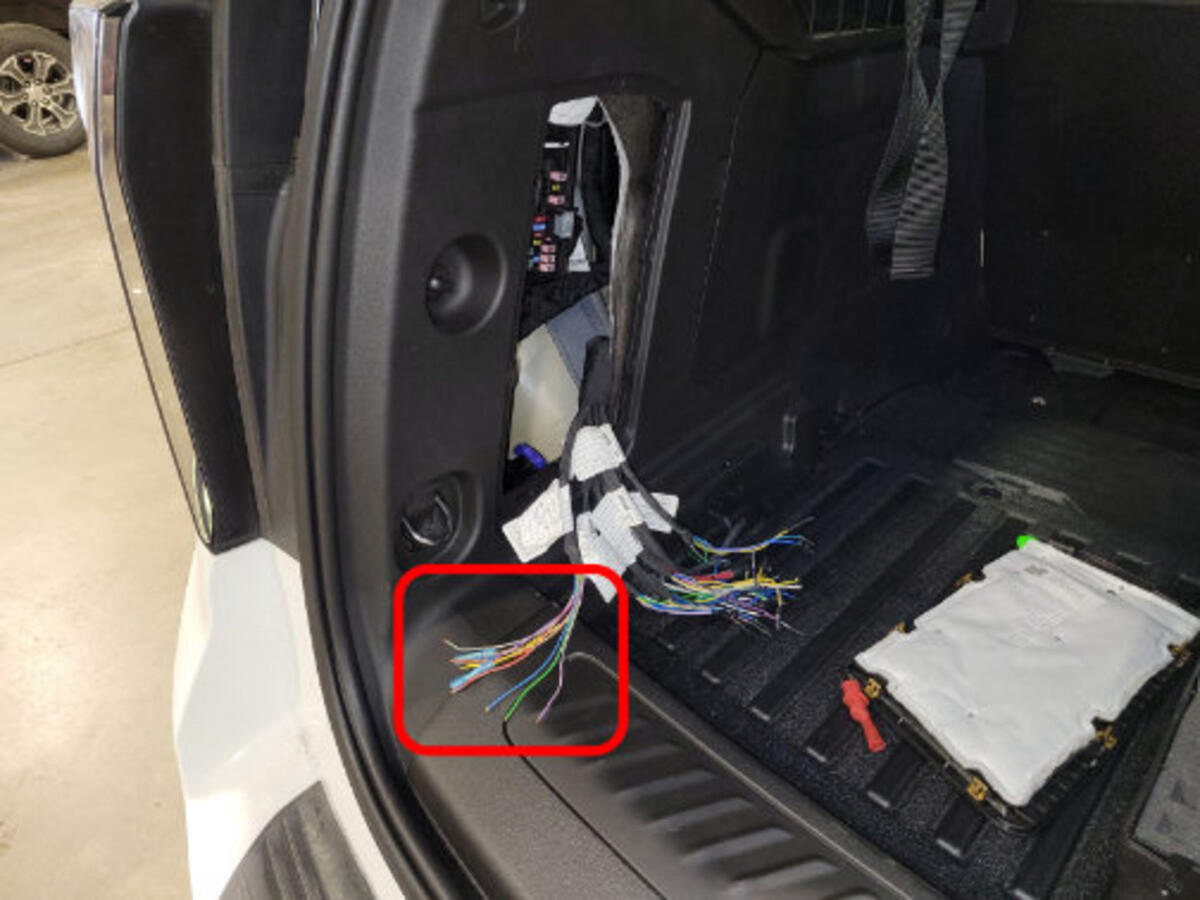

If a root cause is not found after following normal SI diagnostics, then gain access to the W12RCL?Blunt Cut - Left Rear Cargo Trim.

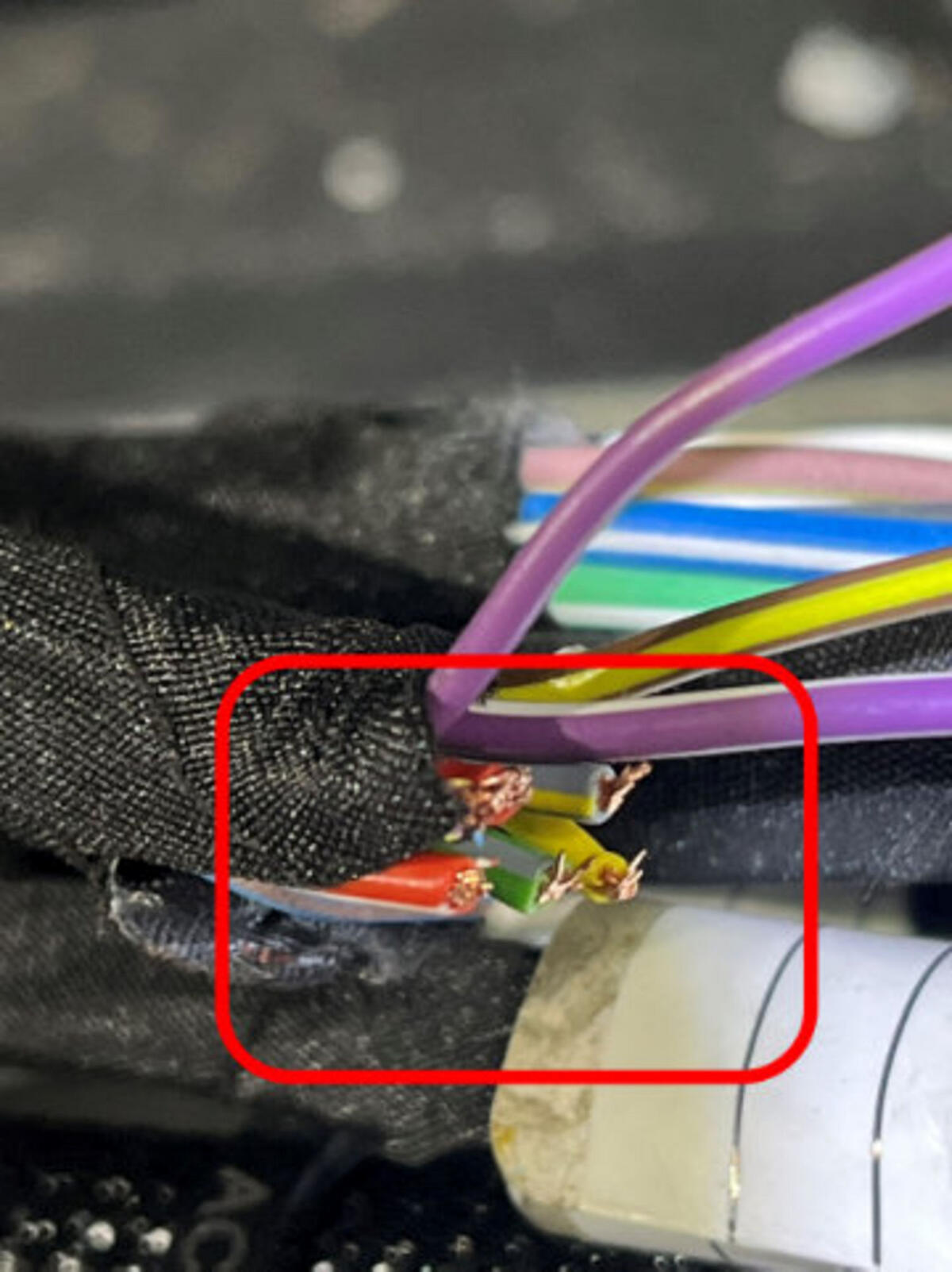

In some cases, the wiring harness may be pinched or have bare wires (as shown below.)
Repair/Replace any damaged circuits following normal SI wiring repairs.
If there is an aftermarket Upfitter device connected to circuit 817, disconnect it and evaluate for concern.
WARRANTY INFORMATION
For wiring repairs covered under warranty, please refer to latest version of bulletin 10-00-89-005 for warranty information on wire/connector repairs.
| Version | 1 |
| Modified | 11/30/2023 - Created on |
