Removal Procedure

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

CAUTION:

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

CAUTION:

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

Courtesy of GENERAL MOTORS COMPANY

Open the liftgate.
Liftgate Weatherstrip(1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.
Courtesy of GENERAL MOTORS COMPANY

Body Side Rear Window Garnish Molding Bolt(1) - Remove
Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Body Rear Corner Upper Garnish Molding Bolt(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Body Rear Corner Upper Garnish Molding(1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.
Courtesy of GENERAL MOTORS COMPANY

Body Side Rear Window Garnish Molding Bolt(1) - Remove
Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Body Rear Corner Upper Garnish Molding Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Body Rear Corner Upper Garnish Molding(1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Lower to gain access to rear window washer nozzle hose extension

Lower the headlining trim panel (1).
Disengage the retaining clips (2) at the rear of the headliner trim panel.
Disconnect the electrical connectors.

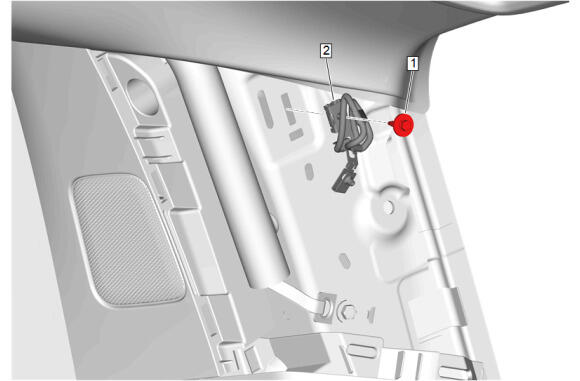

Rear Window Washer Nozzle Hose Extension - Disconnect
Disconnect the upper panel grommet from the body of the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Close the liftgate.
Raise the rear compartment lift window.

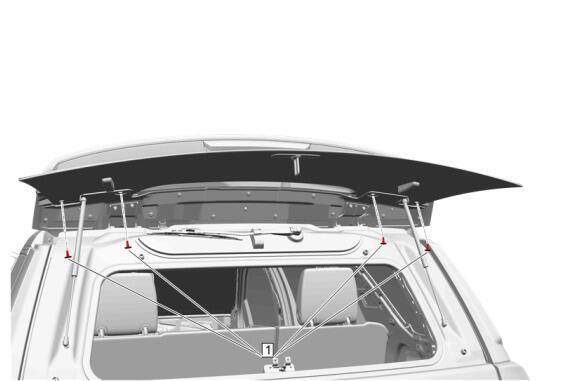

Rear End Spoiler Bolt(1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

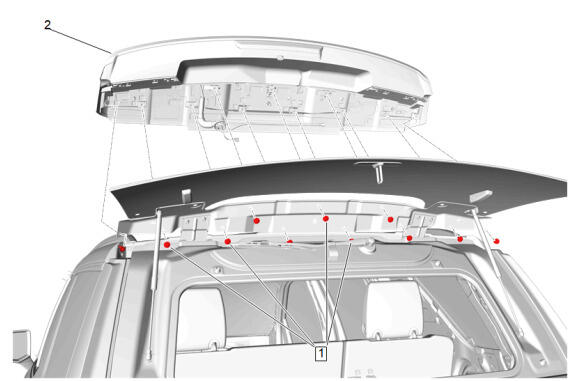

Rear End Spoiler Bolt(1) - Remove [11x]
Rear End Spoiler(2) - Remove
Courtesy of GENERAL MOTORS COMPANY

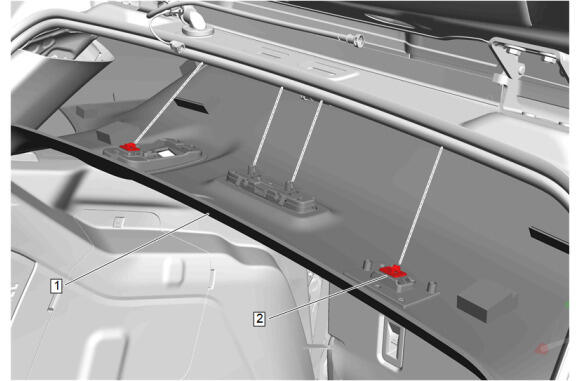

Rear Window Defroster Electrical Connector Trim Cover (1) - Remove [2x]
Rear Window Defroster Electrical Connector (2) - Disconnect [2x]
Courtesy of GENERAL MOTORS COMPANY

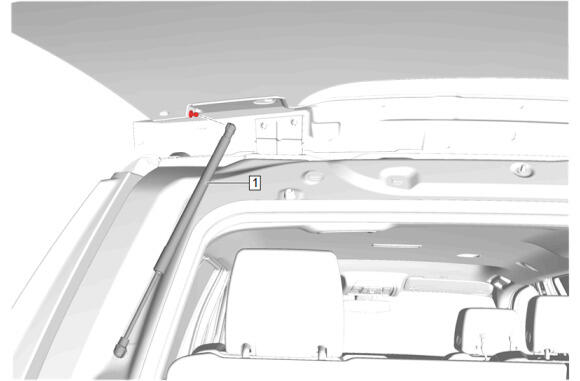

Remove the rear compartment lift window strut (1) from the rear compartment lift window [2x].
Courtesy of GENERAL MOTORS COMPANY

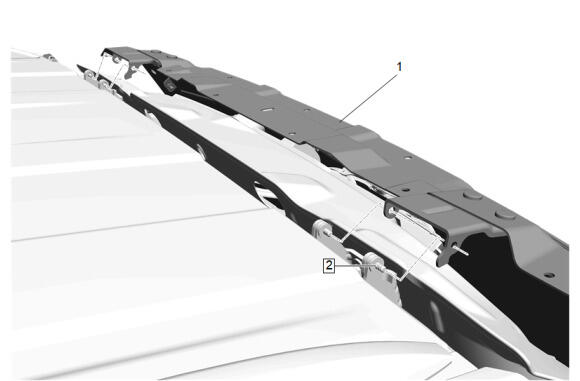

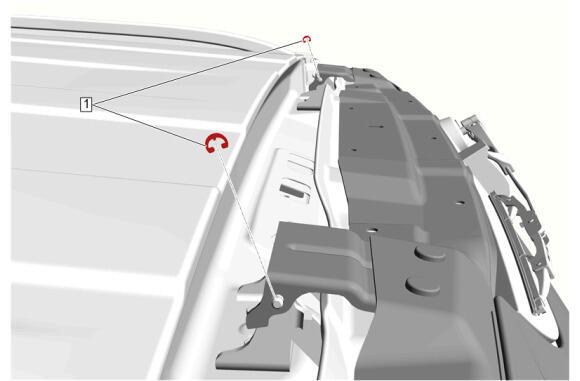

Remove the liftgate hinge pin retainers (1).
Courtesy of GENERAL MOTORS COMPANY

With aid of assistance, lift and slid the rear compartment lift window (1) to the left side of the vehicle and remove from the hinge pins (2).
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Lift Window (1) - Remove
