Removal Procedure
Refer to Glass and Sheet Metal Handling Warning .
Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.
When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.
- Disable the SIR system. SIR Disabling and Enabling
- Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation

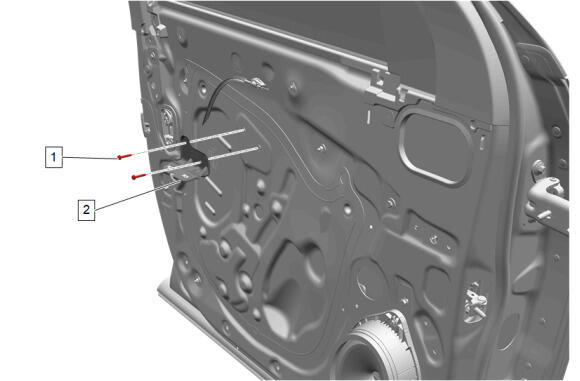

Front Side Door Armrest Bracket Bolt(1) - Remove [2x]
- Front Side Door Pull Handle Bracket(2) - Remove
Route front side door inside handle cable through hole in deflector (1).

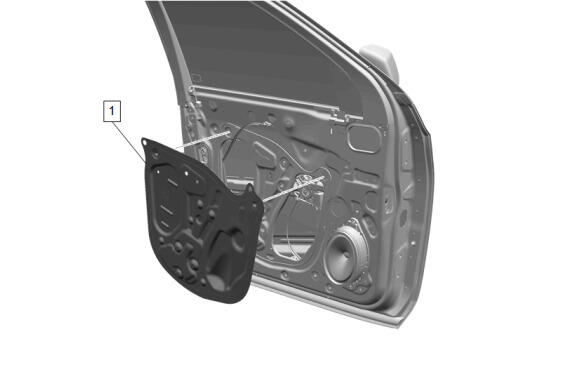

- Front Side Door Water Deflector(1) - Remove
Place the front side door window in the full up position and tape in place.
- Front Side Door Window Regulator Sash Retainer(1) - Release [2x]
- Place the front side door window regulator in the full down position.
- Disconnect the electrical connector.
Front Side Door Window Regulator Nut(1) - Remove [5x]

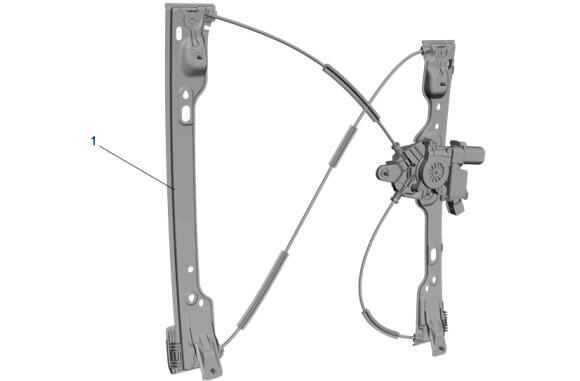

Front Side Door Window Regulator(1) - Remove
