Installation Procedure

  1. GM5605588Courtesy of GENERAL MOTORS COMPANY

    Body Side Rear Window (1) - Install - Adhesive Installation of Bodyside Stationary Windows

  2. Remove the double layer of masking tape around the perimeter of the painted surfaces.

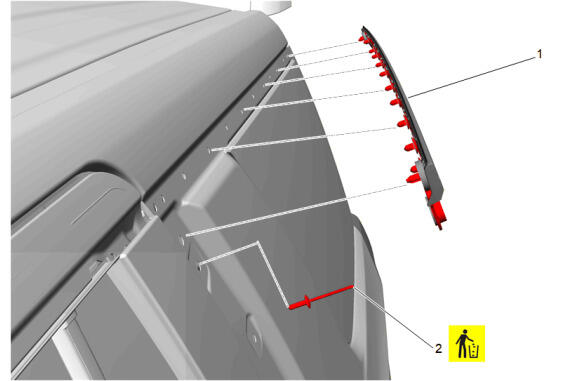

  3. GM5605505Courtesy of GENERAL MOTORS COMPANY

    Upper Rear Side Door Opening Reveal Molding (1) - Install

  4. Upper Rear Side Door Opening Reveal Molding Rivet (2) - Install NEW

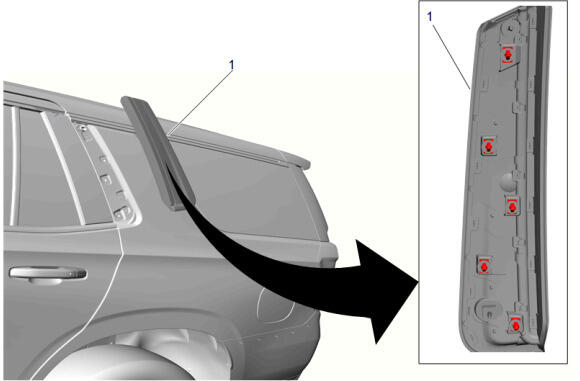

  5. GM5586443Courtesy of GENERAL MOTORS COMPANY

    Body Side Rear Molding(1) - Install
