Installation Procedure

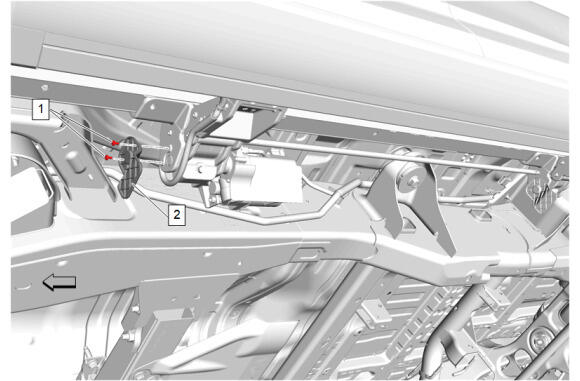

  1. GM5532219Courtesy of GENERAL MOTORS COMPANY

    Assist Step Shield (1) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Assist Step Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications
  3. Lower the vehicle.
