Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

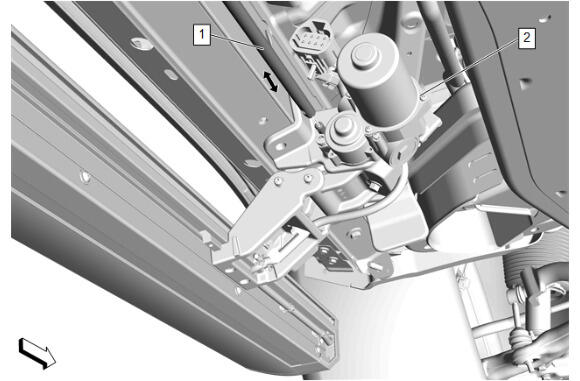

Install the assist step rod (1) to the assist step motor (2).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

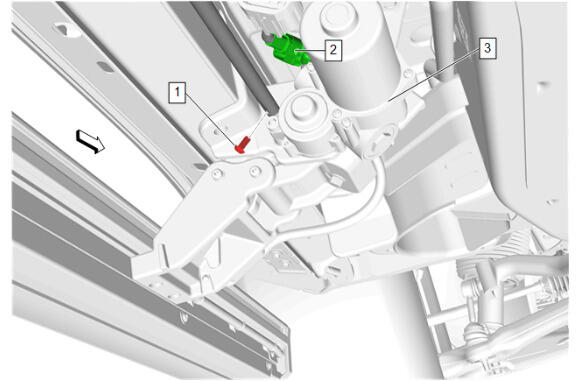

Assist Step Rod Bolt (1) @Assist Step Motor (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

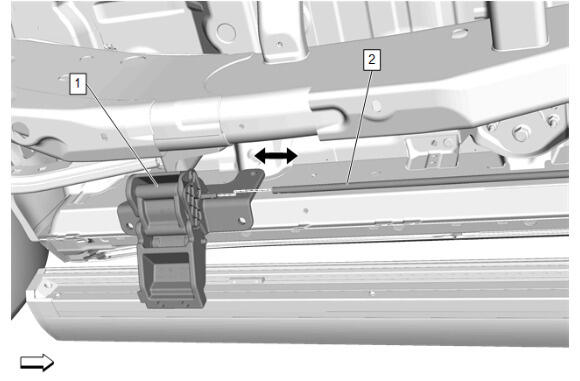

Engage the assist step rear bracket (1) to the assist step rod (2).
Courtesy of GENERAL MOTORS COMPANY

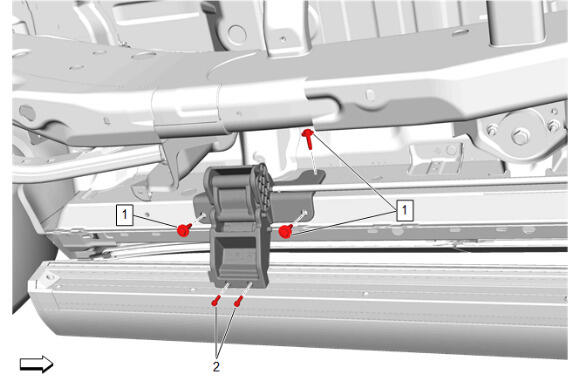

Assist Step Bolt (1) - Loosely install [3x]
Assist Step Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

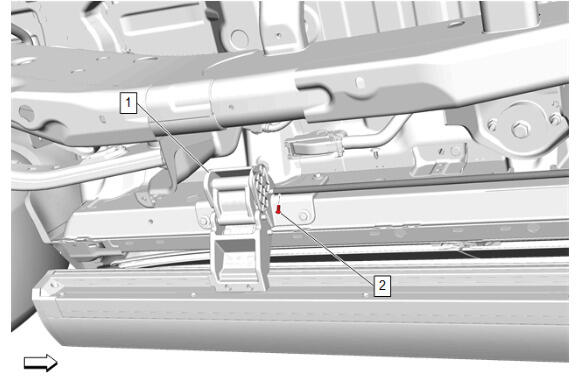

Assist Step Rod Bolt (2) @Assist Step Rear Bracket (1) Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Assist Step Bolt (1) - Tighten [3x] - Fastener Specifications
Remove the assist step support jack.
Lower the vehicle.
Perform the assist step learn procedure. Assist Step Learn
