Fastener Specifications
NOTE:
Callouts in the following chart represent components shown in graphic above.

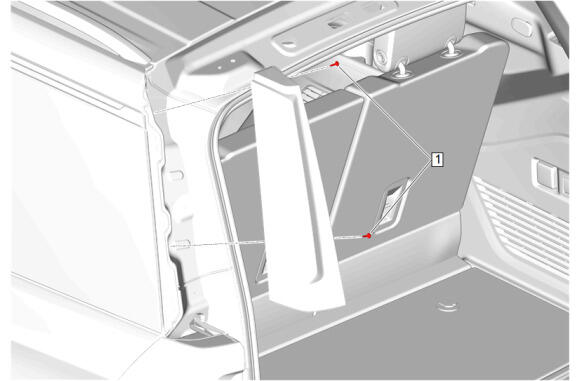

Back Body Opening Side Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Back Body Opening Side Molding Bolt | - | - | 2.5 N.m (22 lb in) | Back Body Opening Side Molding Replacement (Manual Liftgate) Back Body Opening Side Molding Replacement (Power Liftgate) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

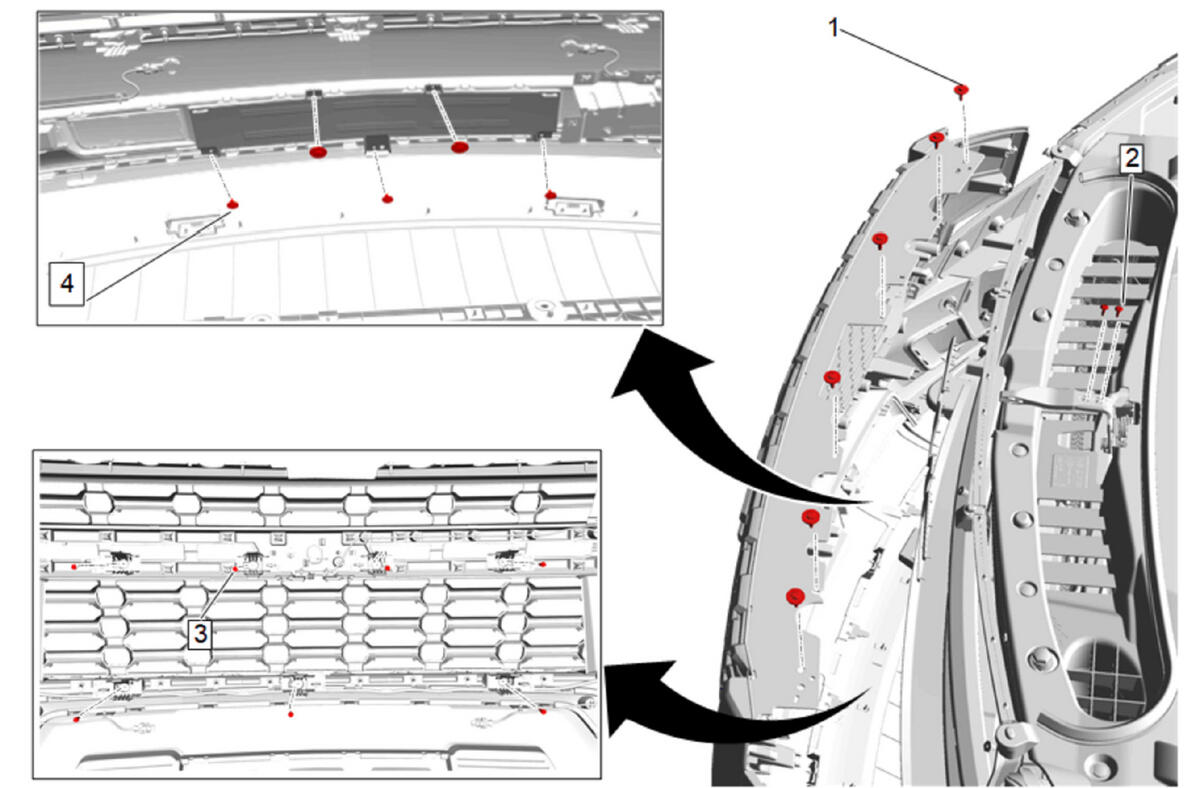

Front grille
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Grille Bolt [6x] | - | - | 7 N.m (62 lb in) | Front Grille Replacement |
| 2 | Hood Latch Actuator Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Grille Replacement |
| 3 | Front Grille Support Bracket Bolt [7x] | - | - | 2.5 N.m (22 lb in) | Front Grille Replacement |
| 4 | Front Bumper Fascia Lower Bracket Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Front Grille Filler Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

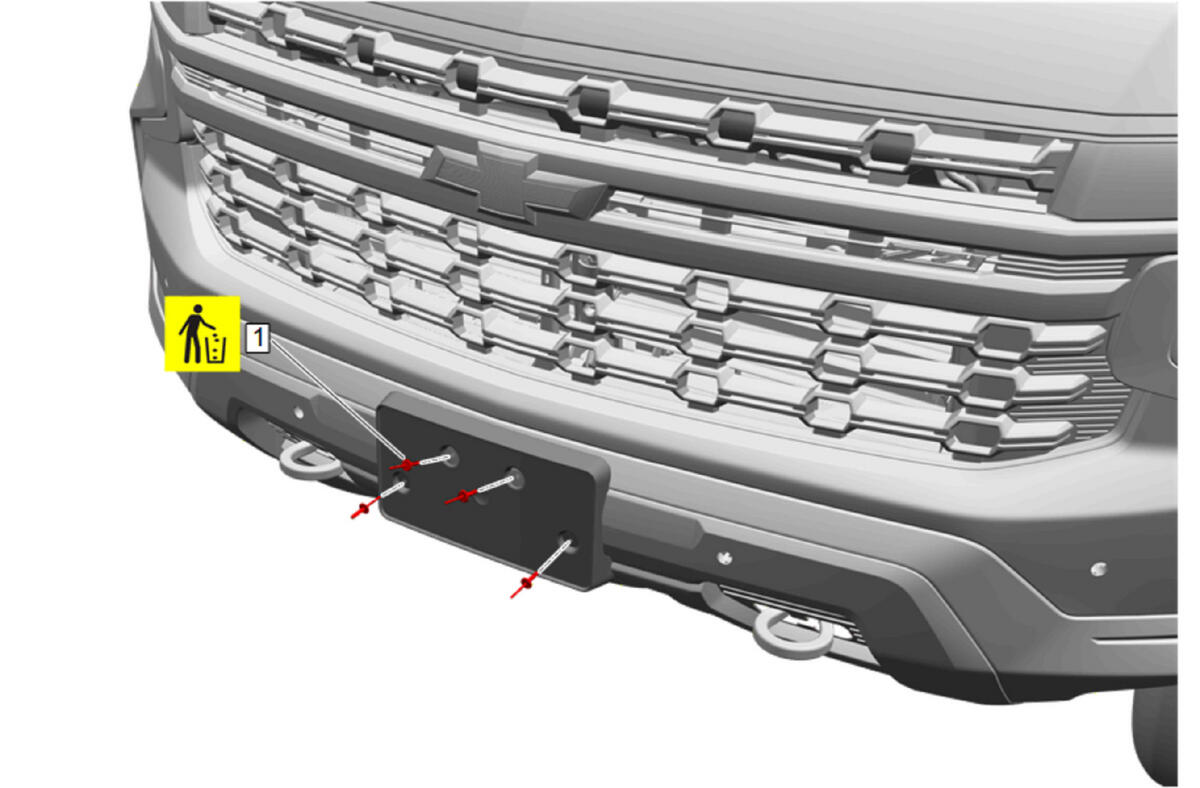

Front License plate bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front License Plate Bracket Rivet [4x] | Yes | - | - | Front License Plate Bracket Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

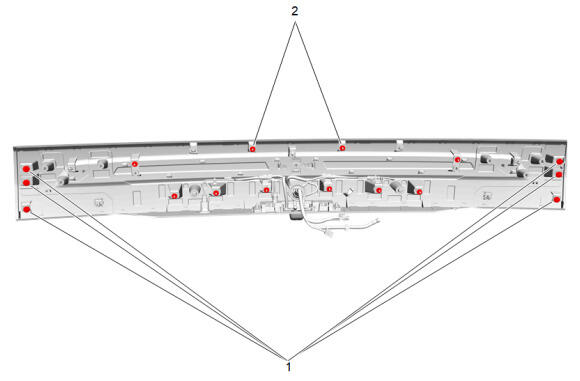

Rear Applique
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Closure Center Applique Nut [10x] | - | - | 4.7 N.m (42 lb in) | Rear Closure Center Applique Replacement (Applique) Rear Closure Center Applique Replacement (Insert) |
| 2 | Rear Closure Center Applique Bolt [6x] | - | - | 4.7 N.m (42 lb in) | Rear Closure Center Applique Replacement (Applique) Rear Closure Center Applique Replacement (Insert) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

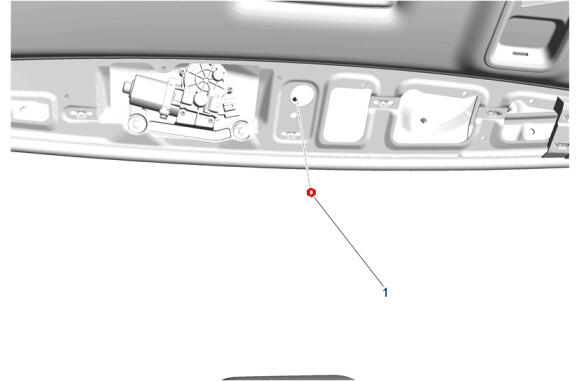

Rear End Spoiler Retainer Cover
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear End Spoiler Nut | - | - | 9 N.m (80 lb in) | Rear End Spoiler Retainer Cover Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

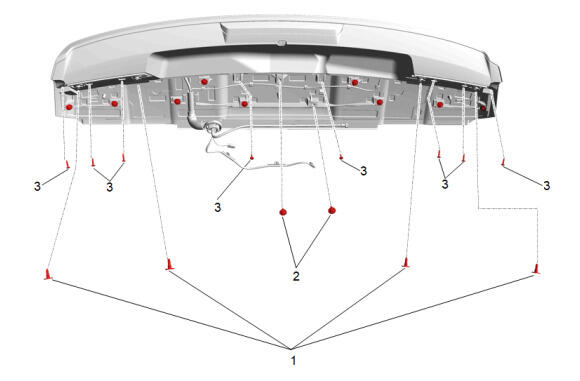

Rear Spoiler
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear End Spoiler Bolt [4x] | - | - | 7 N.m (62 lb in) | Rear End Spoiler Replacement |
| 2 | Rear End Spoiler Bolt [11x] | - | - | 9 N.m (80 lb in) | Rear End Spoiler Replacement |
| 3 | Roof Rear Spoiler Bolt [8x] | - | - | 2.5 N.m (22 lb in) | Rear End Spoiler Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

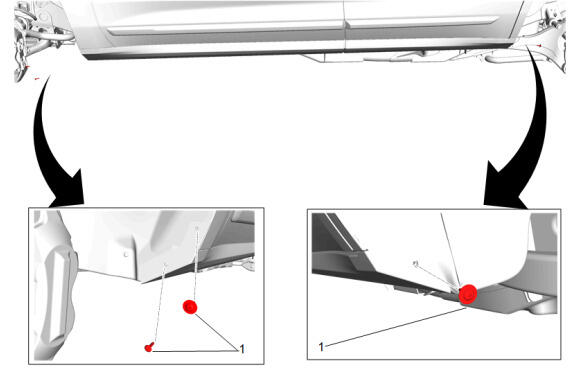

Rocker Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rocker Panel Molding Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Rocker Panel Rear Molding Replacement (B3L) Rocker Panel Rear Molding Replacement (BVE) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

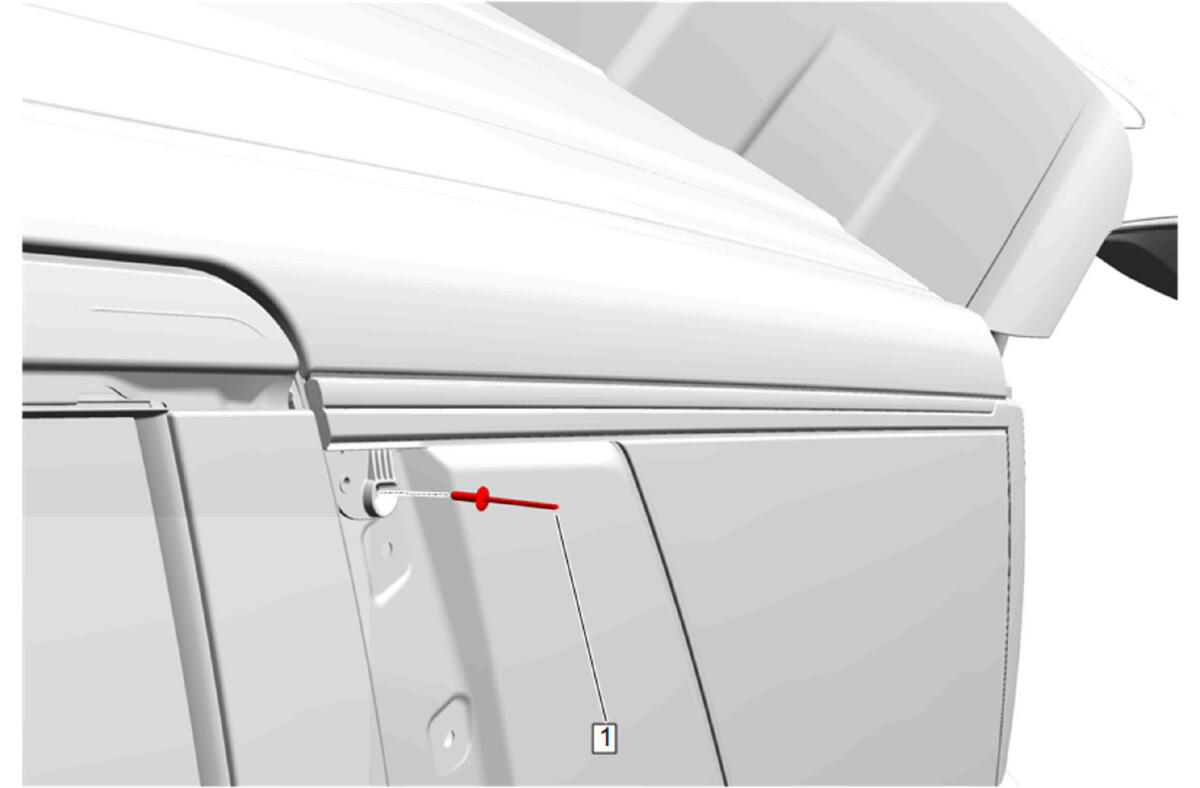

Upper Rear Side Door Opening Reveal Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Upper Rear Side Door Opening Reveal Molding Rivet | Yes | - | - | Upper Rear Side Door Opening Reveal Molding Replacement |
