Installation Procedure

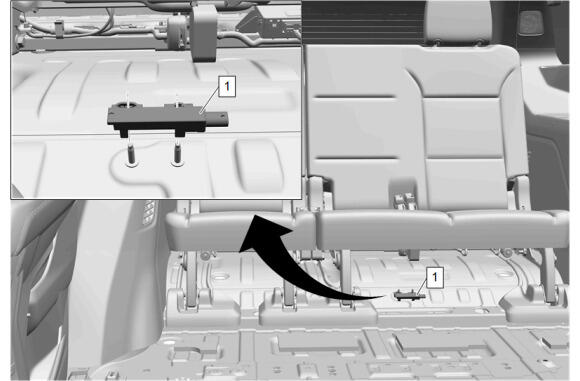

  1. GM5577817Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Rear Compartment Antenna (1) - Install

  2. Connect the electrical connector.
  3. Reposition rear carpet.
  4. GM5598917Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat (2) - Install - 3rd Row Seat Removal and Installation
