Removal Procedure

WARNING:

Refer to Approved Equipment for Collision Repair Warning .

WARNING:

Refer to Collision Sectioning Warning .

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

NOTE:

The lower plenum is high strength low alloy steel. HIGH STRENGTH LOW ALLOY STEEL .

NOTE:

Refer to Collision Repair Specifications

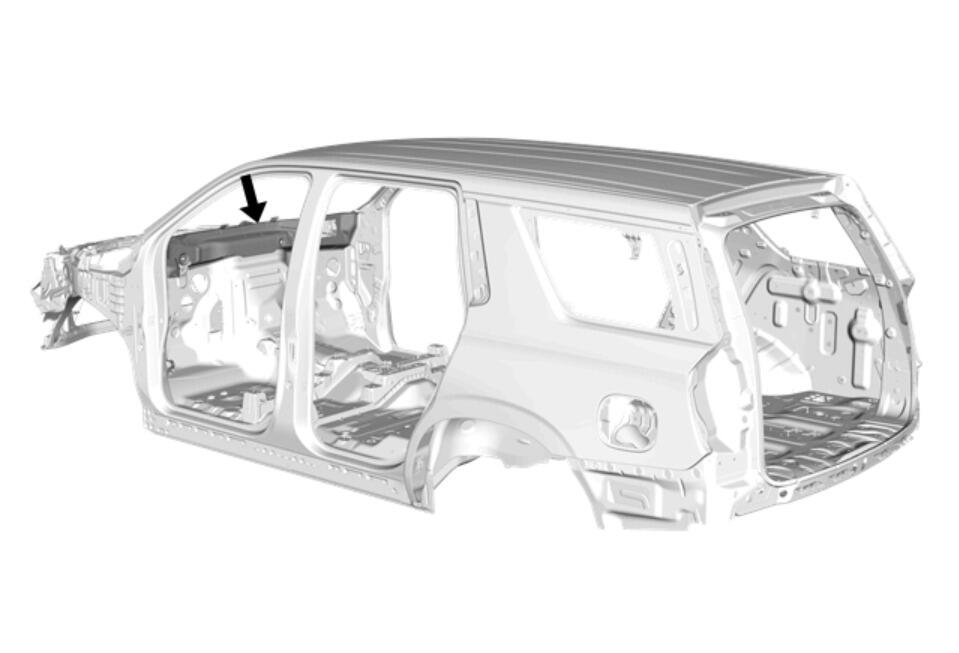

Fig 1: Plenum Lower Panel Replacement Component Location

GM5346436

Courtesy of GENERAL MOTORS COMPANY

Disable the SIR system. SIR Disabling and Enabling
Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4)Battery Negative Cable Disconnection and Connection (KL9)
Remove all related panels and components.
Remove the sealers and anti-corrosion materials from the repair area as necessary. Anti-Corrosion Treatment and Repair
Remove upper plenum panel. Plenum Upper Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do not damage or cut attaching panels and reinforcements.

NOTE:

Left shown, right similar.

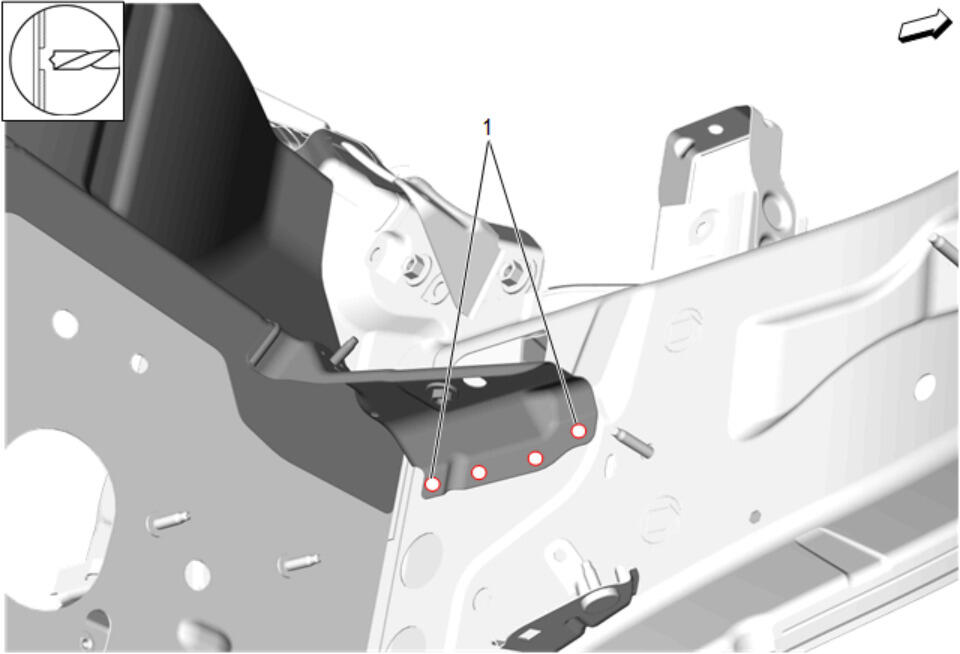

Remove all spot welds (1). [4x]

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do not damage or cut attaching panels and reinforcements

NOTE:

The 8 mm (5/16") holes will be used for MIG/MAG welds.

NOTE:

Left shown, right similar.

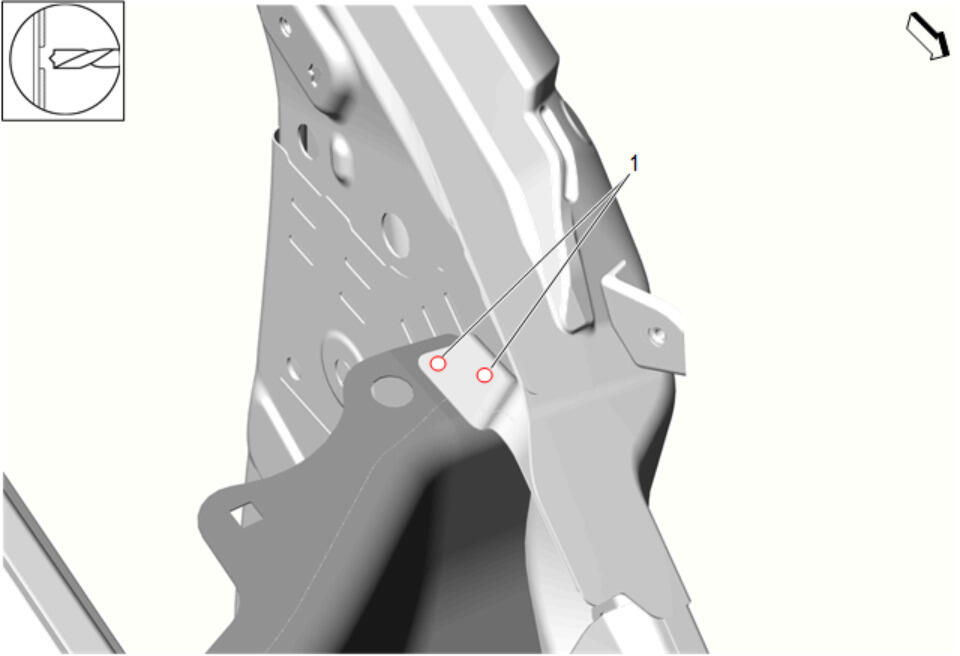

Drill 8 mm (5/16") hole to remove all spot welds (1). [2x]

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do not damage or cut attaching panels and reinforcements.

NOTE:

Left shown, right similar.

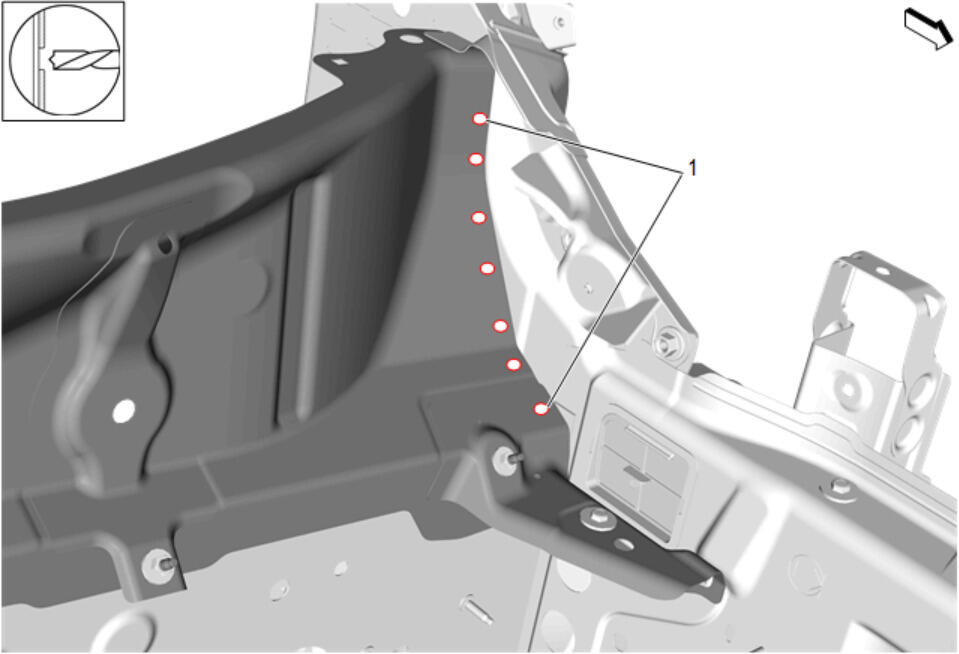

Remove all spot weld (1). [7x]

Courtesy of GENERAL MOTORS COMPANY

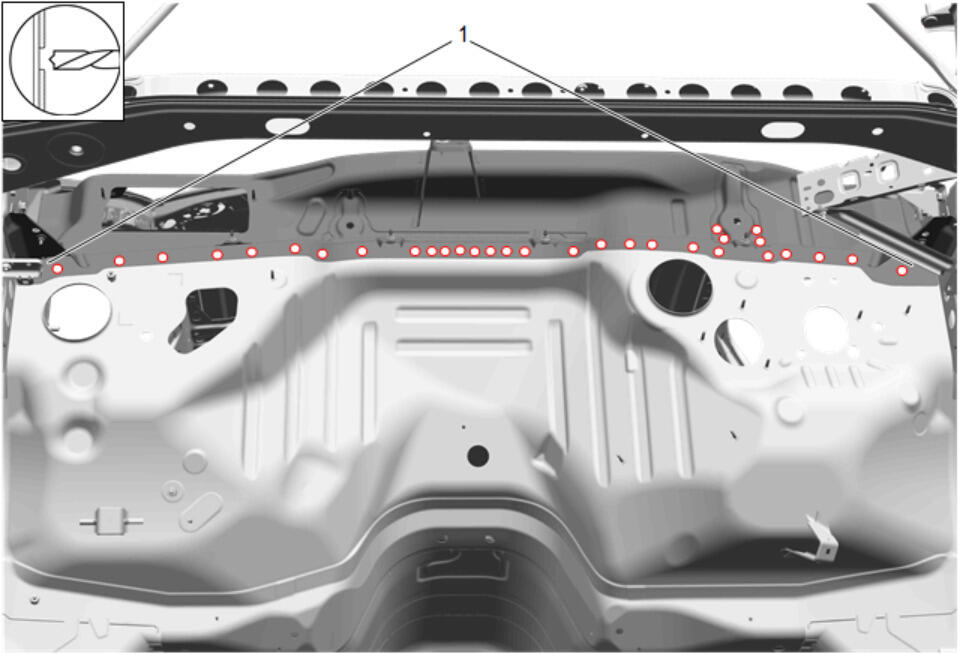

Remove all spot welds (1). [31x]

Courtesy of GENERAL MOTORS COMPANY

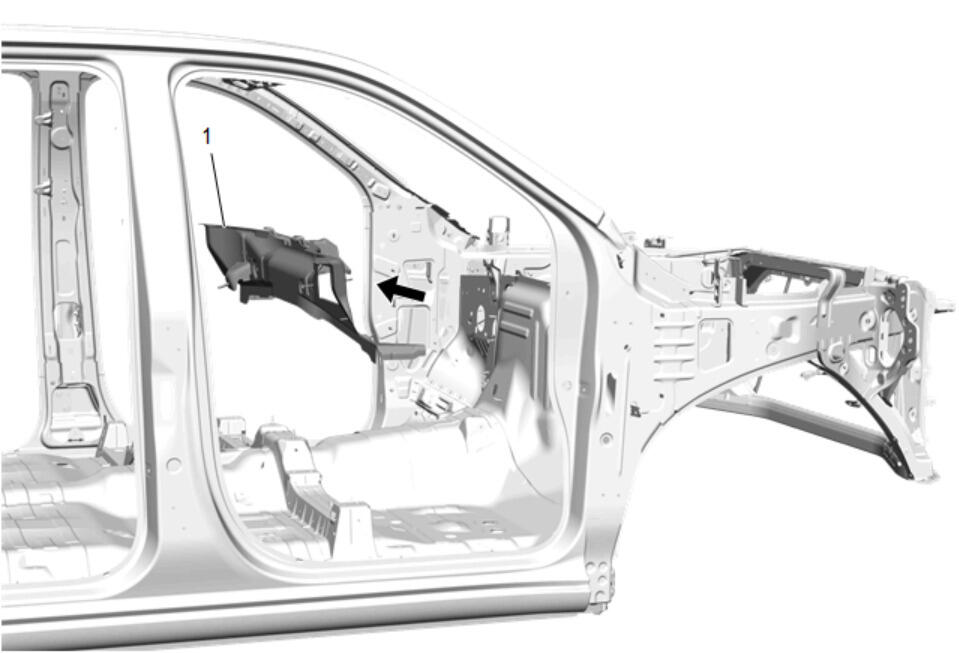

Remove lower plenum (1) from the vehicle.
