Body Dimensions
>>
Side View (SWB)
Side View (SWB)

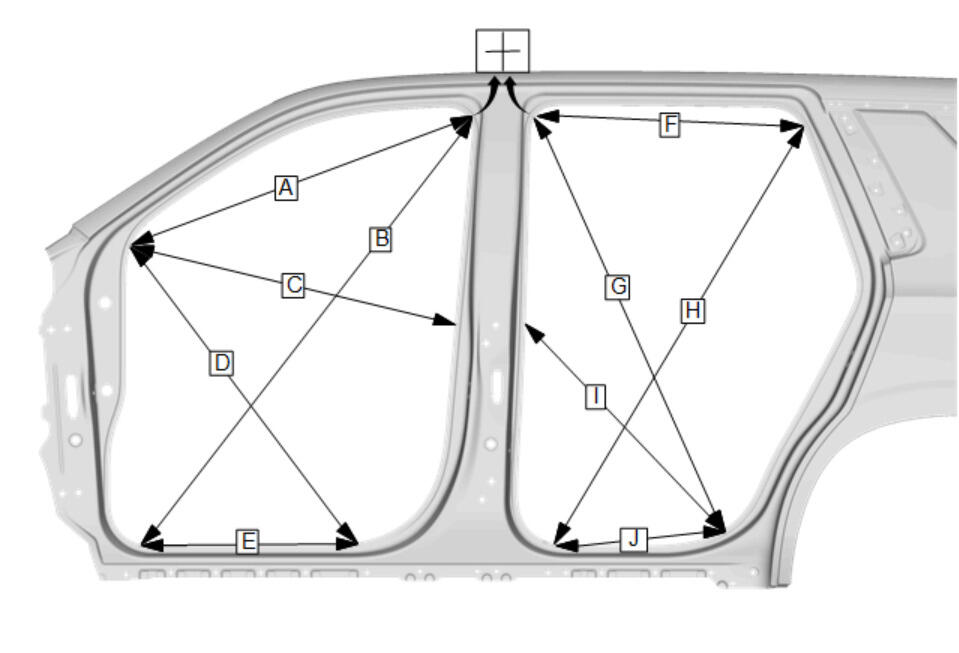

Fig 1: Side View Dimensions And Measurement Points (SWB)
Courtesy of GENERAL MOTORS COMPANY
Number
Measurement (mm)
A
1025
B
1526
C
946
D
1058
E
614
F
764
G
1283
H
1377
I
818
J
519
Courtesy of GENERAL MOTORS COMPANY
