Removal Procedure

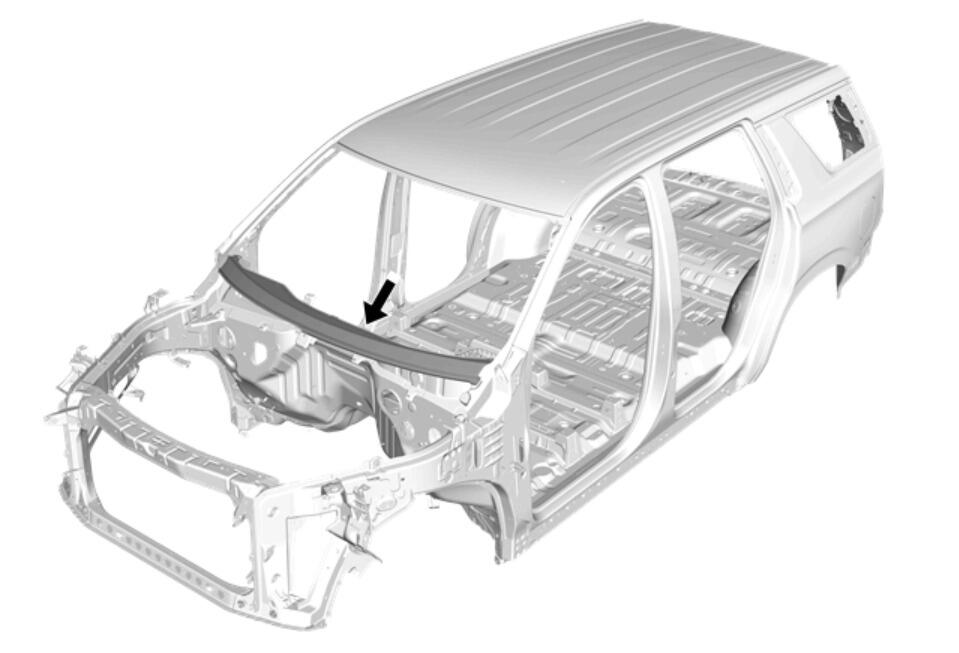

Fig 1: Plenum Upper Panel Replacement Component Location

Courtesy of GENERAL MOTORS COMPANY

WARNING:

Refer to Approved Equipment for Collision Repair Warning .

WARNING:

Refer to Collision Sectioning Warning .

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

NOTE:

Squeeze Type Resistance Spot Welds (STRSW) are recommended. If access to use Squeeze Type Resistance Spot Welds is not possible, MIG/MAG 8 mm (5/16 in) plug welds may be used, to replace those specific welds, unless otherwise noted:

NOTE:

The upper plenum is mild steel. MILD STEEL .

NOTE:

Refer to Collision Repair Specifications

Disable the SIR system. SIR Disabling and Enabling .
Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4)Battery Negative Cable Disconnection and Connection (KL9)
Remove all related panels and components.
Remove the sealers and anti-corrosion materials from the repair area as necessary. Anti-Corrosion Treatment and Repair

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not damage or cut attaching panels and reinforcements

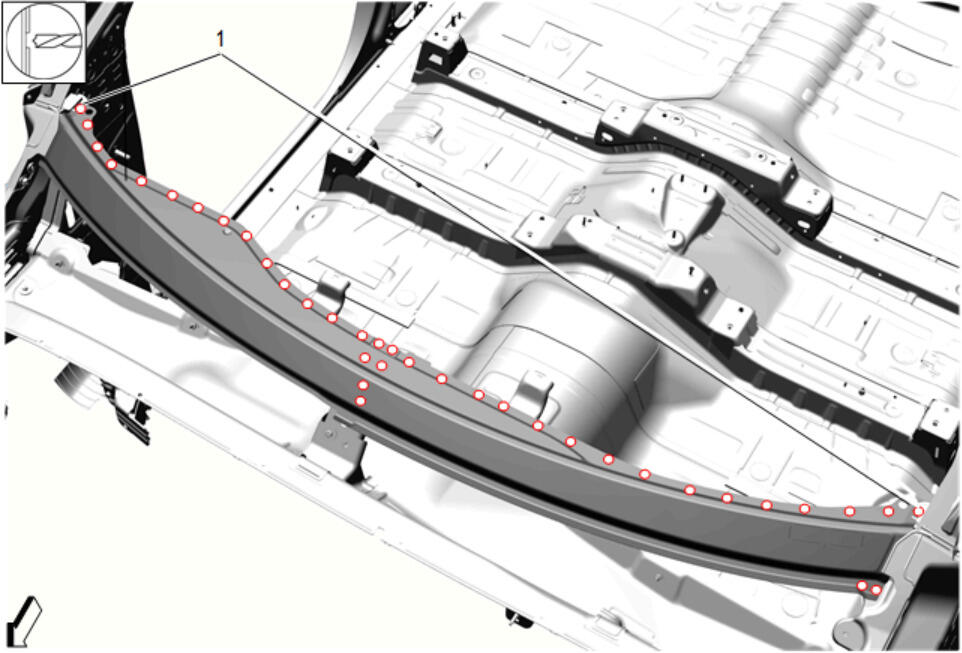

Remove spot welds (1). [37X]

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not damage or cut attaching panels and reinforcements.

NOTE:
The 8 mm (5/16") holes will be used for MIG/MAG welds.

NOTE:
Left shown, right similar.
Drill 8 mm (5/16") hole to remove all spot welds (1). [2X]

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left shown, right similar.

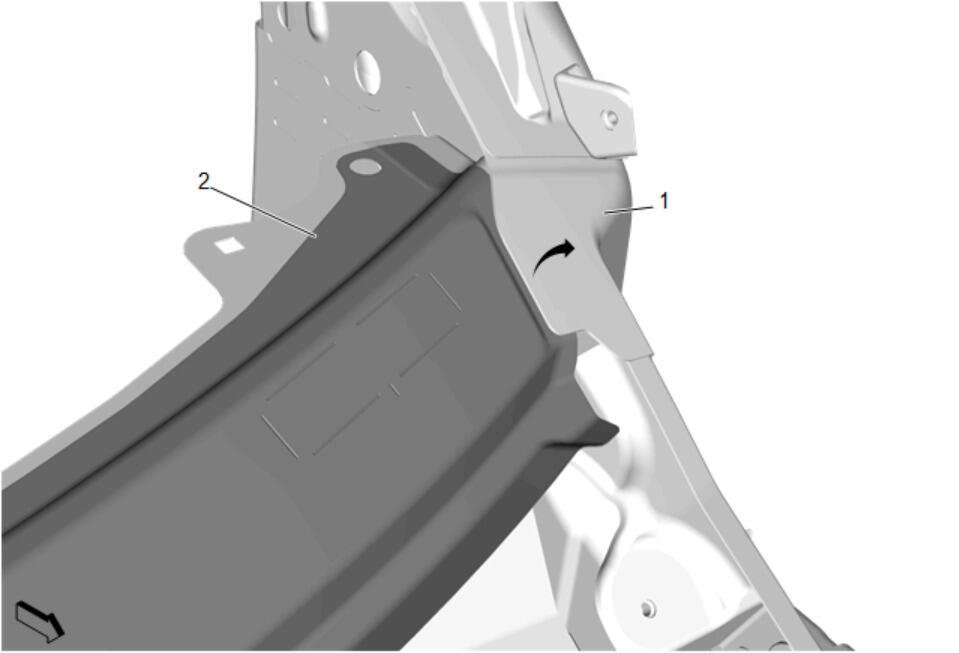

Reposition body side outer (1) on upper plenum (2) as necessary to remove upper plenum.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not damage or cut attaching panels and reinforcements.

NOTE:
Left shown, right similar.

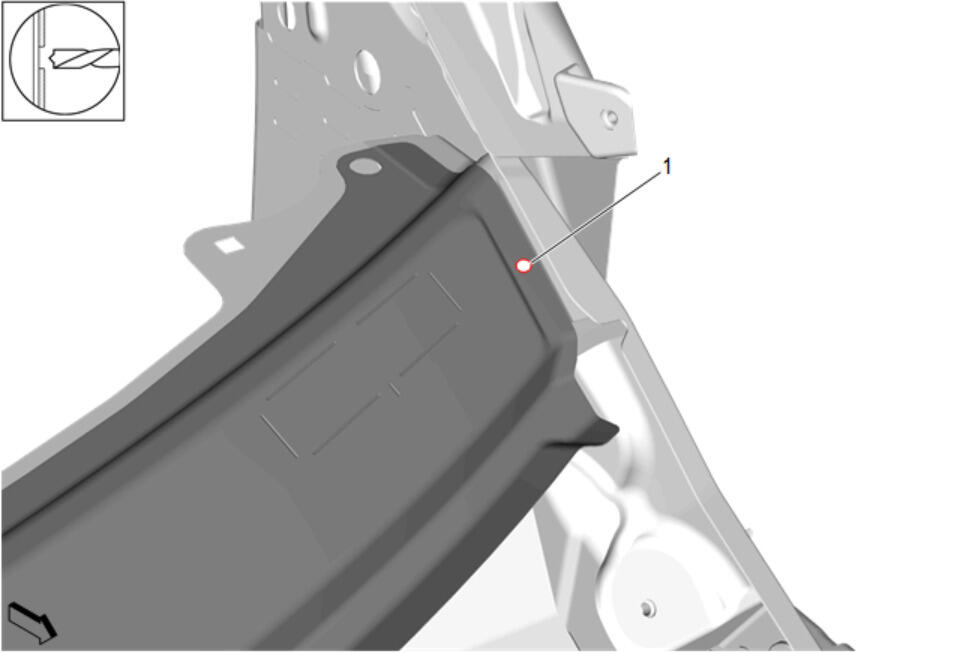

Remove spot weld (1). [1X]

Courtesy of GENERAL MOTORS COMPANY
Remove upper plenum (1) from the vehicle.
