Removal Procedure

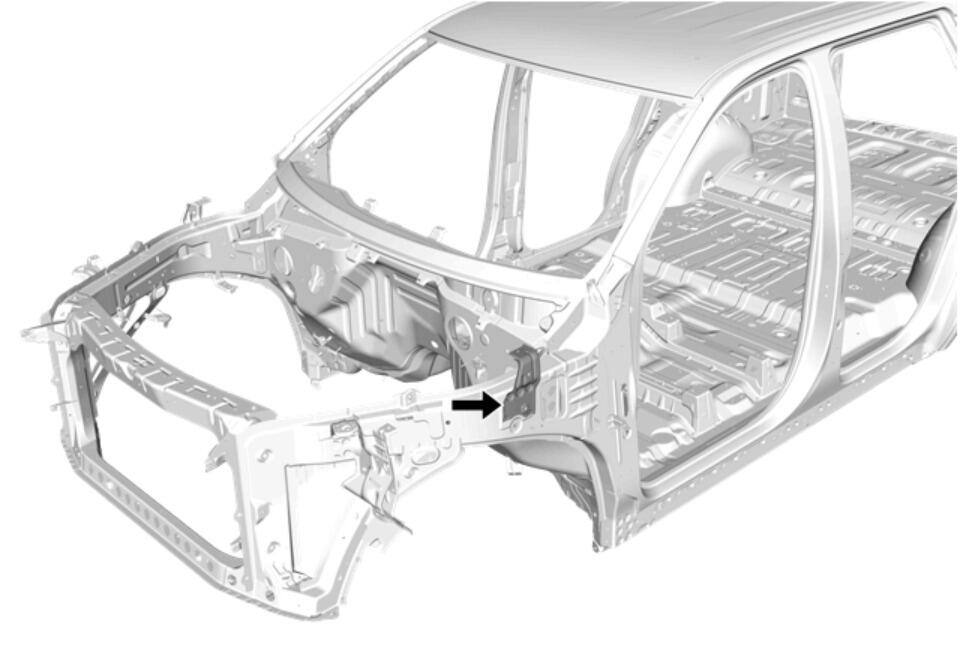

Fig 1: Front Fender Rear Bracket Replacement
GM5392785Courtesy of GENERAL MOTORS COMPANY
WARNING:

Refer to Approved Equipment for Collision Repair Warning .

WARNING:

Refer to Collision Sectioning Warning .

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

NOTE:

Left shown, right similar.

NOTE:

The fender bracket is mild steel. MILD STEEL

NOTE:

Refer to Collision Repair Specifications. Collision Repair Specifications

  1. Disable the SIR system. SIR Disabling and Enabling .
  2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4)Battery Negative Cable Disconnection and Connection (KL9)
  3. Remove all related panels and components.
  4. Remove the sealers and anti-corrosion materials from the repair area as necessary. Anti-Corrosion Treatment and Repair
    GM5392787Courtesy of GENERAL MOTORS COMPANY

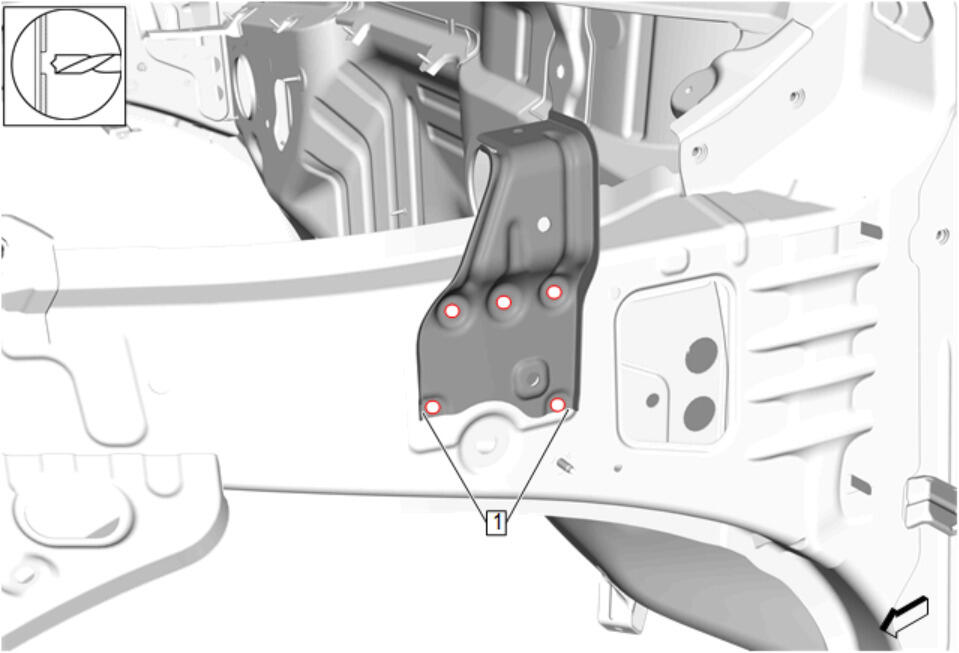

    5. NOTE:

    Do not damage or cut attaching panels and reinforcements.

  5. Remove spot welds (1). [5x]
    GM5392786Courtesy of GENERAL MOTORS COMPANY
  6. Remove fender bracket (1) from the vehicle.
