Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Windshield (1) - Install - Adhesive Installation of Windshields
With the aid of an assistant, install the windshield (1) and locating pin (2) to the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Clean the inside of the windshield before installing the windshield multifunction sensor mount bracket (1).

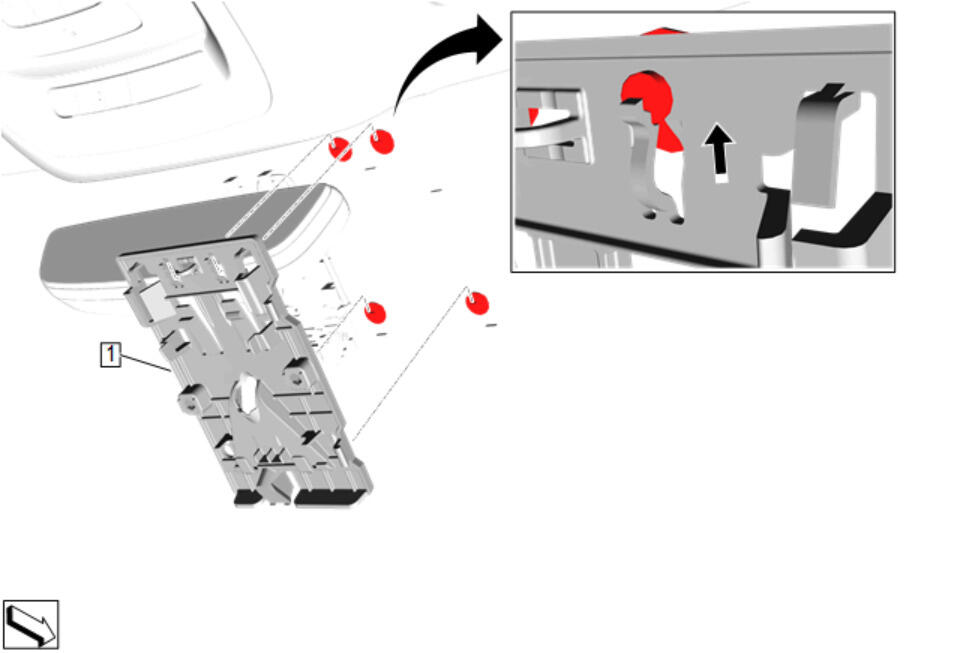

Windshield Multifunction Sensor Mount Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

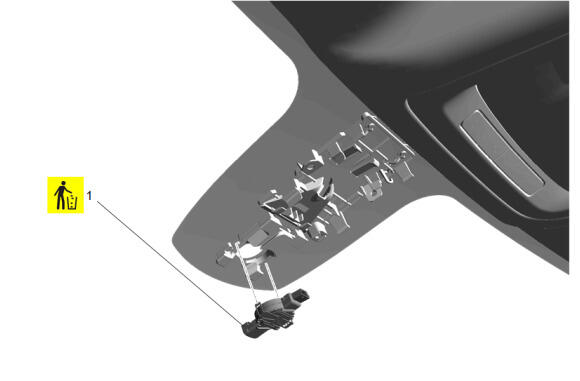

Windshield Outside Moisture/Ambient Light and Humidity Sensor(1) - Install NEW
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Front View Camera(1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

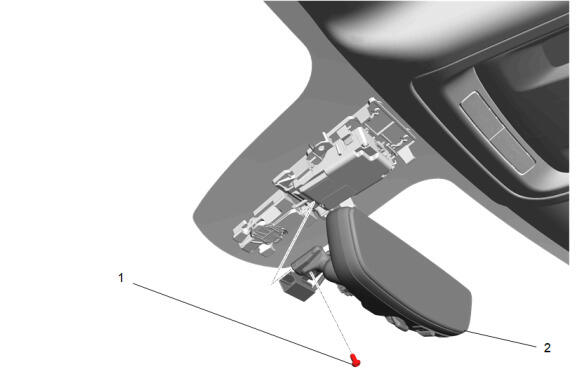

Inside Rearview Mirror(2) - Install

CAUTION:

Refer to Fastener Caution .

Inside Rearview Mirror Bolt(1) - Install and tighten - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

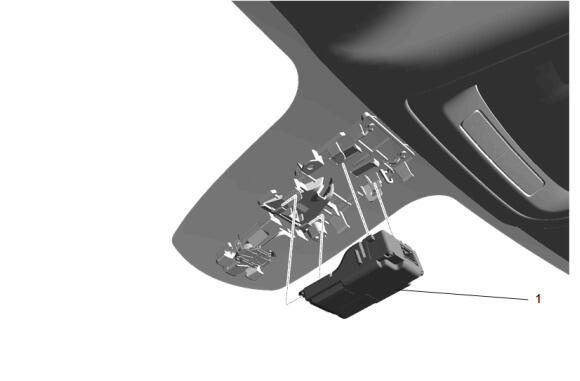

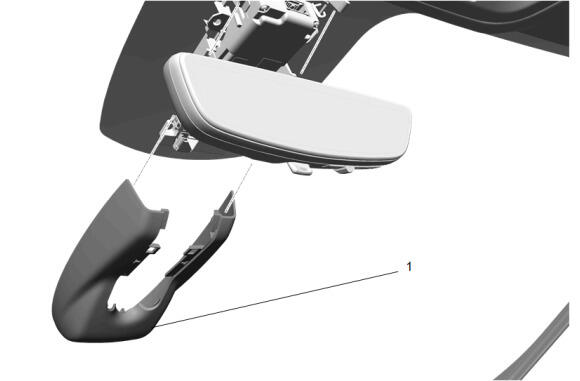

Windshield Multifunction Sensor Mount Bracket Cover(1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

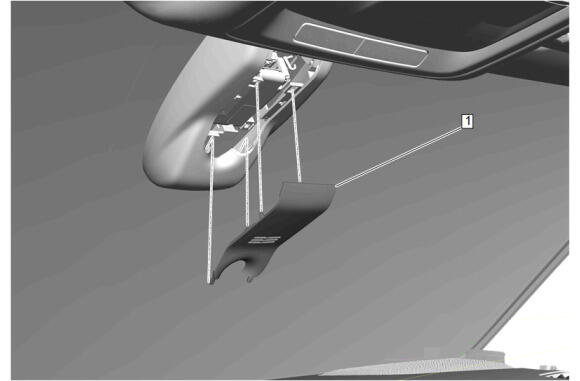

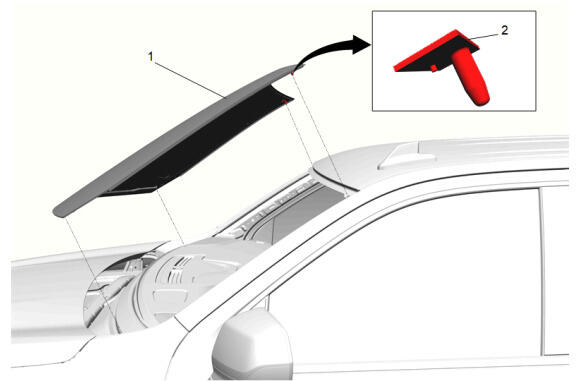

Windshield Multifunction Sensor Mount Bracket Cover Insert(1) - Install
Enable the SIR System. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

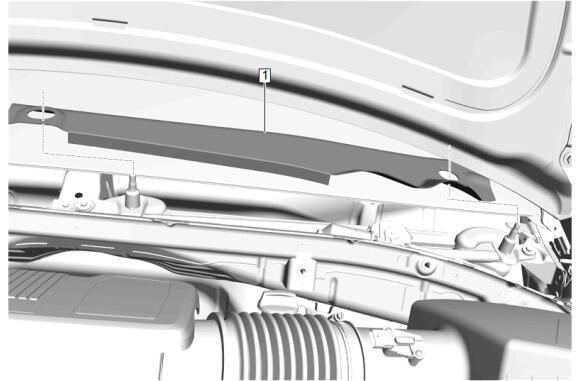

Windshield Wiper System Module Shield(1) - Install
Courtesy of GENERAL MOTORS COMPANY

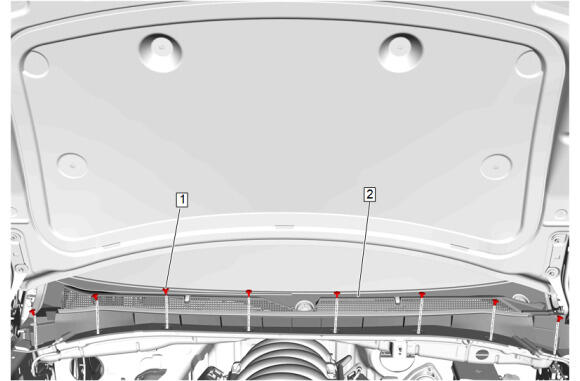

Air Inlet Grille Panel(2) - Install
Connect the windshield washer nozzle hose to the windshield washer pump hose.
Air Inlet Grille Panel Retainer(1) - Install [8x]
Courtesy of GENERAL MOTORS COMPANY

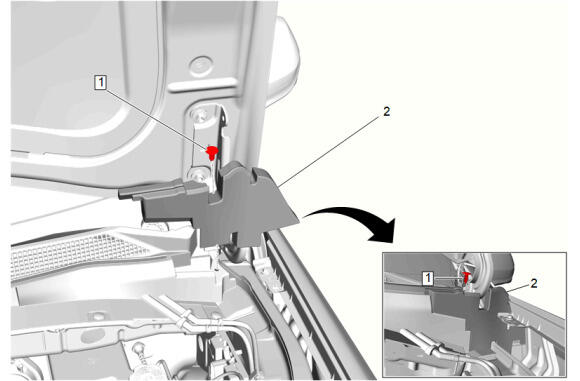

Hood Rear Outer Air Inlet Seal(2) - Install [2x]
Hood Rear Outer Air Inlet Seal Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

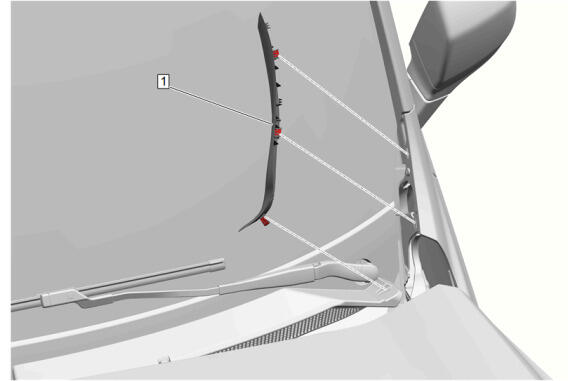

Air Inlet Grille Panel Extension(1) - Install [2x]
Remove the masking tape from the top edge of the service part.
Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
Courtesy of GENERAL MOTORS COMPANY

Clean the left and right side windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).

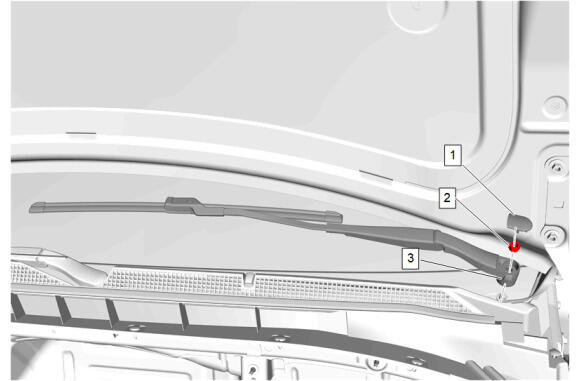

Windshield Wiper Arm(3) - Install [2x]
Windshield Wiper Arm Nut(2) - Install and tighten [2x] - Fastener Specifications
Windshield Wiper Arm Finish Cap(1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

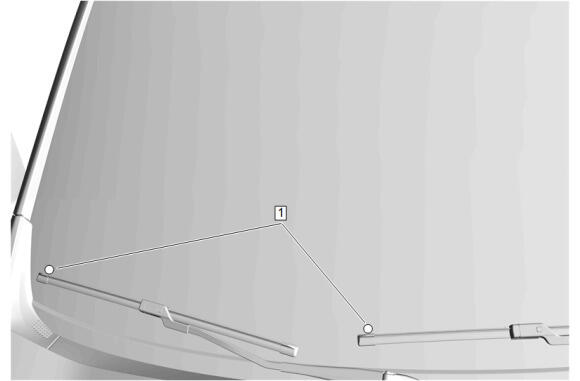

If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.
Lubricate the windshield with clean washer fluid.
Run the windshield wipers for two complete cycles then turn off the windshield wipers.
Ensure the windshield wipers are in the full park position.
