Installation Procedure

  1. Connect the electrical connector.
  2. GM5701289Courtesy of GENERAL MOTORS COMPANY

    Liftgate Window Latch (2) - Install

    3. CAUTION:

    Refer to Fastener Caution .

  3. Liftgate Latch Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

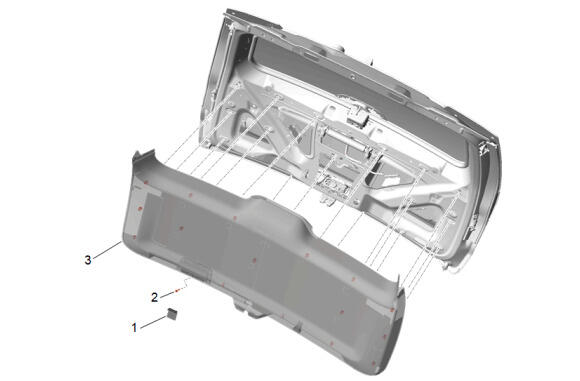

  4. GM5577873Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  5. Liftgate Lower Trim Finish Panel(3) - Install
  6. Liftgate Lower Trim Finish Panel Bolt(2) - Install and tighten - Fastener Specifications
  7. Rear Compartment Lid Inner Panel Trim Hole Plug(1) - Install

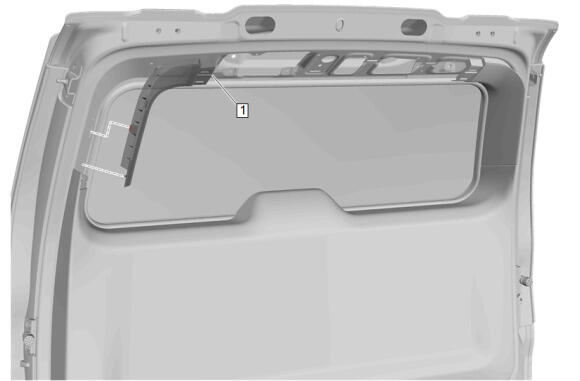

  8. GM5577872Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Side Trim Finish Panel(1) - Install [2x]

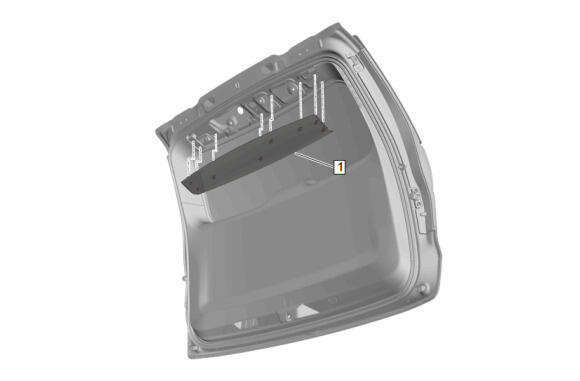

  9. GM5577870Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Center Trim Finish Panel(1) - Install

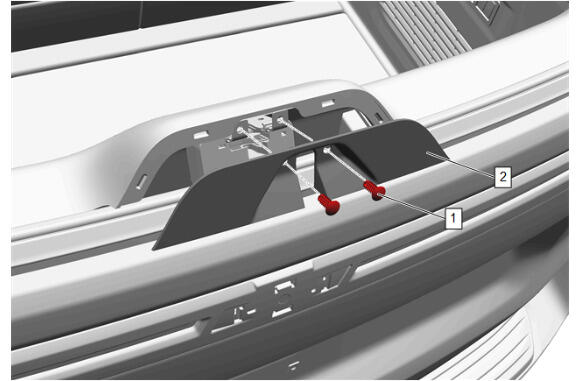

  10. GM5584398Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lower Trim Finish Panel Access Hole Cover(2) - Install

  11. Liftgate Trim Finish Panel Locator(1) - Install [2x]
  12. Close the liftgate window.
