Installation Procedure

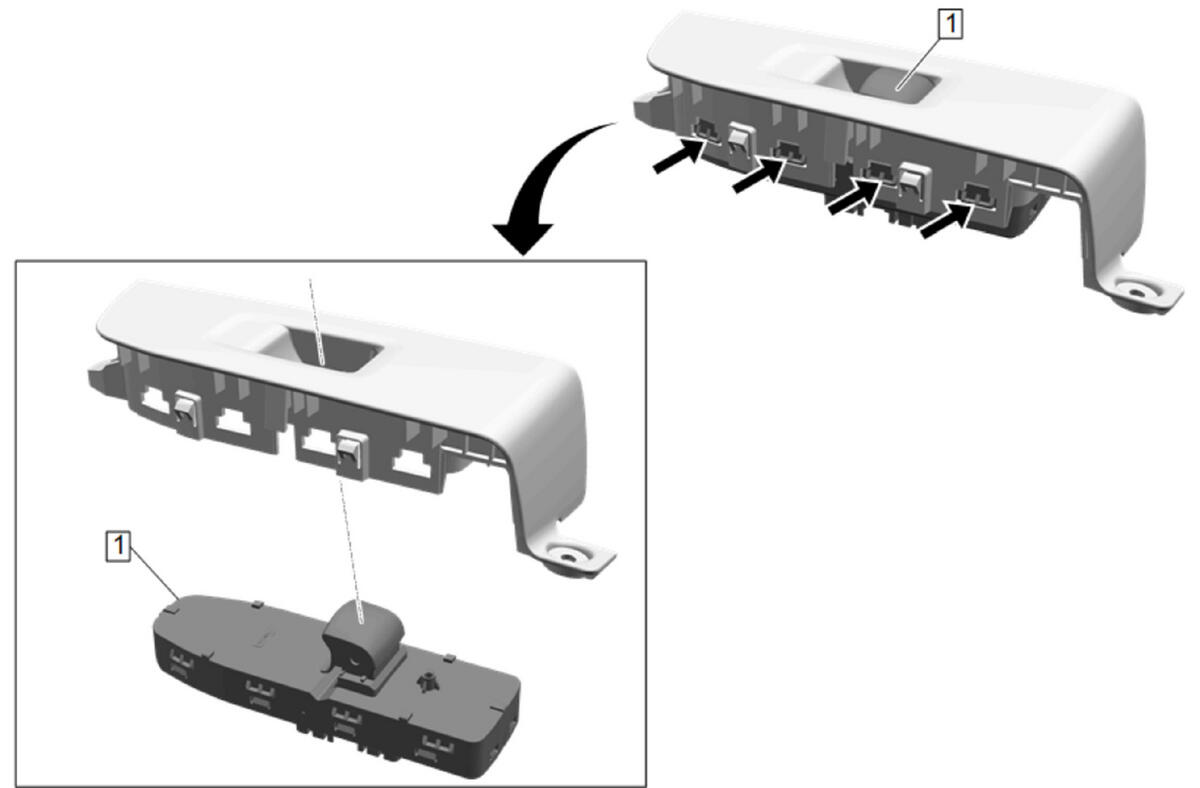

  1. GM5569569Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Switch - Right Side(1) - Install

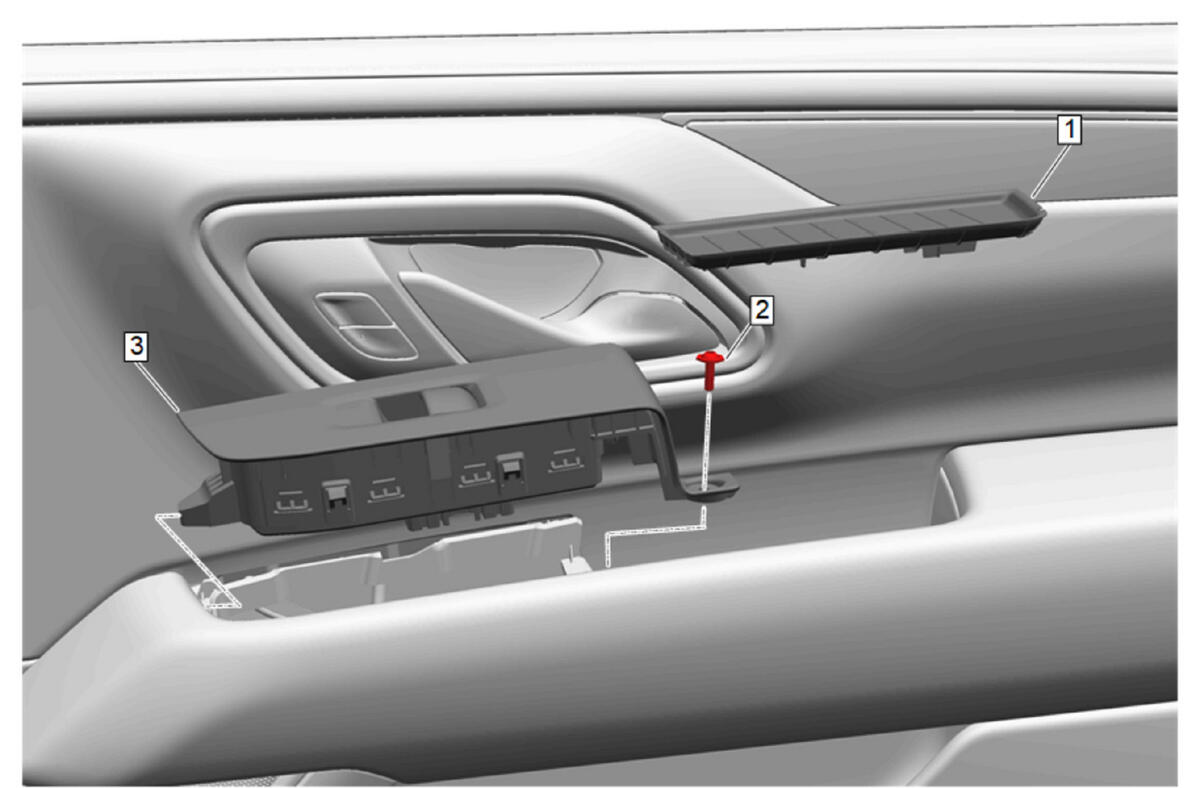

  2. GM5569546Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  3. Rotate the front side door accessory switch mount plate (3) up and forward to hook the front retaining feature.
  4. Front Side Door Accessory Switch Mount Plate - Passenger Side(3) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Front Side Door Trim Bolt(2) - Install and tighten - Fastener Specifications
  6. Front Side Door Armrest Pull Cup Bolt Cap(1) - Install
